LEDs
Name Status Indication
Power
On Power is on.
Flashing Power supply is abnormal.
Off Power is off or power supply is abnormal.
1000Mbps
On
A 1000Mbps device is connected to the corresponding port.
Flashing
Data is being transmitted or received.
Off
A 10/100Mbps device or no device is connected to the
corresponding port.
10/100Mbps
On
A 10/100Mbps device is connected to the corresponding port.
Flashing Data is being transmitted or received.
Off No device is connected to the corresponding port.
TL-SG108PE

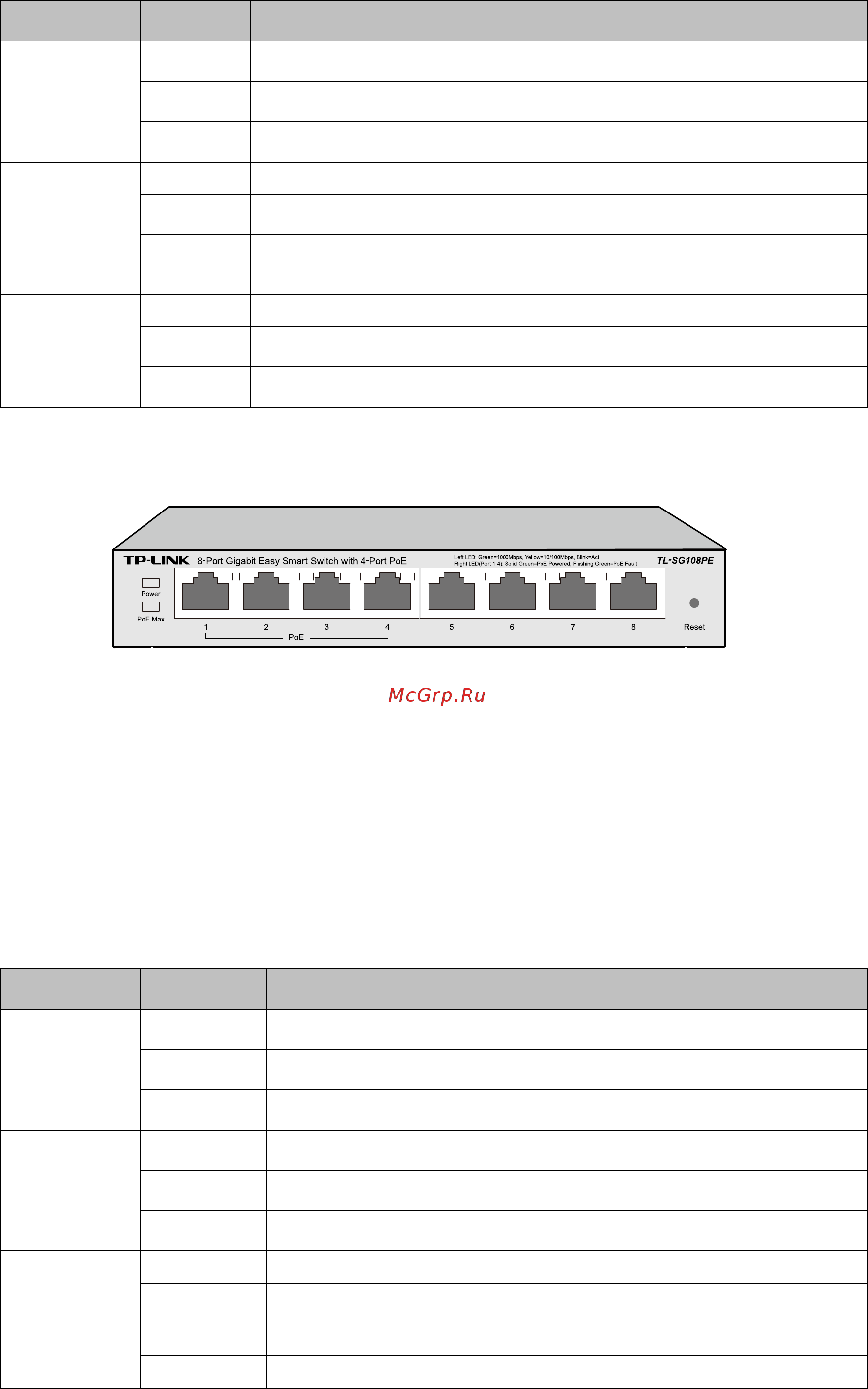

The front panel of TL-SG108PE is shown as Figure 2-3.
Figure 2-3 Front Panel of
TL-SG108PE
The following parts are located on the front panel of the switch:
Reset: With the switch powered on, press this button for five seconds or above to reset the
software setting back to factory default setting.
1000Mbps Ports: Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Link/Act LED (Left LED).For Port 1– 4, each of them
also has a PoE Status LED (Right LED).
LEDs
Name Status Indication
Power
On Power is on.
Flashing Power supply is abnormal.
Off Power is off or power supply is abnormal.
PoE Max
On The total power supply< 55W.
Flashing The total power supply≥ 55W.
Off The total power supply< 46W.
Link/Act
On(Green)
A 1000Mbps device is connected to the corresponding port.
On(Yellow)
A 10/100Mbps device is connected to the corresponding port.
Flashing
Data is being transmitted or received.
Off
No device is connected to the corresponding port.
5
