Rigol DP821A [39/146] To rack mount the instrument

Chapter 1 Quick Start RIGOL

DP800A User’s Guide 1-21

To Rack Mount the Instrument

To install this instrument into a standard 19 inches cabinet, please order rack mount

kit RM-1-DP800 (for installing single instrument) or RM-2- DP800 (for installing dual

instruments) and correctly install them according to this section.

To Install a Single Instrument

Part List

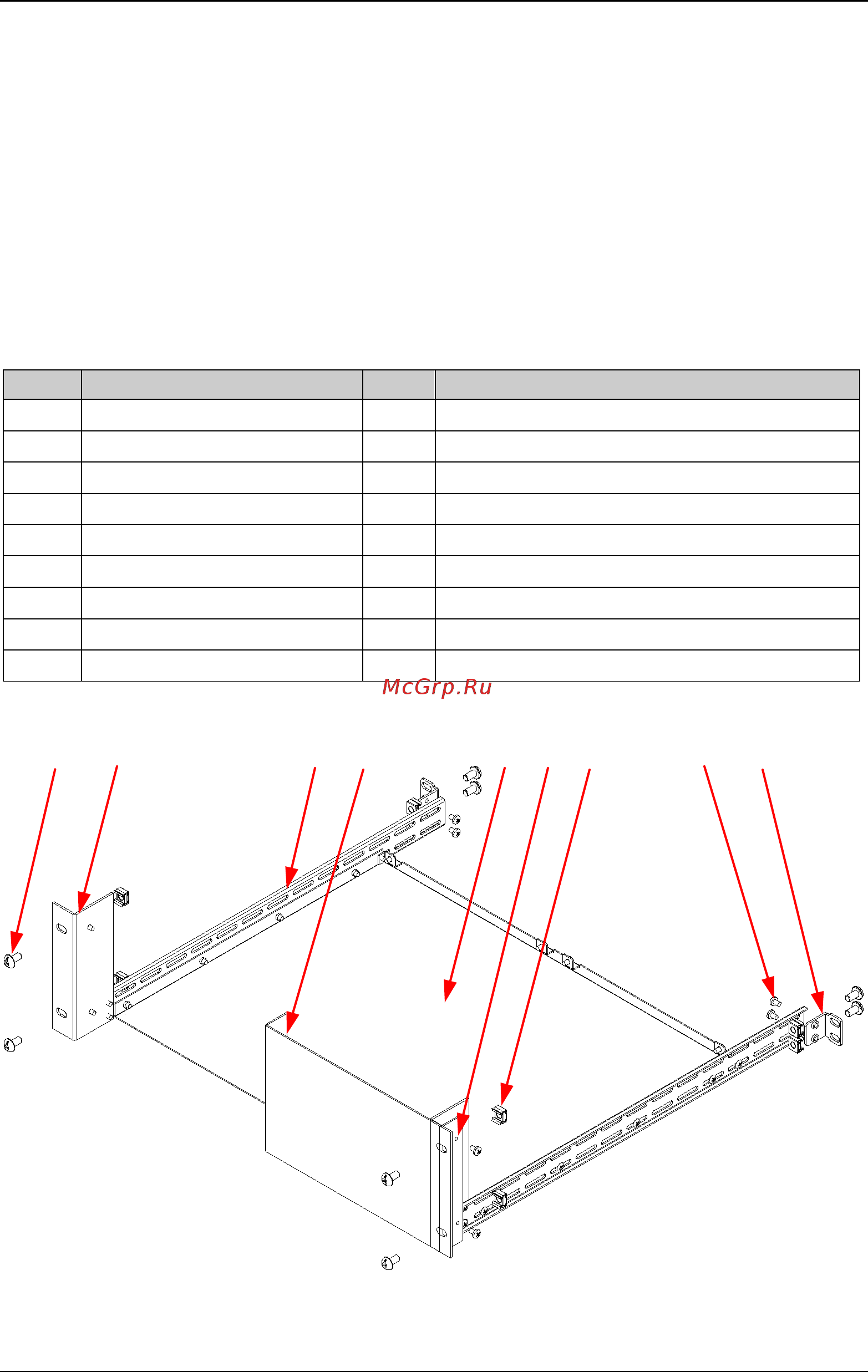

Table 1-5 Rack mount kit (RM-1-DP800) part list

No.

Name

Qty.

Description

①

Rack Support Shelf

②

Front Filler Panel

③

Rack Left Fixing Part

④

Rack Right Fixing Part

⑤

Rack Rail

⑥

Side Beam Fixing Part

⑦

M4 Screw

M4X6 Phil-Slot Pan Head Screw

⑧

M6 Screw

M6×16 Phil-Slot Pan Head Screw

⑨

M6 Nut

M6×5 Lock Blade Square Nut

(a)

⑧

③

⑤

②

①

④

⑨

⑦

⑥
