Rigol DP821A [48/146] Installation tool

RIGOL Chapter 1 Quick Start

1-30 DP800A User’s Guide

⑥ ⑦ ⑧

(b)

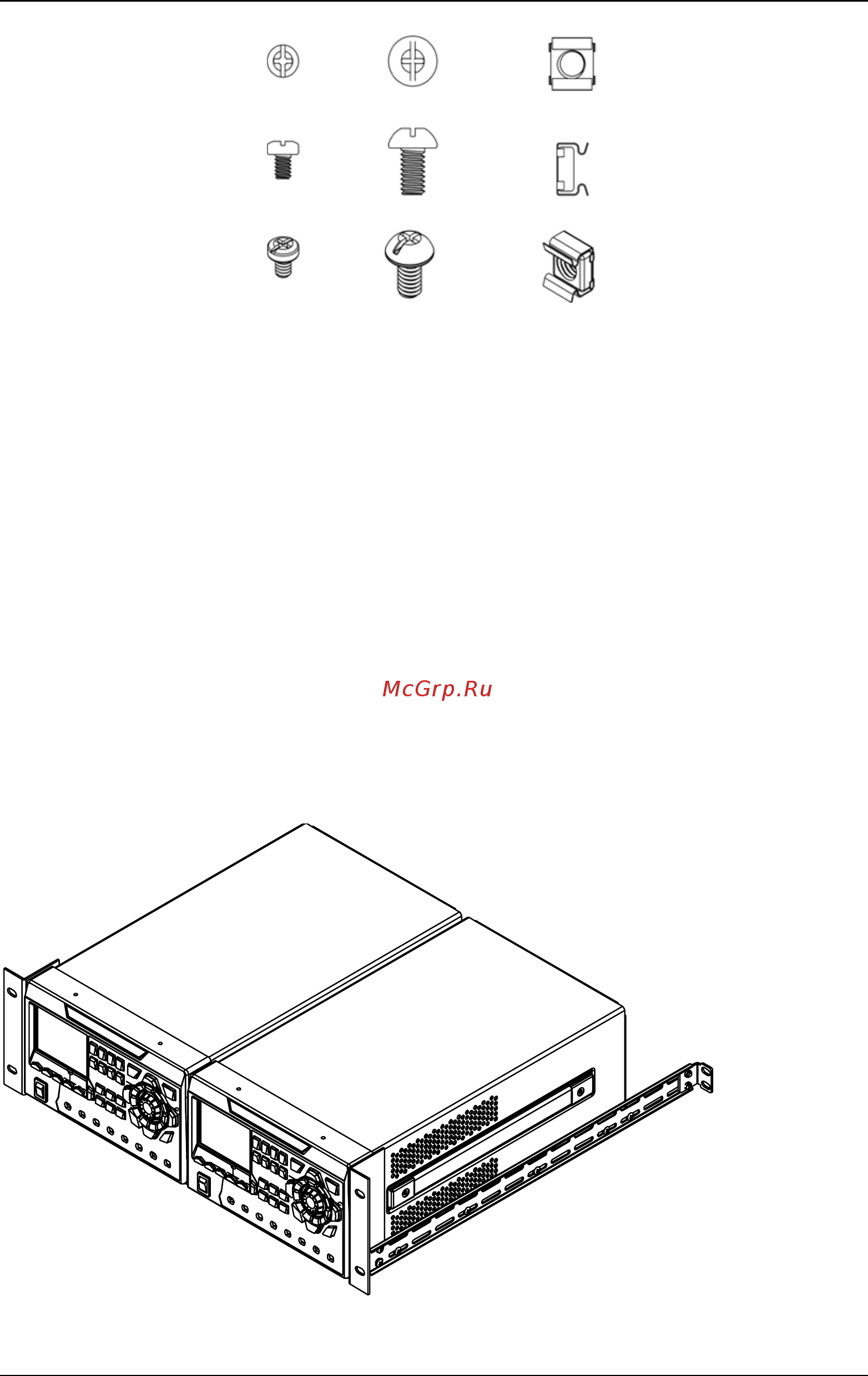

Figure 1-9 Rack Mount Kit (RM-2-DP800) Parts

Installation Tool

PH2 Phillips screwdriver is recommended.

Installation Space

The machine cabinet should fulfill the following requirements.

 It should be a standard 19 inch machine cabinet;

 At least 4U (177.8 mm) space should be provided by the machine cabinet;

 The depth inside the machine cabinet should not be less than 463.75mm.

The rack-mounted instruments are as shown in the figure below.
