RIGOL Chapter 1 Quick Start

1-34 DP800A User’s Guide

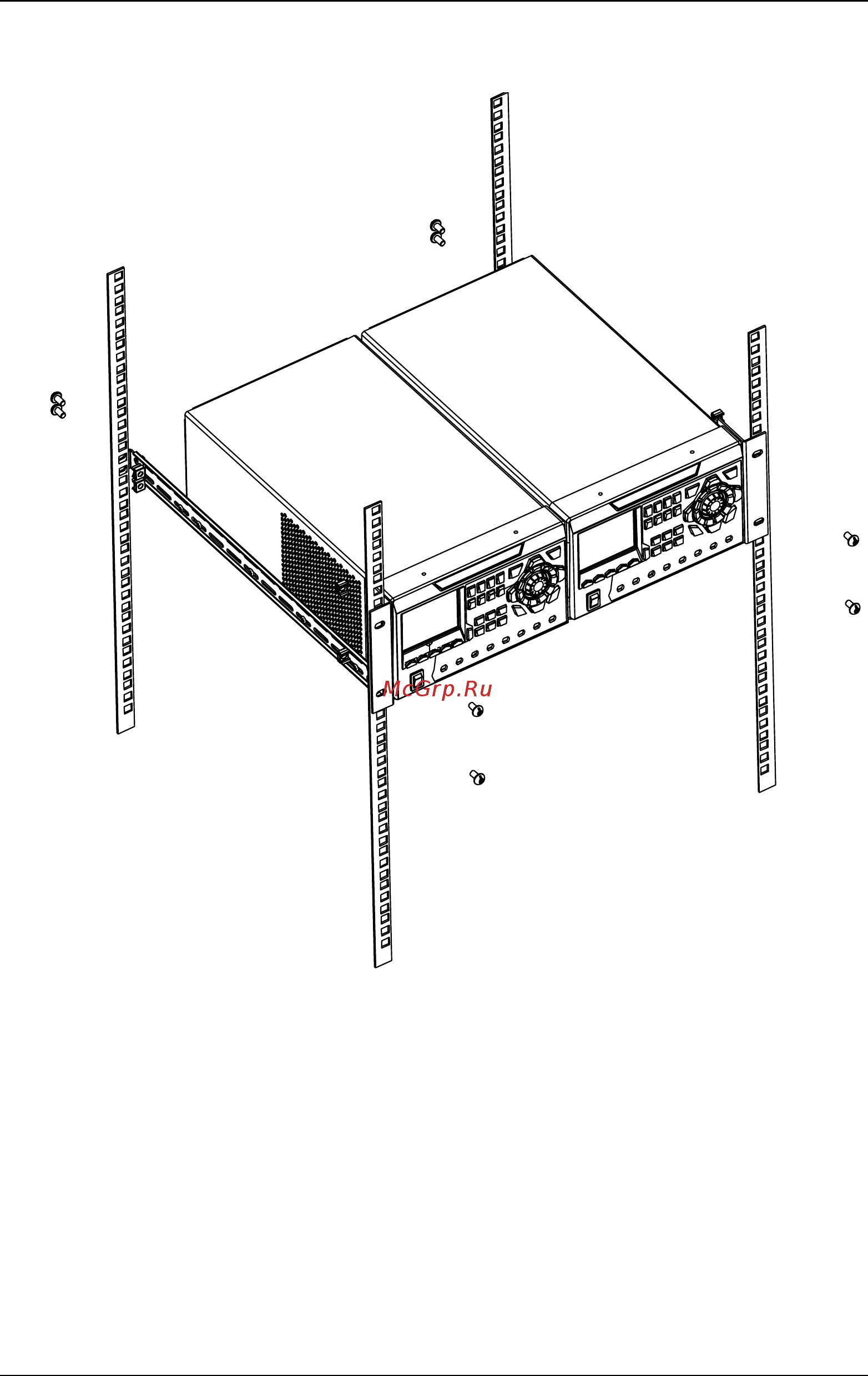

8. Install the rack mounted with the instruments into a standard 19 inch machine

cabinet using eight M6 screws and eight M6 nuts.
