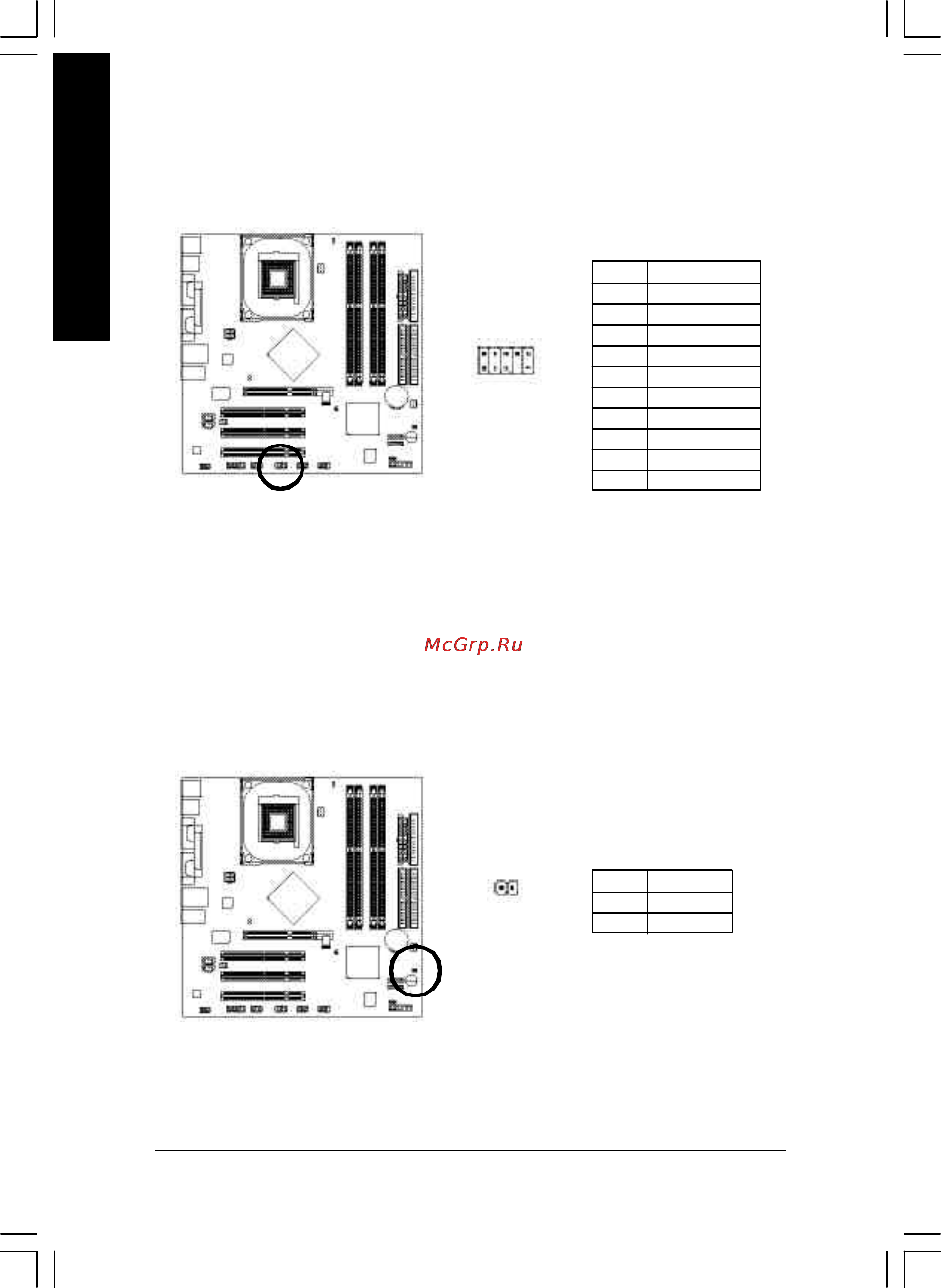

- 30 -GA-8IP900MK Motherboard
English
20) INFO_LINK
This connector allows y ou to connect some external devices to provide you extra function.
Pin No. Definition
1 SMBCLK
2 VCC
3 SMBDATA
4 GPIO
5 GND
6 GND
7 No Pin
8 NC
9 +12V
10 +12V
1
102
9
21) CI (CAS E OPEN)
This 2-pin connector allows your system to enable or disable the "Case Open" item in BIOS, if the
system case begin remove.
Pin No. Definition
1 Signal
2 GND
1
