- 15 - Hardware Installation Process
English
Step 4: Connect ribbon cables, cabinet wires and
power supply

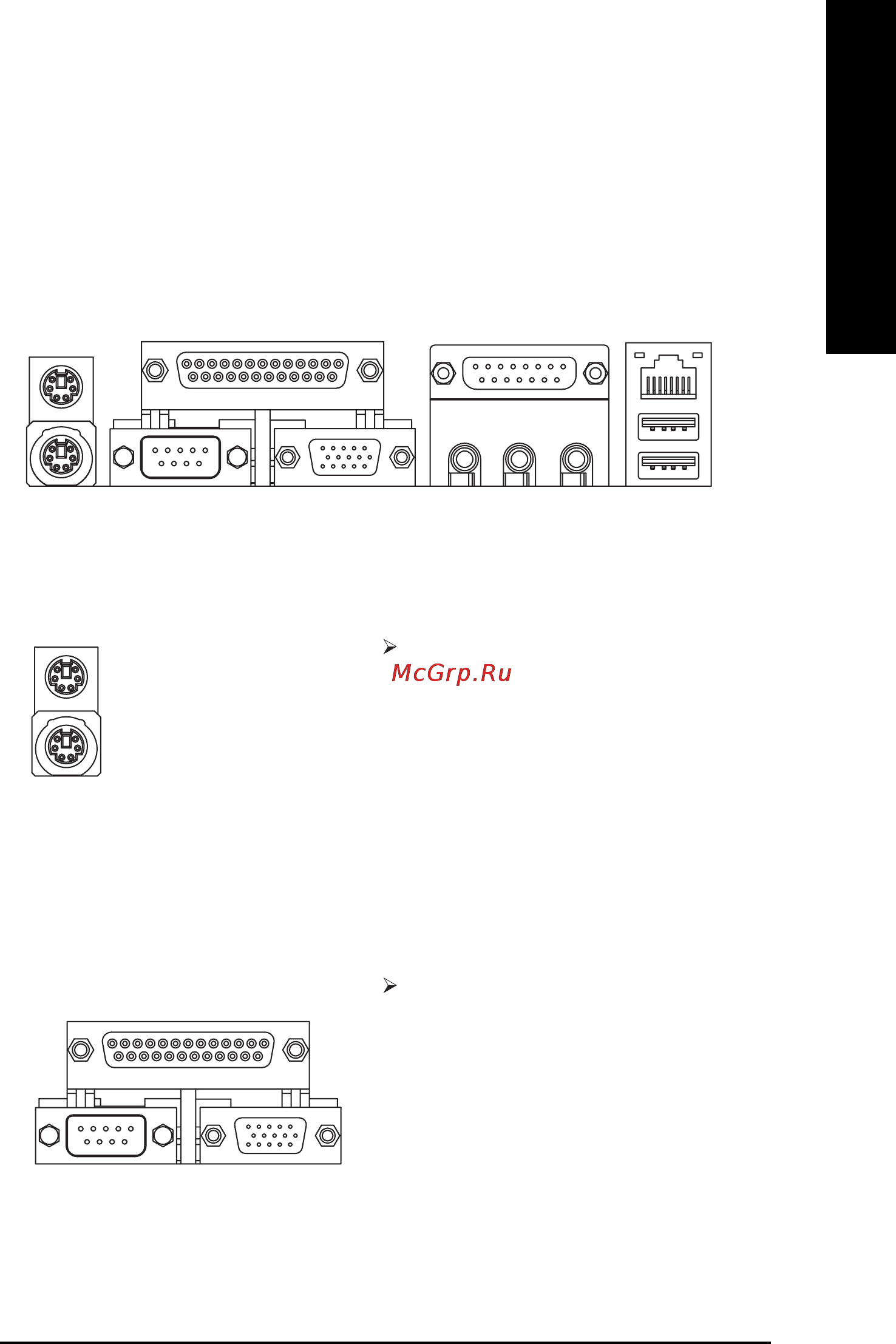

Step 4-1: I/O Back Panel Introduction
X
Y
Z
[
\
XX
XX
X PS/2 Keyboard and PS/2 Mouse Connector
This connector supports standard PS/2
keyboard and PS/2 mouse.
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
Y Parallel Port, Serial Port and VGA port (LPT / COMA / VGA)
This connector supports 1 standard COM port,
1 Parallel port and 1 VGA port. Device like printer
can be connected to Parallel port; mouse and
modem etc. can be connected to Serial port.
Parallel Port
(25 pin Female)
COMA VGA
Serial Port
(9 pin Male)
VGA Port
(15 pin Female)
