- 41 - BIOS Setup

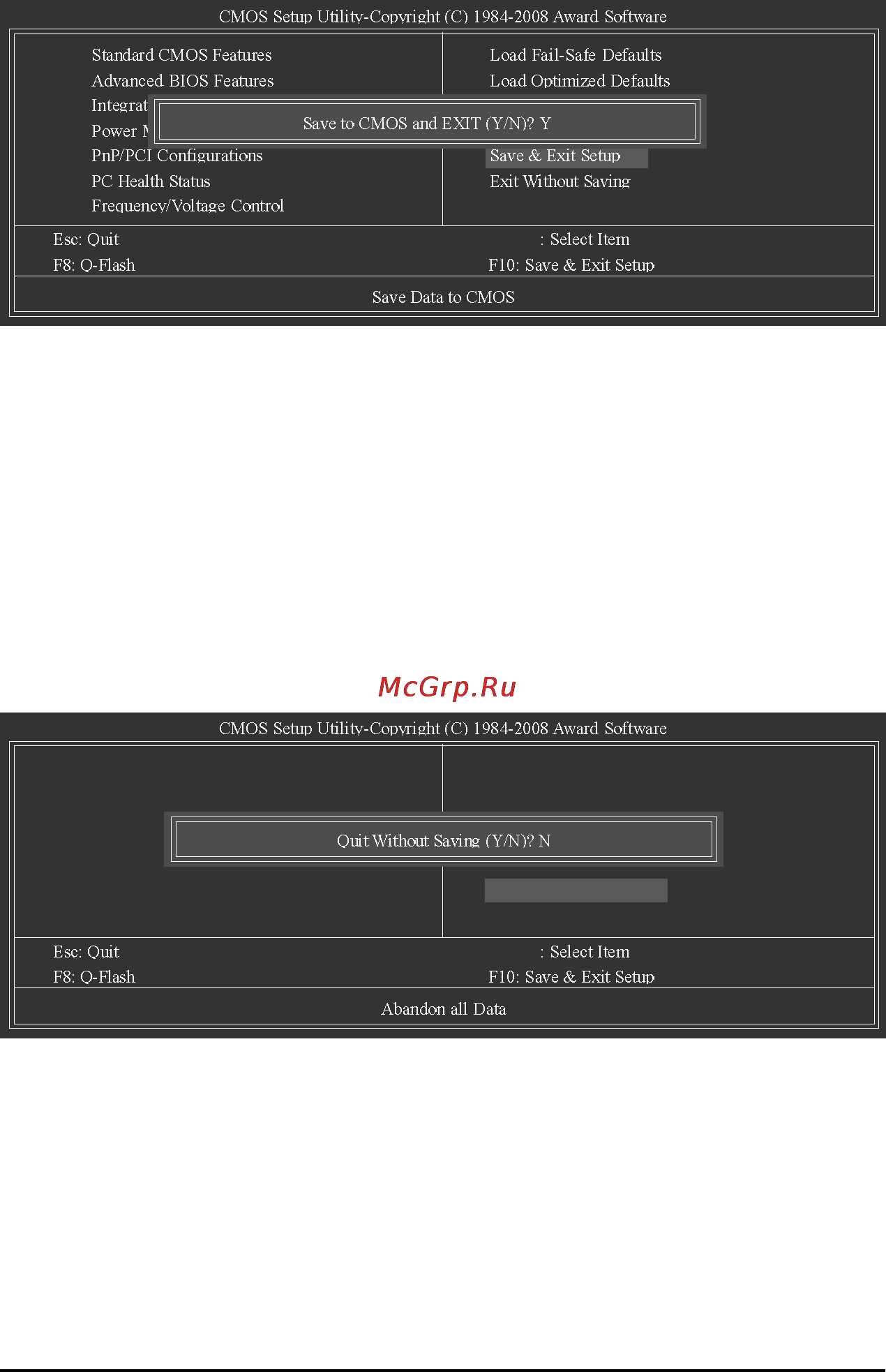

2-13 Save & Exit Setup
2-14 Exit Without Saving
Press <Enter> on this item and press the <Y> key. This saves the changes to the CMOS and exits the
BIOS Setup program. Press <N> or <Esc> to return to the BIOS Setup Main Menu.
Press <Enter> on this item and press the <Y> key. This exits the BIOS Setup without saving the
changes made in BIOS Setup to the CMOS. Press <N> or <Esc> to return to the BIOS Setup Main Menu.
`
`
`
`
`
`
`
KLJI
` Standard CMOS Feature s
` Advanced BIOS Feature s
` Integrated Peripherals
` Power Manage ment Setup
` PnP/PCI Configurations
` PC Health Status
` Frequency/Voltage Control
KLJI
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
