Gigabyte GA-GC230D (rev. 1.0) [44/72] 2 software applications

GA-GC230D Motherboard - 44 -

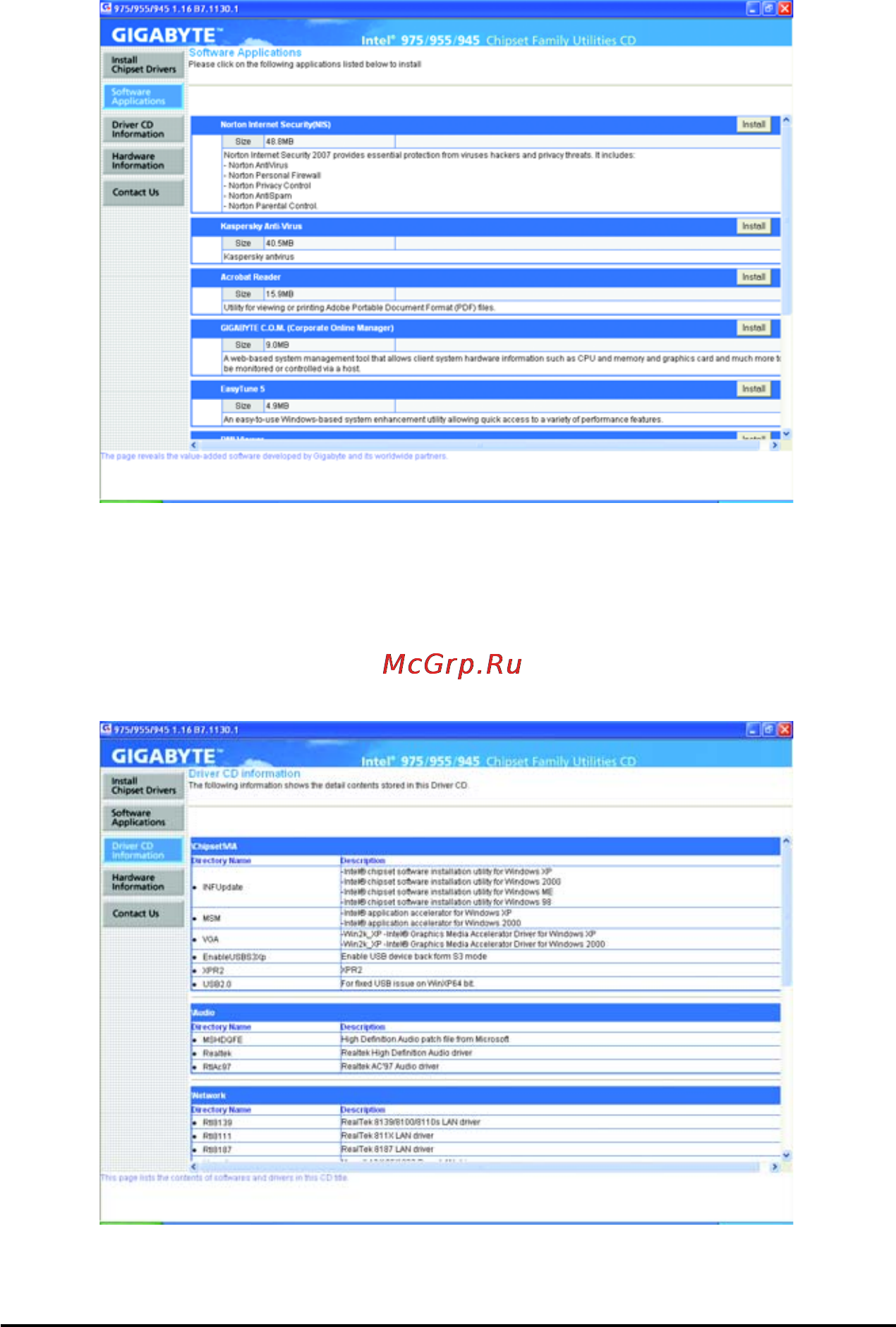

3-2 Software Applications

This page displays all the tools and applications that GIGABYTE develops and some free software. You

may press the Install button following an item to install it.

3-3 Driver CD Information

This page provides information about the drivers, applications and tools in this driver disk.
