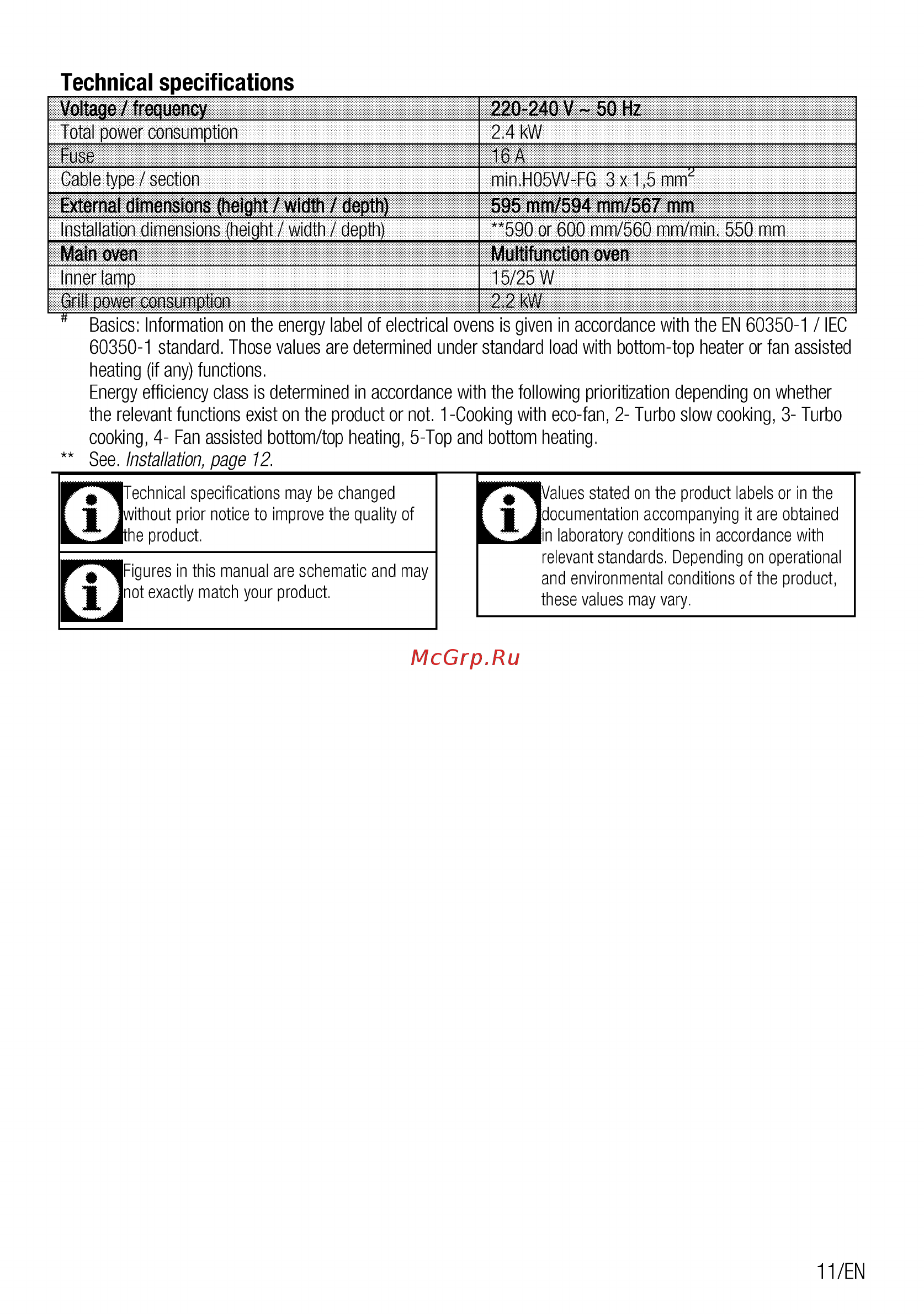

Technical specifications Voltage frequency Total power consumption 220 240 V 50 Hz 2 4 kW Fuse 16A Cable type section min H05W FG 3x1 5 mm2 External dimensions height width depth 595 mm 594 mm 567 mm Installation dimensions height width depth 590 or 600 mm 560 mm min 550 mm Main oven Multifunctionoven Inner lamp 15 25W Gril power consumption 22 kW Basics Information on the energy label of electrical ovens is given in accordance with the EN 60350 1 IEC 60350 1 standard Those values are determined under standard load with bottom top heater or fan assisted heating if any functions Energy efficiency class is determined in accordance with the following prioritization depending on whether the relevant functions exist on the product or not 1 Cooking with eco fan 2 Turbo slow cooking 3 Turbo cooking 4 Fan assisted bottom top heating 5 Top and bottom heating See Installation page 12 JF IjTechnical specifications may be changed 1 jwithout prior notice to improve the quality of Z the product jP J Figure in this manual are schematic and may k1 matC y0Ur jF alues stated on the product labels or in the I documentation accompanying it are obtained Z in laboratory conditions in accordance with relevant standards Depending on operational and environmental conditions of the product these values may vary 11ÆN
