GA-8I865PE775-G-RH (rev. 3.0) Motherboard - 50 -
English

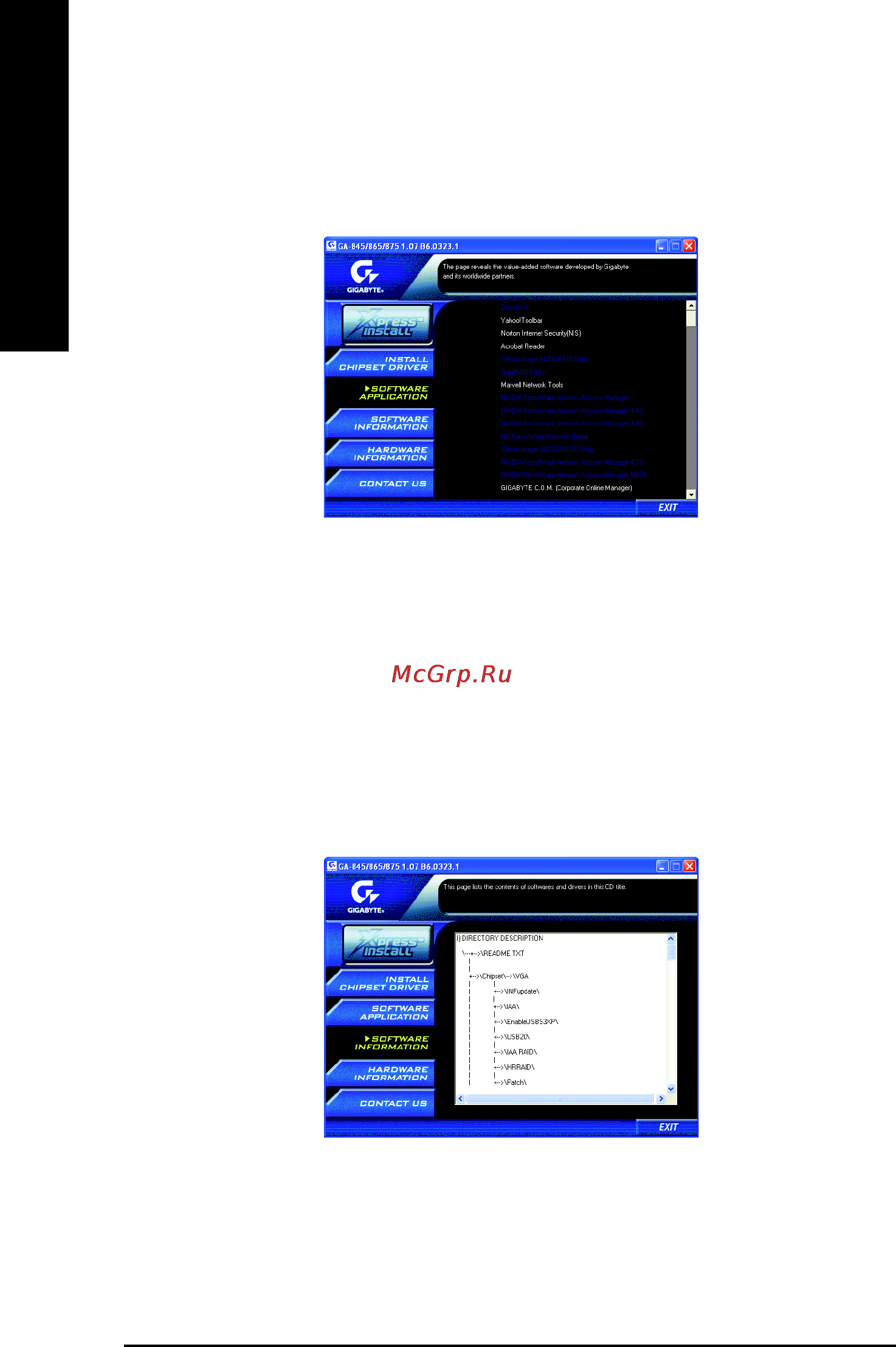

3-2 Software Applications
This page displays all the tools that Gigabyte developed and some free software. You can click an item
to install it.
3-3 Driver CD Information
This page lists the contents of software and drivers in this CD-title.
