V58 Guitar Amplifier

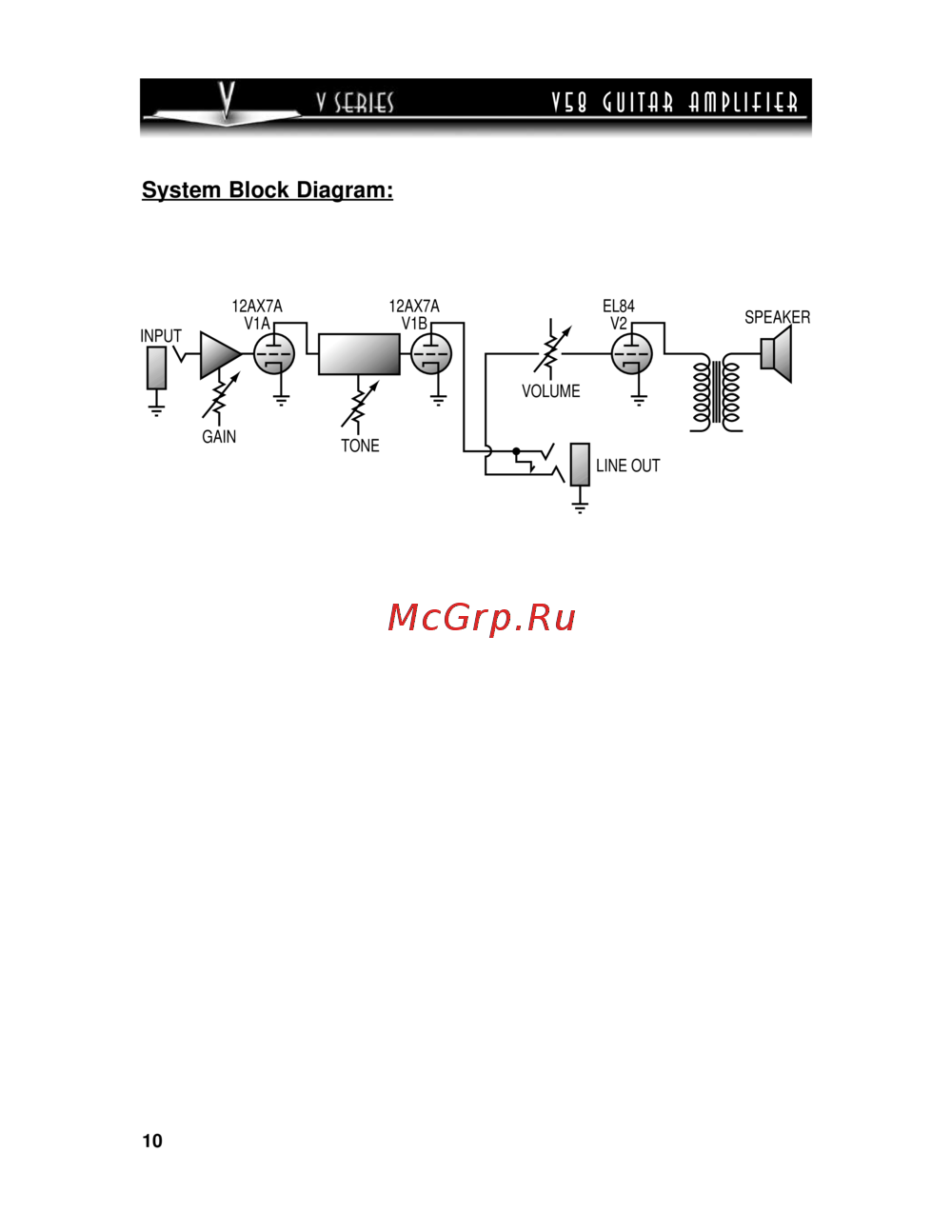

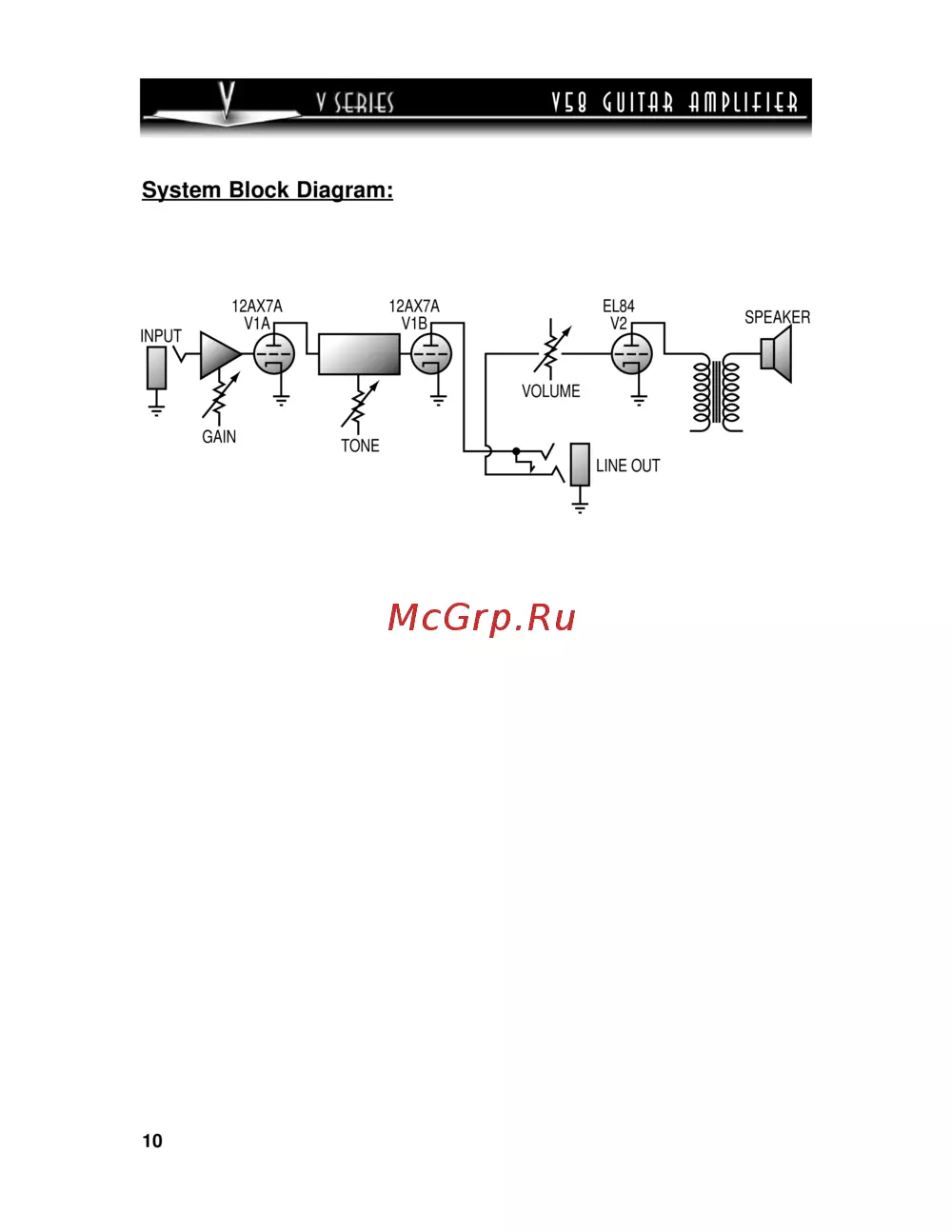

System Block Diagram:
INPUT
GAIN
VOLUME
TONE
SPEAKER
LINE OUT
12AX7A
V1A
12AX7A
V1B
EL84
V2
