V58 Guitar Amplifier

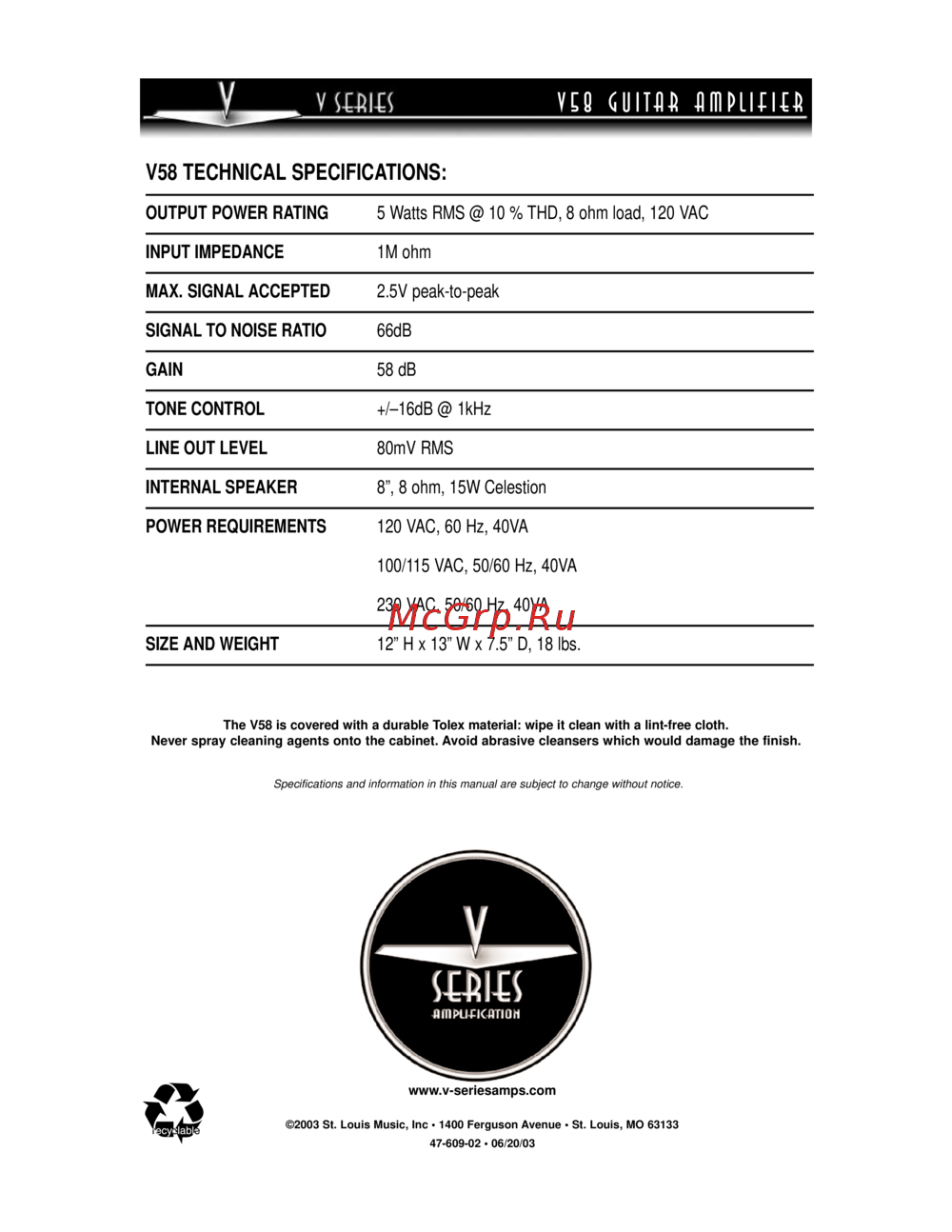

V58 TECHNICAL SPECIFICATIONS:
OUTPUT POWER RATING 5 Watts RMS @ 10 % THD, 8 ohm load, 120 VAC
INPUT IMPEDANCE 1M ohm
MAX. SIGNAL ACCEPTED 2.5V peak-to-peak
SIGNAL TO NOISE RATIO 66dB
GAIN 58 dB
TONE CONTROL +/–16dB @ 1kHz
LINE OUT LEVEL 80mV RMS
INTERNAL SPEAKER 8”, 8 ohm, 15W Celestion
POWER REQUIREMENTS 120 VAC, 60 Hz, 40VA
100/115 VAC, 50/60 Hz, 40VA
230 VAC, 50/60 Hz, 40VA
SIZE AND WEIGHT 12” H x 13” W x 7.5” D, 18 lbs.
The V58 is covered with a durable Tolex material: wipe it clean with a lint-free cloth.
Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
Specifications and information in this manual are subject to change without notice.
www.v-seriesamps.com
©2003 St. Louis Music, Inc • 1400 Ferguson Avenue • St. Louis, MO 63133
47-609-02 • 06/20/03
