ID Card Printer – User Manual

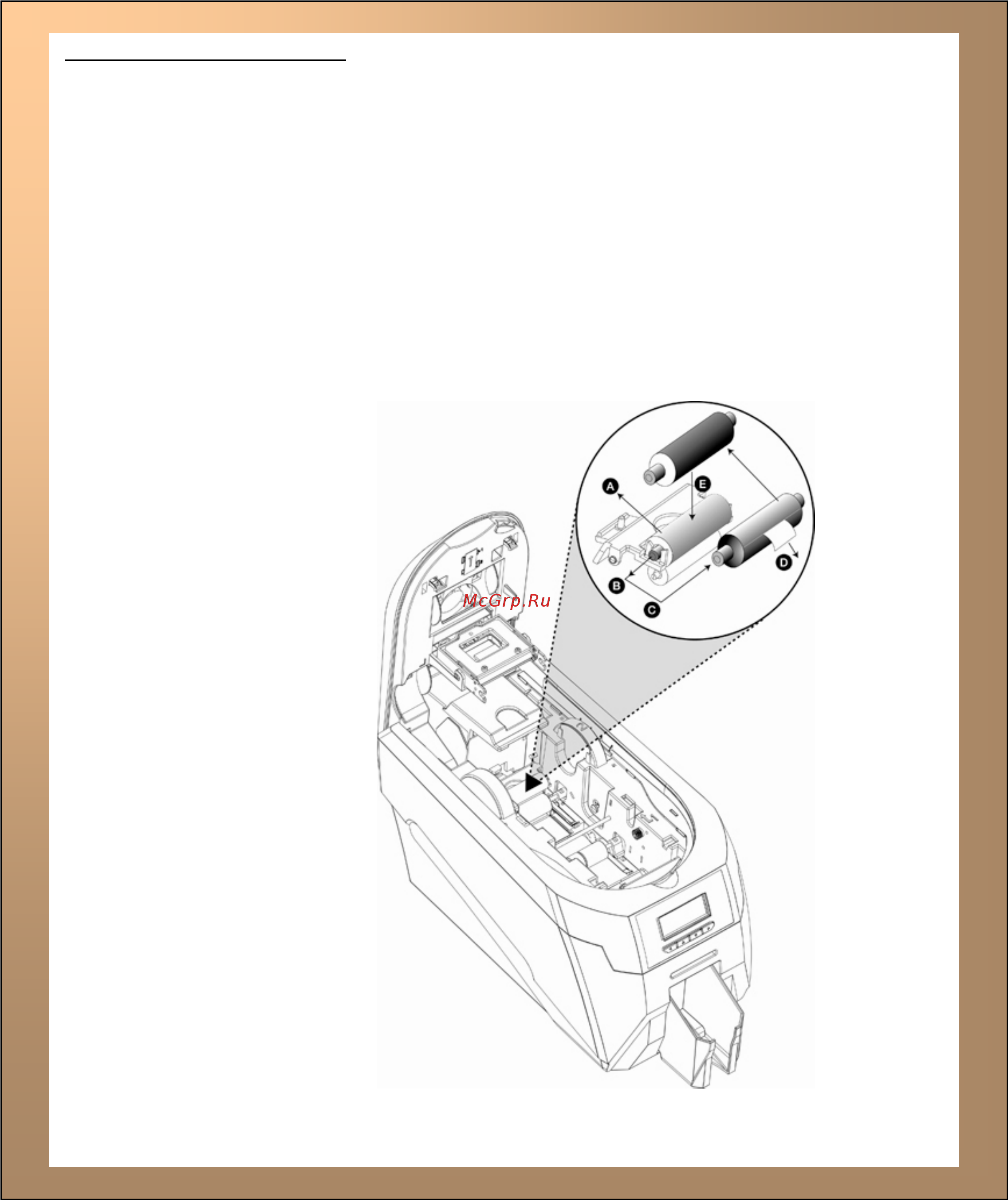

Replacing the cleaning roller
A new cleaning roller is supplied with every new dye film roll.
–
Open the printer and remove the used dye film
,
then:-
Pull out the
used cleaning roller.
(This is the blue roller positioned behind and below the rear dye-film spool).
Remove
the metal bar from the centre of this cleaning roller.
Slide the metal
bar into the new cleaning roller.
. Peel off the white protective layer carefully to reveal tacky
surface.
Place th
e new cleaning roller into printer.
A.
B.
C.
D
E.
ID Card Printer – User Manual
- 23 -
