5.2.2 Picture record

Set the picture capture parameter. First start, system will set the time to 24 hours

It can be set in 【main menu】> 【record function】> 【picture record】.

Label:Make the TF to partition, When the storage of capture picture is near to 1G, the system begin to capture picture.

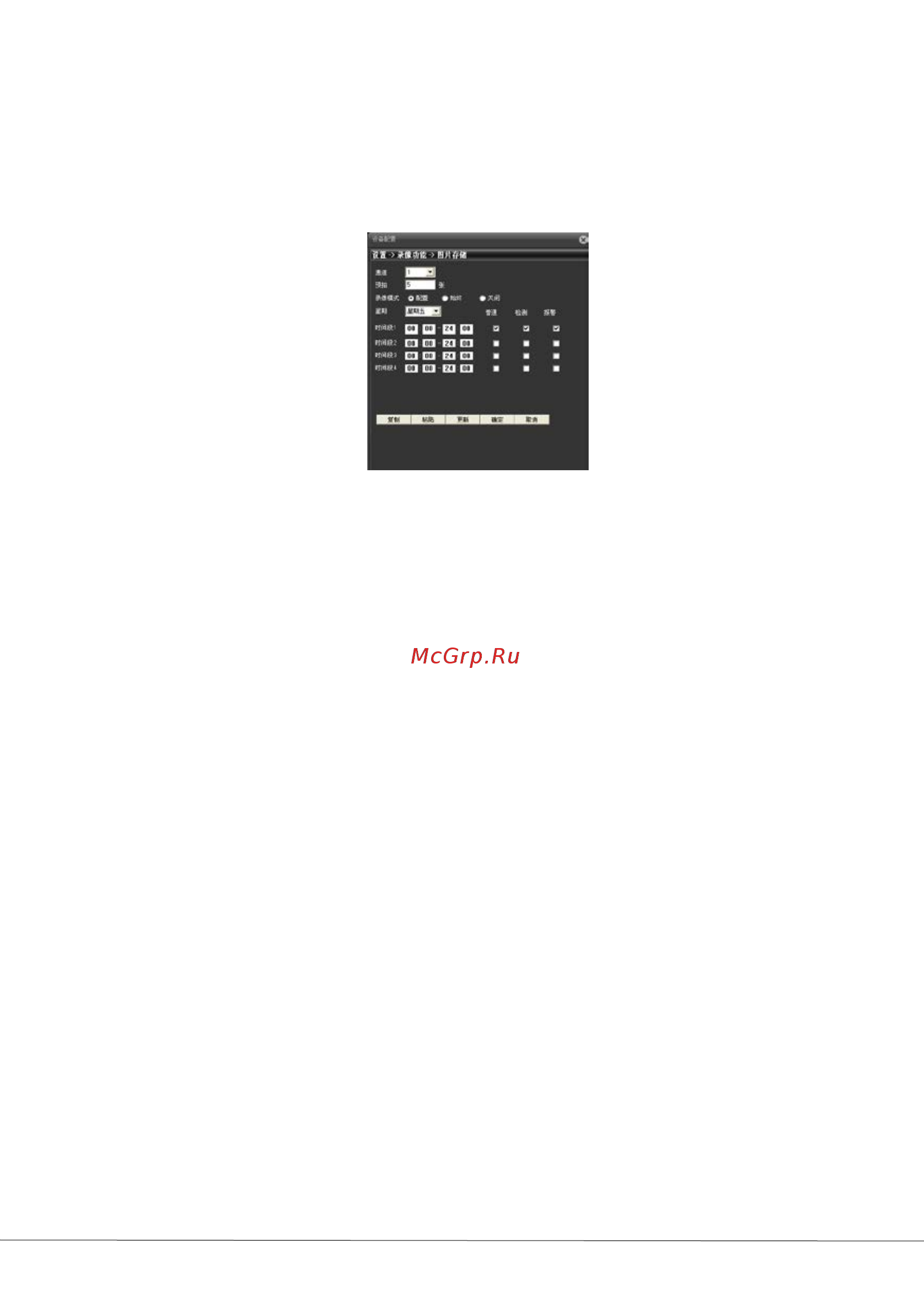

Dig. 5.2 picture capture

【pre-play】quantities of pre-play is 1-30 pcs, default is 5 pcs

【record mode】set the record mode.

Setting: depends on type of record and record time to capture picture.

Consistent: Choose “consistent”button, the relevant channel will start to capture picture.

Close: Choose “close”button, the relevant channel will stop to capture

【time】 set the record time, the record only work at this time

【record type】common, check, and alarm

Common: It is only start to capture at the setting time

Check: At the setting time, the alarm enable by “video privacy” and “ video lose”, it is begin to capture picture .

Alarm: At the setting time, the external alarm enable and that capture function is open, it can capture picture.

Label: more detail please refer to 5.3 “ alarm function”

5.3 Alarm function

Alarm including : video privacy, video lose, alarm input, alarm output, error fix.
