Zkteco PL-852D23F-AM [23/42] Network settings

5.4.3 Network settings

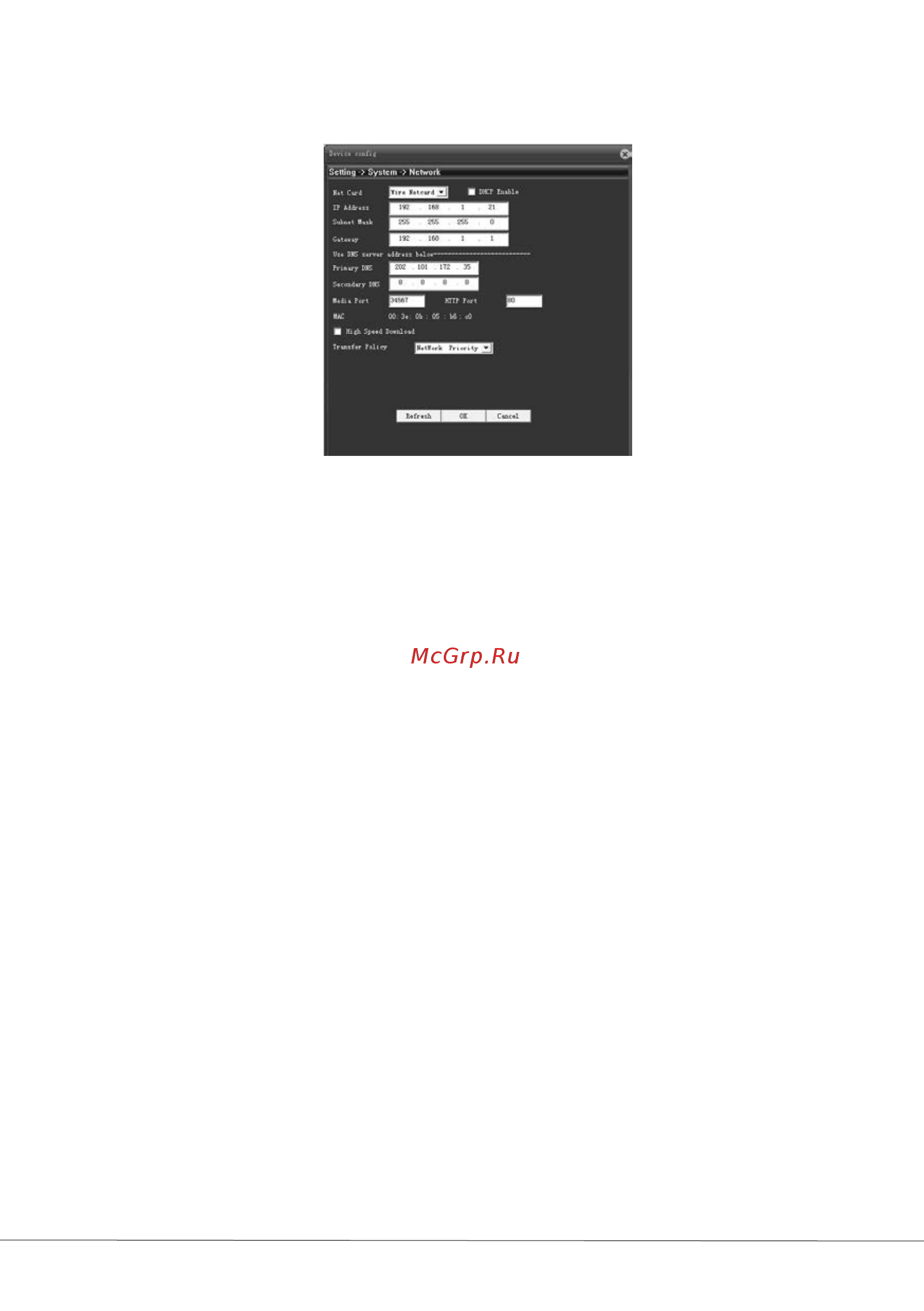

Dig. 5.11 network settings

【Network Card】can choose wired type;

【Automatically obtain an IP address】automatically obtain IP functionality (not recommended);

Note: The DHCP server is preinstalled.

【IP address】Set the IP address of the default IP address: 192.168.1.10;

【Subnet mask】Set the subnet mask, default subnet mask is: 255.255.255.0;

【Default Gateway】 Set the default gateway, the default default gateway: 192.168.1.1;

【DNS Settings】DNS server for the domain name resolves to an IP address, which is governed by your network provider, set the address

need to restart to take effect;

【TCP port】 default is 34567;

【HTTP port】The default HTTP port is 80;

【High speed download】 High speed download

【Network transmission strategy】There are three strategies: adaptation, quality priority, fluency priority, network transmission will adjust

the code stream according to the settings automatically, adaptation will compromise between image quality and fluency, take fluency

into account on conditions of not causing great influence to picture. Fluency precedence and adaptive need to enable the Extra Stream

is valid, if Extra Stream is not enabled, then the image quality precedence be adjusted according to the network conditions.

5.4.4 Network Services

To configure for advanced networking features, select the network service option and double-click to configure the parameters.
