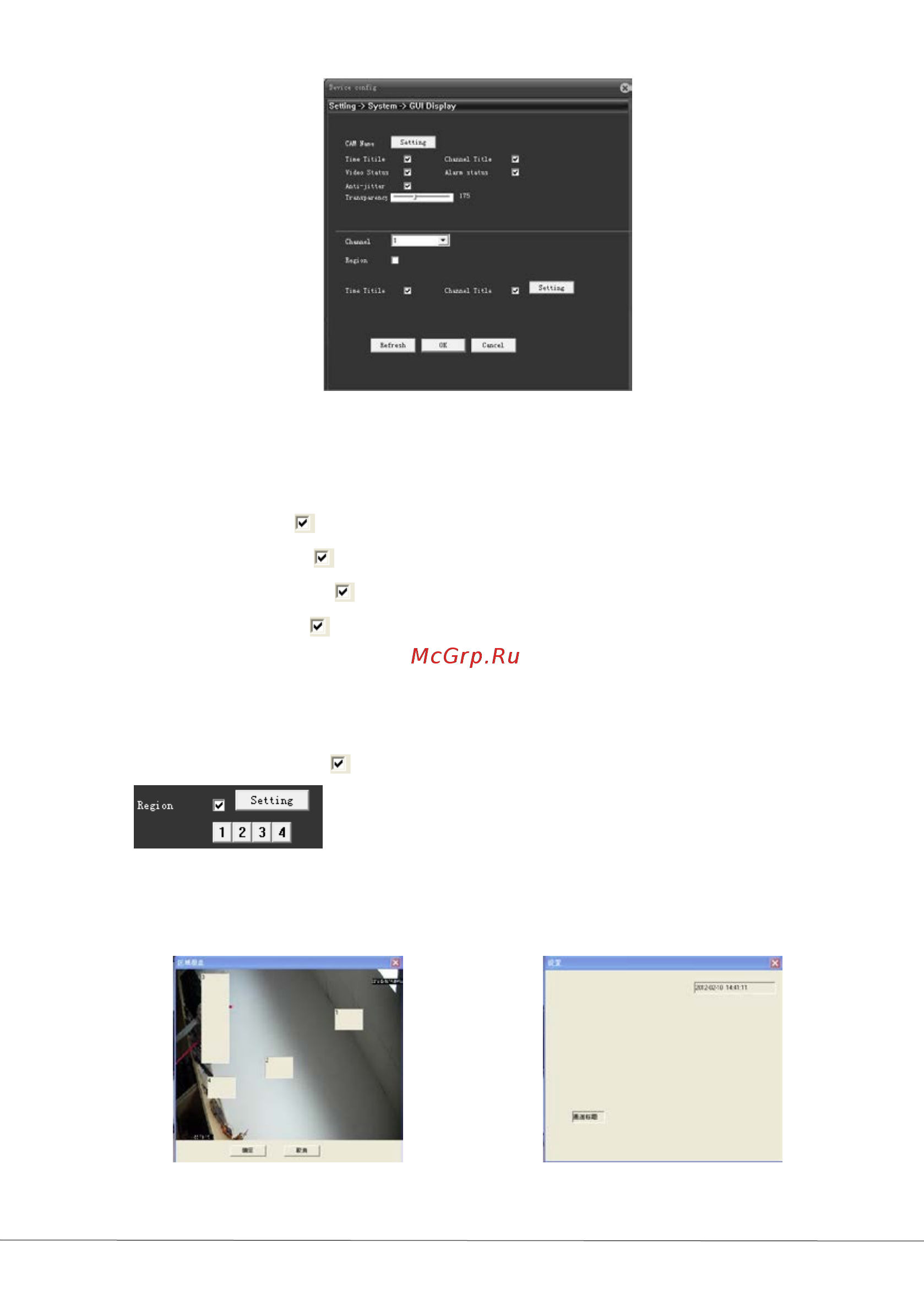

Dig. 5.24 GUI Display

【Channel name】Click the channel Setting button, enter the channel name menu, you can modify the name of the channel (maximum

support 16 characters, 25 English characters);

【Time Title】Tick reverse display

means selected, the monitor screen displays the system date and time;

【Channel Title】Tick reverse display

means selected, the monitor screen display system channel number;

【Recording status】Tick reverse display

means selected, the monitor screen video display system status;

【Alarm status】Tick reverse display

means selected, the monitor screen display system alarm status;

【Transparency】 Choose the background image transparency range of 128 to 255;

【Resolution】setting display resolution;

【Channel】Choose the set code output channel number;

【 Area Cover 】 Tick reverse display

means selected, select the number of coverage areas button, click the Settings

button

Access Into the corresponding channel screen, the user can select any size area covered mouse (the area covered, the output of the

video as a black box);

【Time Title】and【Channel time】set the time channel and title title whether to display the channel title and display position.

Dig. 5.25 Setting regional coverage Dig. 5.26 Channel and time of title setting
