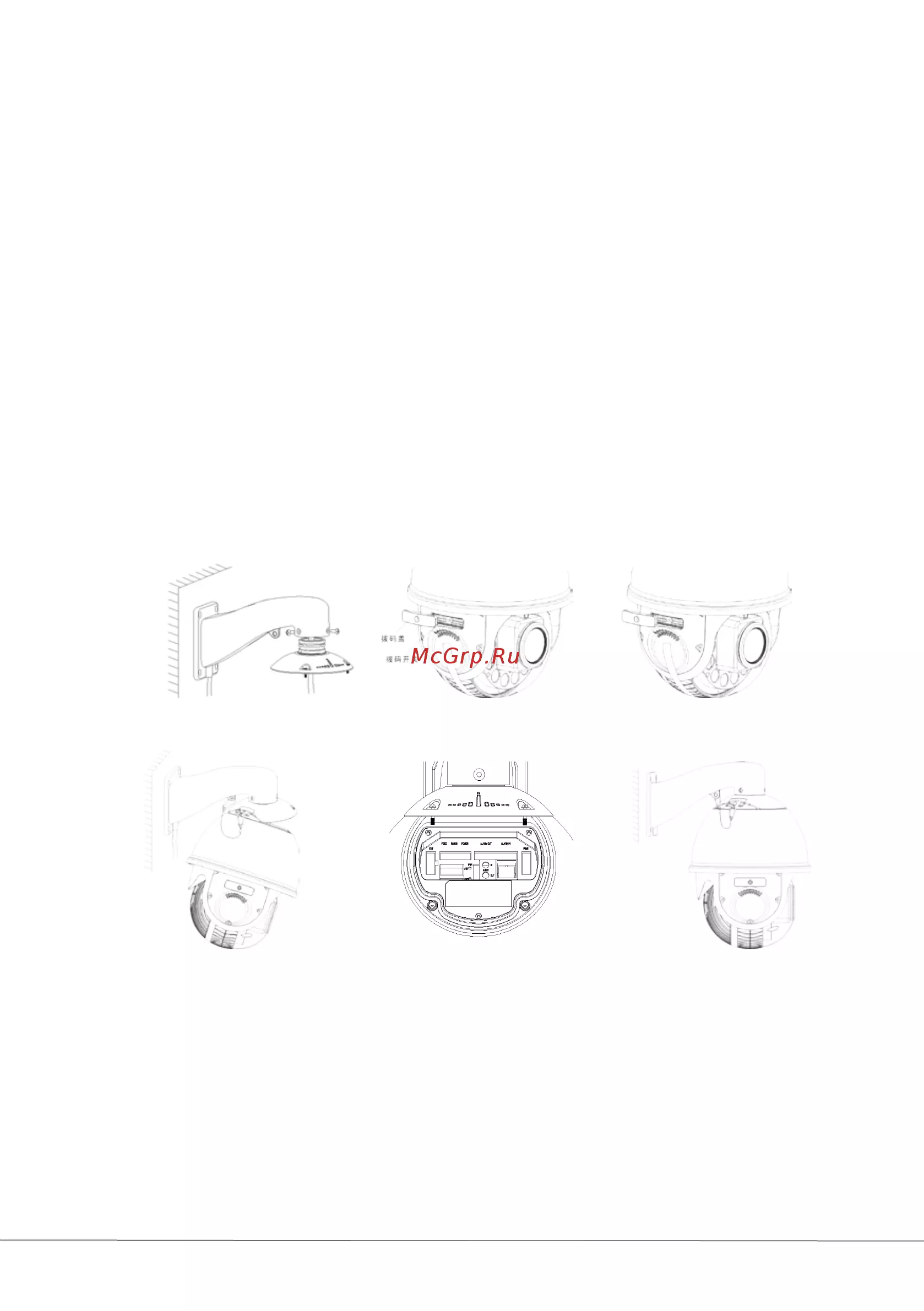

2 Speed Dome Installation
2.1 Install Preparation
1. Basic Requirement
Before the installation, please read following caution information:
1) Installation and maintenance should be carried out by professional personnel as per relative regulations. All electrical work must obey
the latest electrical regulations, fire regulations and relevant regulations. Check whether the accessories of the unit are complete
according to packing list and confirm whether the place and method of installation is in accord with required, if not, please contact your
supplier. Please use this product in required environment.
2) Indoor IR intelligent high-speed dome only designs for house supply. It can't be installed exposed to rain or in very humid place.
3) After re-installation or repair, you need to measure the resistance between the circuit and shell to check whether the insulation is
good, and ensure there is no short-circuit between the circuit and shell.
4) Confirm there is enough place to contain the product and its structure components. Confirm the ceiling, wall and bracket for
installation can take the total weight of the product and its structure components, and materials used to support the weight can sustain
four times the weight of the product.
5) Please refer to following table of work environment:
Temperature
-30～65℃
Atmospheric
Pressure
86～106KPa
Humidity
＜90%RH
Power DC12V/5A
2. Preparation of wire
Following is recommend Max distance for 12VDC. Please refer the Appendix 3 Wire Gauge&Transmission Distance.
Cable Diameter Max Distance(M/ft)
0.75mm
2
6m(20ft)
1mm
2
9m(30ft)
1.5mm
2
12m(40ft)
2mm
2
15m(50ft)
3. Please keep the product package well
Please keep the product package well, You can send the speed dome to factory with that package if there is any problem need to
service.
