2.2 Installation

1. Speed Dome Installation

Different Bracket install way please refer to chapter 2 and chapter 3

1) Take out the cable from the speed dome.Remove the connected cover from speed dome, and put the wire though the bracket.

Connect the bracket and cover with 3 pcs screws, and fix it to wall.( As Dig. 2.2.1) (Caution: The bracket must be with waterproof fodder

together)

2) Open the Dip Switch Cap with screw driver. Configure the protocol, Baud rate, and Speed Dome address. ( As Dig. 2.2.2). Please refer

the chapter 2.4" Dip Switch Setting"

3) Remove the protect gummed tape (As Dig. 2.2.3), check the situation of seal ring on top of speed dome.

4) Connect the safe rope of speed dome to the bracket, then hook up speed dome to the connected cover( As Dig. 2.2.4). You should

plugged the cable into right pin by reference by cable mark(As Dig. 2.2.5).

5) Fix the speed dome with the screws.

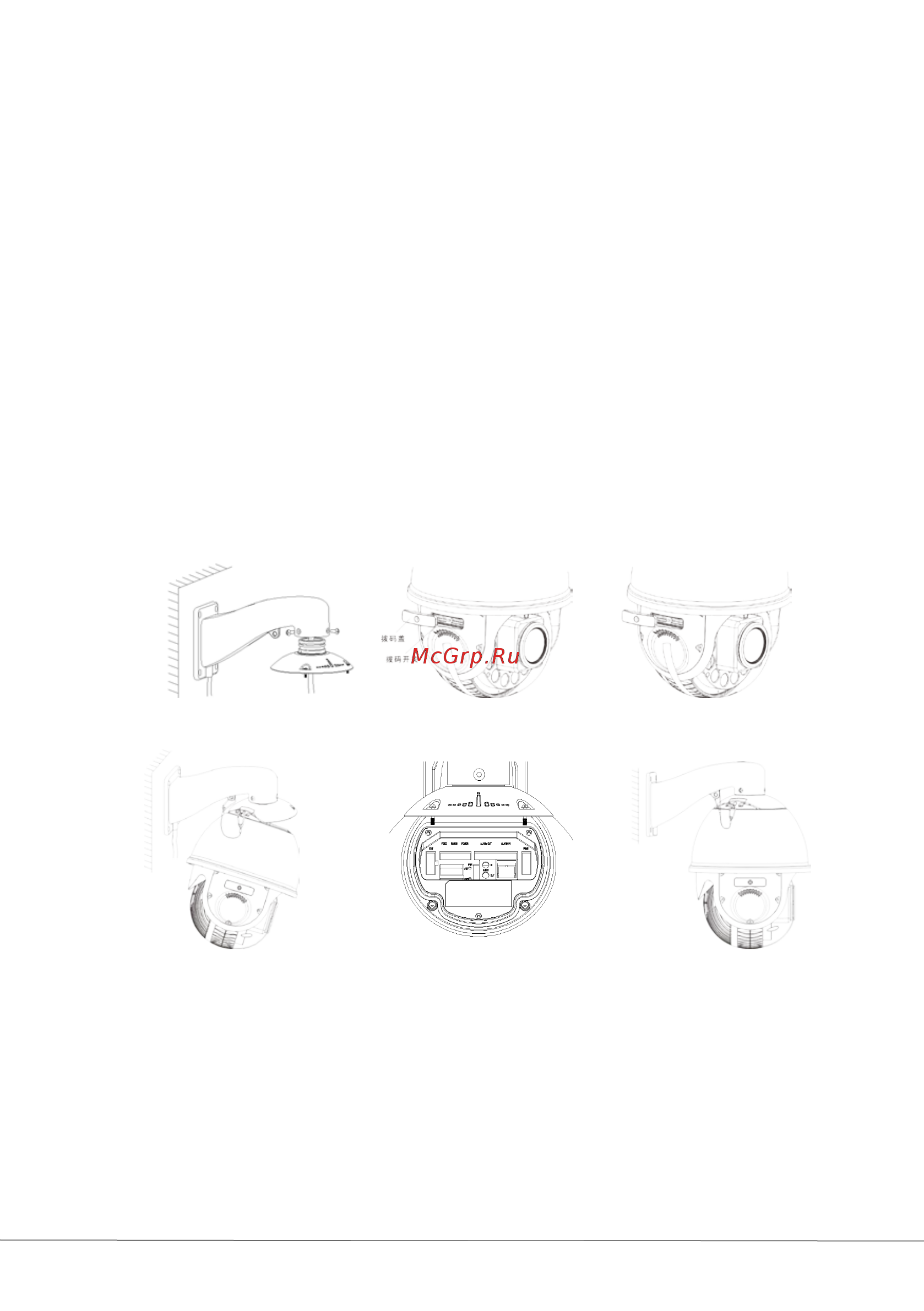

2.2.1 2.2.2 2.2.3

2.2.4 2.2.5 2.2.6
