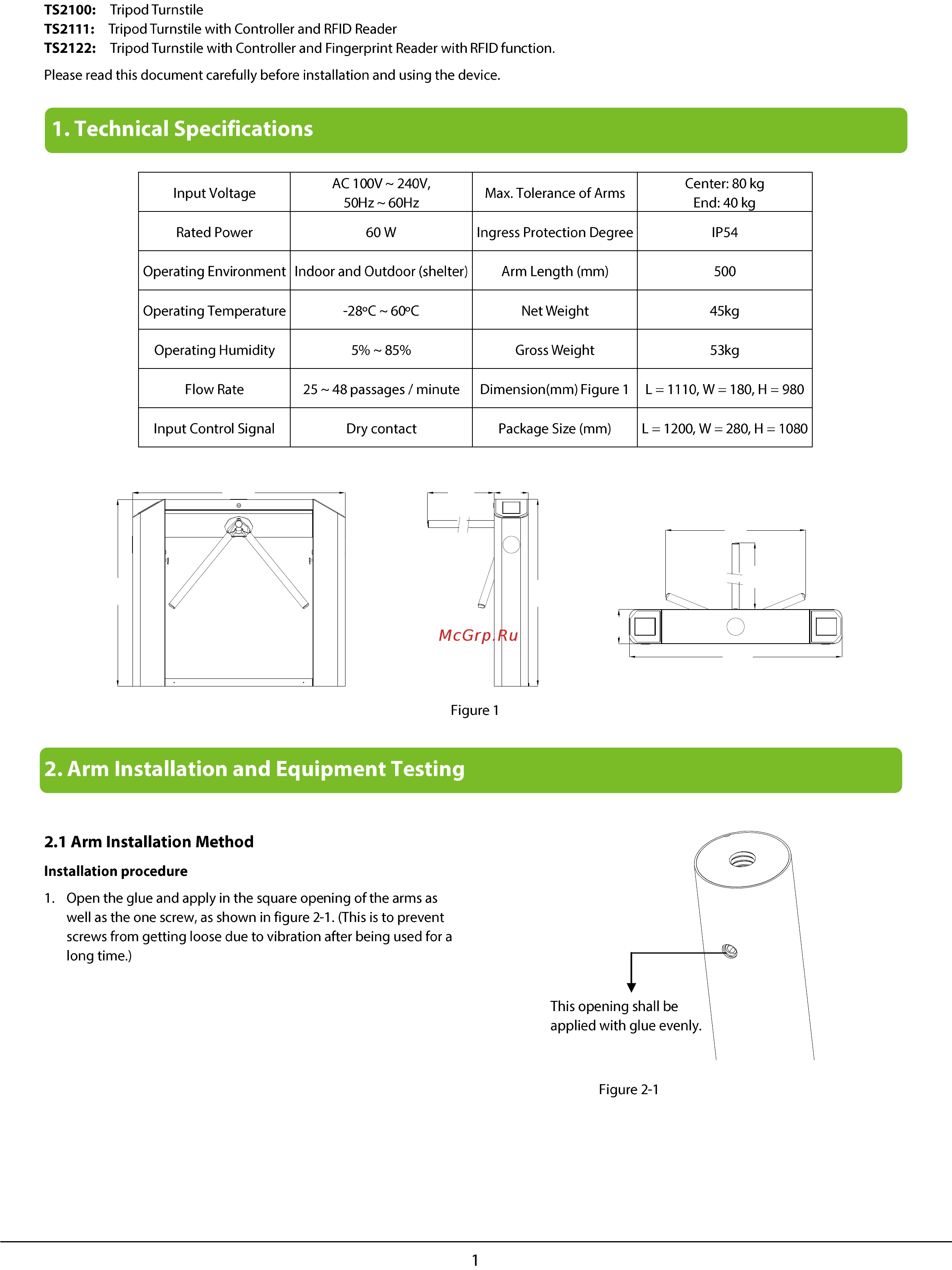

TS2100 Tripod Turnstile TS2111 Tripod Turnstile with Controller and RFID Reader TS2122 Tripod Turnstile with Controller and Fingerprint Reader with RFID function Please read this document carefully before installation and using the device 1 Technical Specifications Input Voltage AC 100V 240V 50Hz 60Hz Max Tolerance of Arms Center 80 kg End 40 kg Rated Power 60 W Ingress Protection Degree IP54 Operating Environment Indoor and Outdoor shelter Arm Length mm 500 Operating Temperature 28 C 6O C Net Weight 45kg Operating Humidity 5 85 Gross Weight 53kg 25 48 passages minute Dimension mm Figure 1 L 1110 W 180 H 980 Dry contact Package Size mm L 1200 W 280 H 1080 Flow Rate Input Control Signal Figure 1 2 Arm Installation and Equipment Testing 2 1 Arm Installation Method Installation procedure 1 Open the glue and apply in the square opening of the arms as well as the one screw as shown in figure 2 1 This is to prevent screws from getting loose due to vibration after being used for a long time Figure 2 1 1
