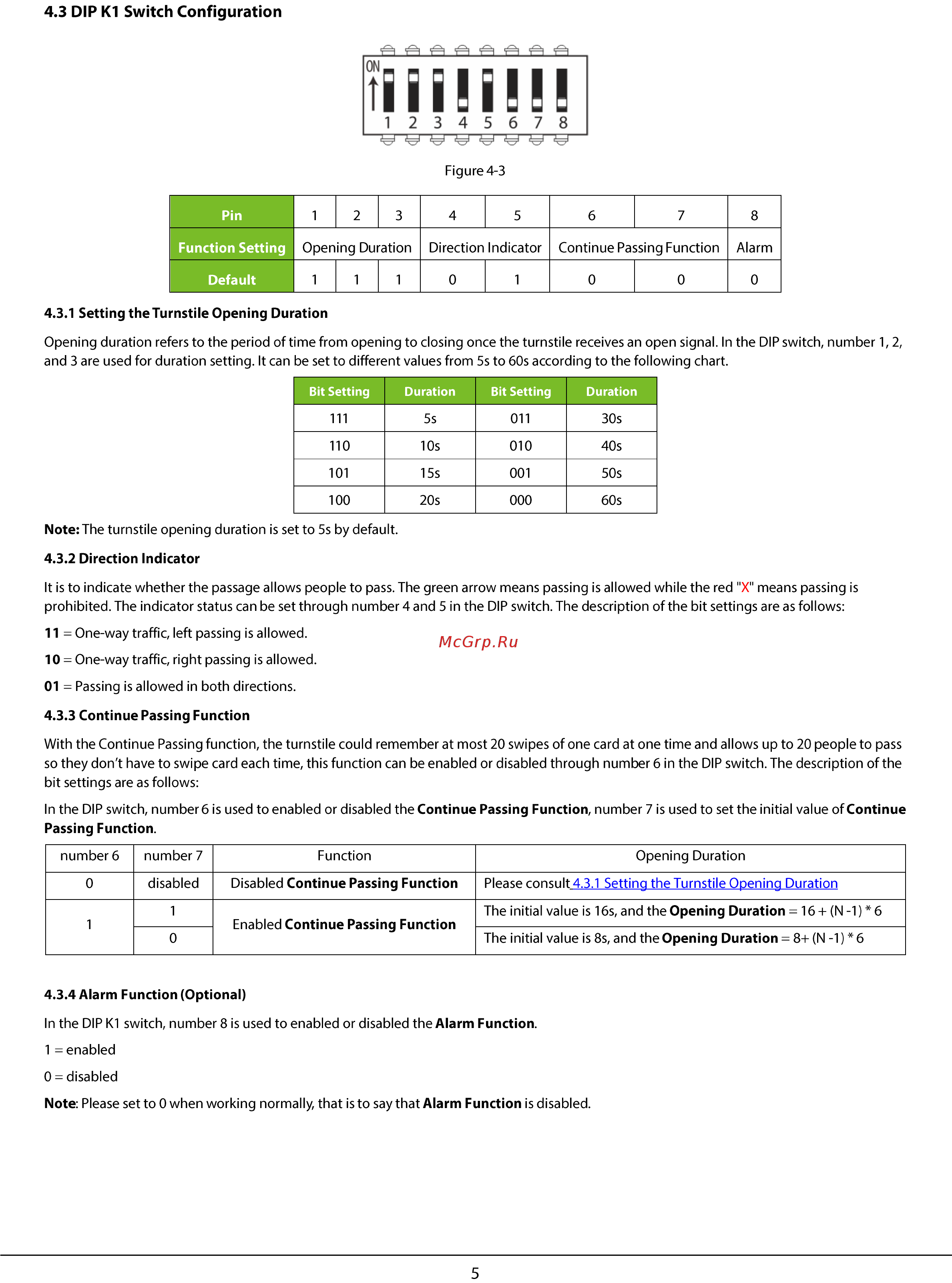

4 3 DIP KI Switch Configuration aeeaeaee timmi 12345678 Figure 4 3 1 Pin Function Setting Default 2 3 Opening Duration 1 1 4 5 Direction Indicator 1 0 1 6 7 Continue Passing Function 0 8 Alarm 0 0 4 3 1 Setting the Turnstile Opening Duration Opening duration refers to the period of time from opening to closing once the turnstile receives an open signal In the DIP switch number 1 2 and 3 are used for duration setting It can be set to different values from 5s to 60s according to the following chart Bit Setting Duration Bit Setting Duration 111 5s on 30s 110 10s 010 40s 101 15s 001 50s 100 20s 000 60s Note The turnstile opening duration is set to 5s by default 4 3 2 Direction Indicator It is to indicate whether the passage allows people to pass The green arrow means passing is allowed while the red X means passing is prohibited The indicator status can be set through number 4 and 5 in the DIP switch The description of the bit settings are as follows 11 One way traffic left passing is allowed 10 One way traffic right passing is allowed 01 Passing is allowed in both directions 4 3 3 Continue Passing Function With the Continue Passing function the turnstile could remember at most 20 swipes of one card at one time and allows up to 20 people to pass so they don t have to swipe card each time this function can be enabled or disabled through number 6 in the DIP switch The description of the bit settings are as follows In the DIP switch number 6 is used to enabled or disabled the Continue Passing Function number 7 is used to set the initial value of Continue Passing Function number 6 number 7 Function 0 disabled Disabled Continue Passing Function Opening Duration Please consult4 3 1 Setting the Turnstile Opening Duration 1 1 The initial value is 16s and the Opening Duration 16 N 1 6 Enabled Continue Passing Function 0 The initial value is 8s and the Opening Duration 8 N 1 6 4 3 4 Alarm Function Optional In the DIP K1 switch number 8 is used to enabled or disabled the Alarm Function 1 enabled 0 disabled Note Please set to 0 when working normally that is to say that Alarm Function is disabled 5
