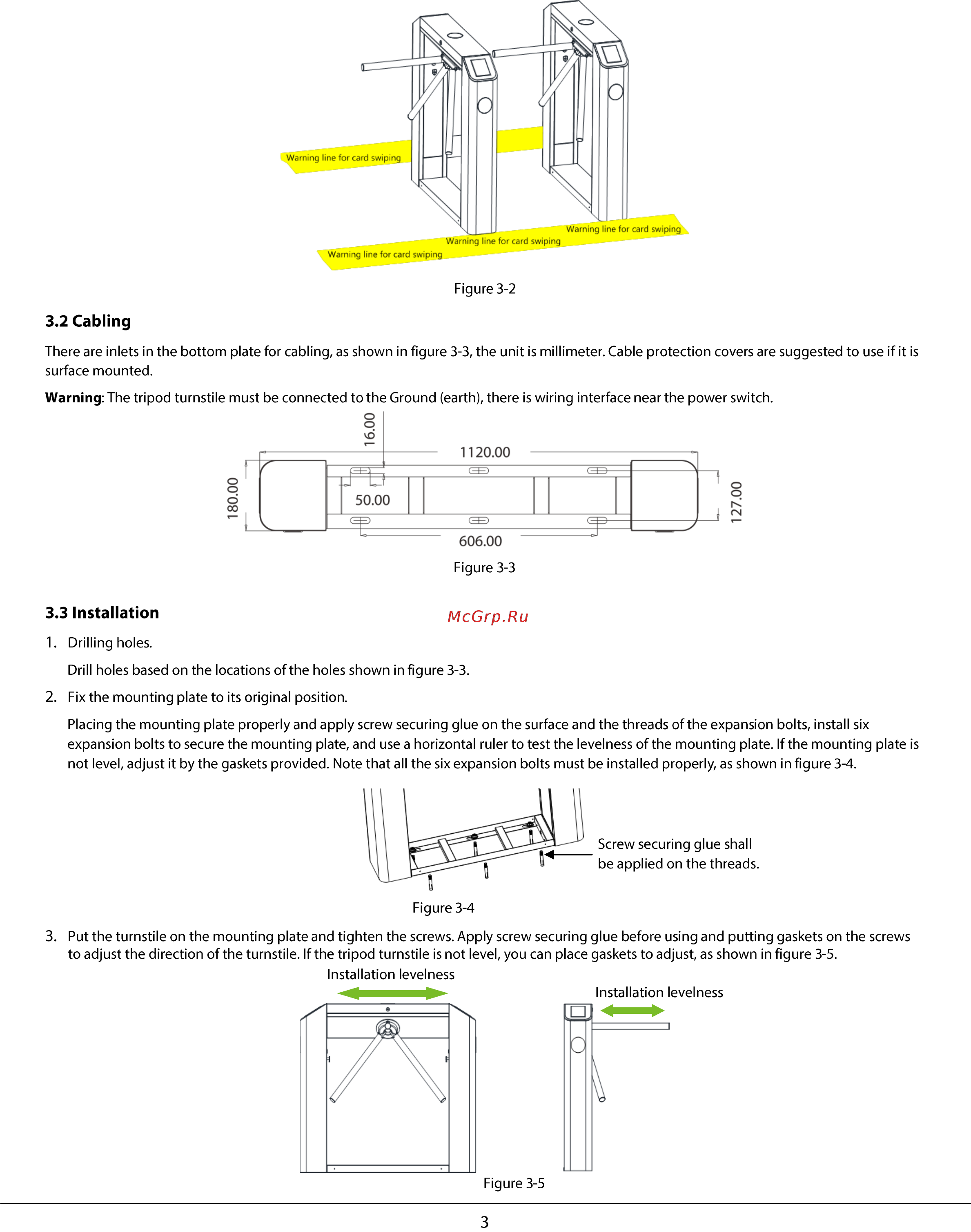

2 The space at the end of the arm shall not be greater than 80mm see figure 3 1 3 Setting a warning line for card swiping see figure 3 2 A warning line is suggested to prompt users to swipe cards in a distance which would greatly reduce the probability of equipment failure caused by improper operations Warning liieicr card swiping Waning line for card swiping Figure 3 2 3 2 Cabling There are inlets in the bottom plate for cabling as shown in figure 3 3 the unit is millimeter Cable protection covers are suggested to use if it is surface mounted Warning The tripod turnstile must be connected to the Ground earth there is wiring interfacenear the power switch 3 3 Installation 1 Drilling holes Drill holes based on the locations of the holes shown in figure 3 3 2 Fix the mounting plate to its original position Placing the mounting plate properly and apply screw securing glue on the surface and the threads of the expansion bolts install six expansion bolts to secure the mounting plate and use a horizontal ruler to test the levelness of the mounting plate If the mounting plate is not level adjust it by the gaskets provided Note that all the six expansion bolts must be installed properly as shown in figure 3 4 Screw securing glue shall be applied on the threads Figure 3 4 3 Put the turnstile on the mounting plate and tighten the screws Apply screw securing glue before using and putting gaskets on the screws to adjust the direction of the turnstile If the tripod turnstile is not level you can place gaskets to adjust as shown in figure 3 5 Installation levelness Installation levelness 3
