The installation of the product 3

2. The installation of the product

2.1. Installation notes

1) It is recommended that the tripod turnstile be installed on a horizontal solid platform.

2) It is recommended that the tripod turnstile should not be used in corrosive environment.

3) Make sure the protective earth wire of the system is reliably connected to avoid personal injuries

or other accidents.

4) After installation, check whether connection is reliable at the connecting points of the protective

earth wire, at the connector assemblies and wiring points of the circuits, as well as at each

movable part of the tripod turnstile. Any loose nuts, screws and other fasteners should be

tightened in time to avoid tripod turnstile failures caused by long-time operations.

2.2. Installation position of the tripod turnstile

The installation position depends on the size of the tripod turnstile. If the tripod turnstile is installed

near a wall, a distance of 100mm between the tripod turnstile and the wall needs to be reserved for

ease of opening the top cover of the machine to perform maintenance and adjustment. The

TS5000A may either form one channel, or form dual channels with two TS5000A tripod turnstiles, as

shown in figure 2-1;

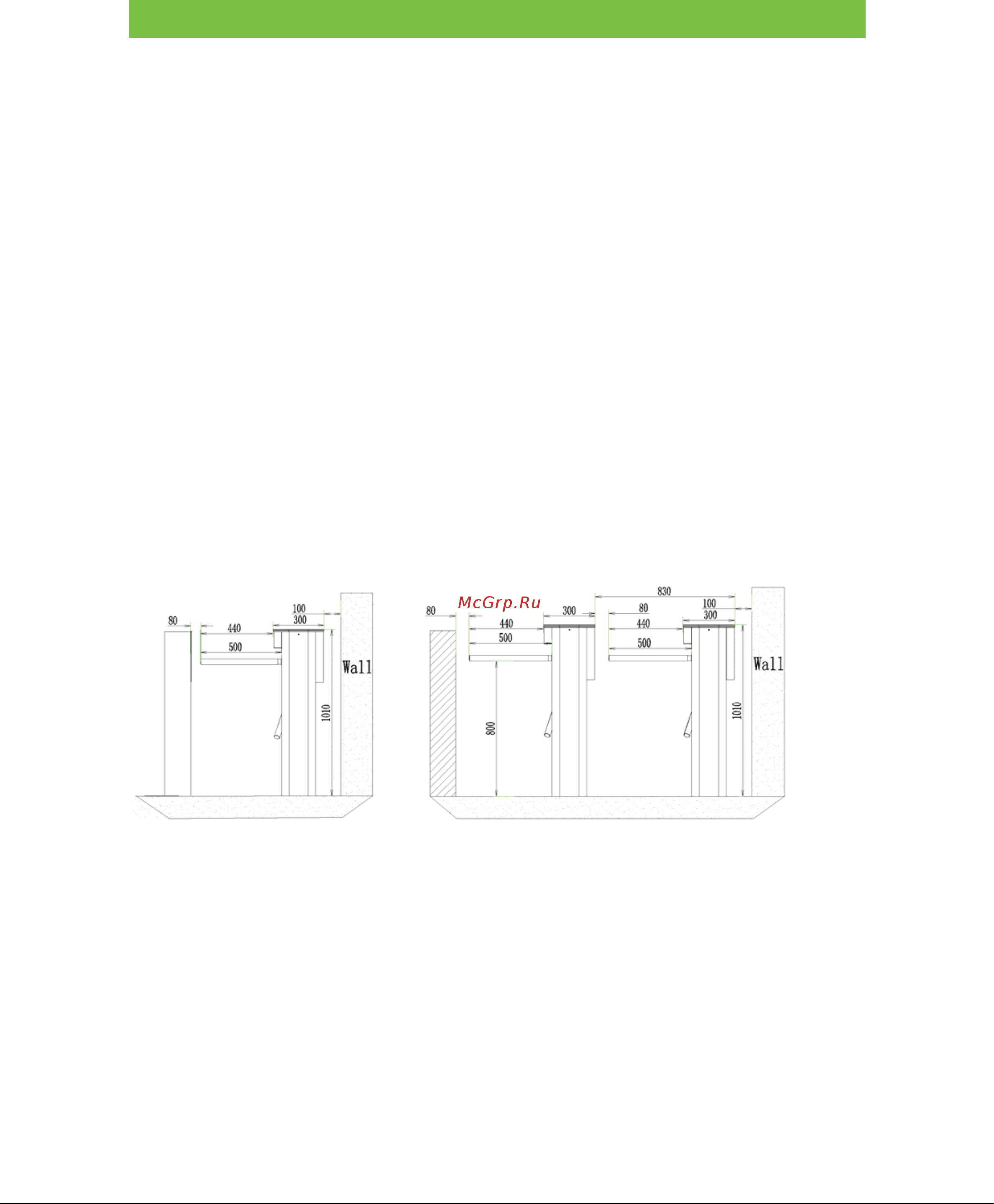

Figure 2–1 TS5000A Single channel and dual channel

2.3. Installation

2.3.1. Cables installation

For the outlets of the concealed cables, please refer to the drawing showing the mounting

holes.The input voltage for this tripod turnstile is AC100-120V/200-240V.Note that the PVC conduits

are buried 100mm under the ground, with the height of the exposed part not exceeding 100mm. In

addition, the conduit outlet is bent back to prevent ingress of water into the conduit.
