2.3.2. Fix the cabinet

Mark out the screw hole centers of the stand, and the edge of the chassis base on the ground

according to the sizes as shown on the figure 2-2. Use a hammer drill to perforate M12 screw holes

and then install the screws. Place the tripod turnstile according to the sizes and positions as shown

in the figure before installation. Connect the cables and perform the power-on testing. If the testing

is OK, tighten the screws. It is recommended that a warning line be marked out on the ground after

the machine is installed, so as to prompt the pedestrian to stand behind the warning line when

swiping the card. As shown in Figure 2-2:

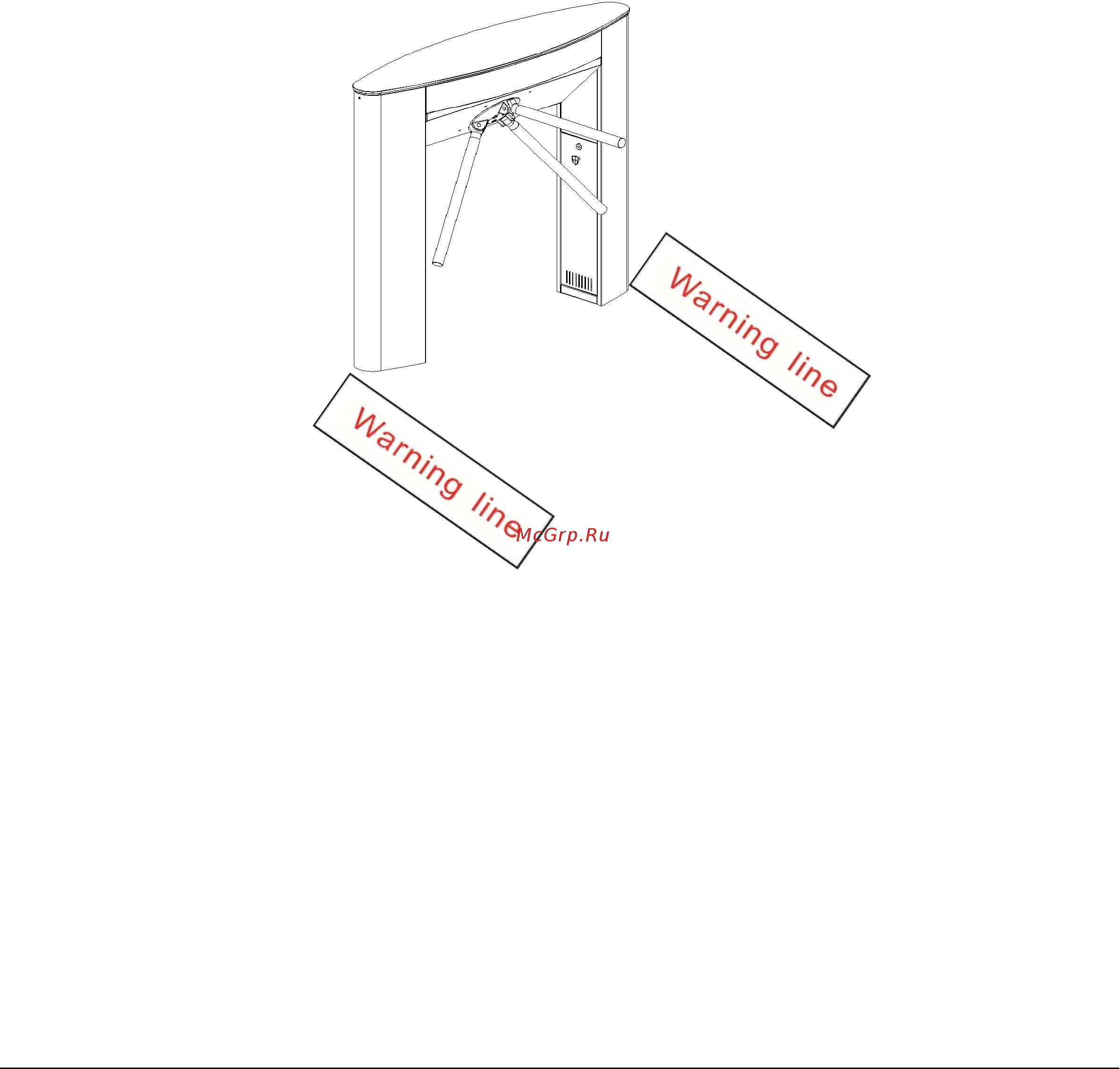

Figure 2–2
