Brother KE-430HS NEXIO [36/65] N thread nipper mechanism for ke 430hx 3 k 1

KE-430HX-

409

KE-430HX-409

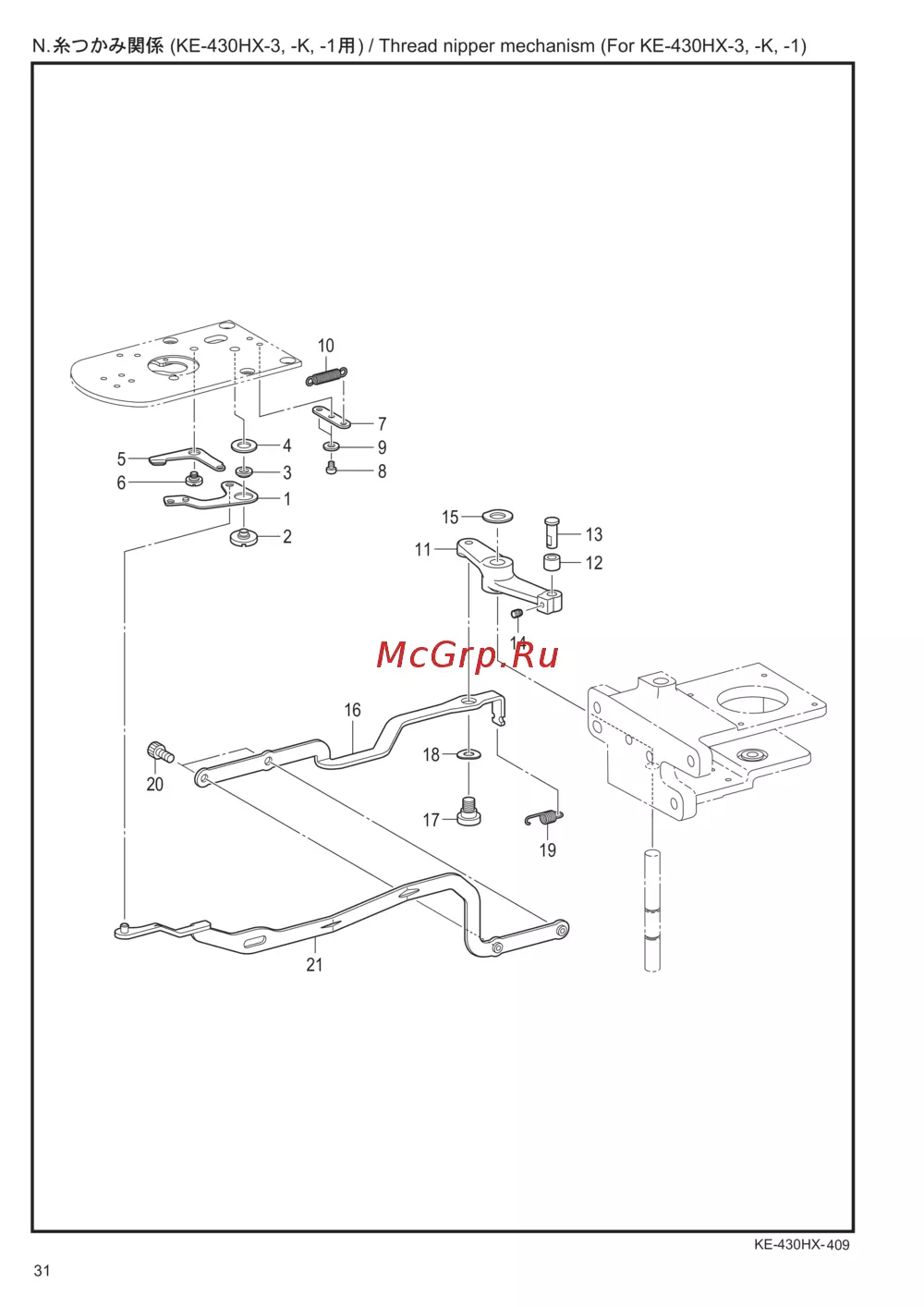

N. (KE-430HX-3, -K, -1 ) / Thread nipper mechanism (For KE-430HX-3, -K, -1)
