Fluke 1623 [11/30] Earth ground tester safety regulations
![Fluke 1623 [11/30] Earth ground tester safety regulations](/views2/1004978/page11/bgb.png)
Earth/Ground Tester
Safety Regulations
3
ulps
V 05 xam
1
1P
SE
2P
S
FLUKE
11
2
3
4
5
6
7
8
9
10
FLUKE 1623
edv001.eps

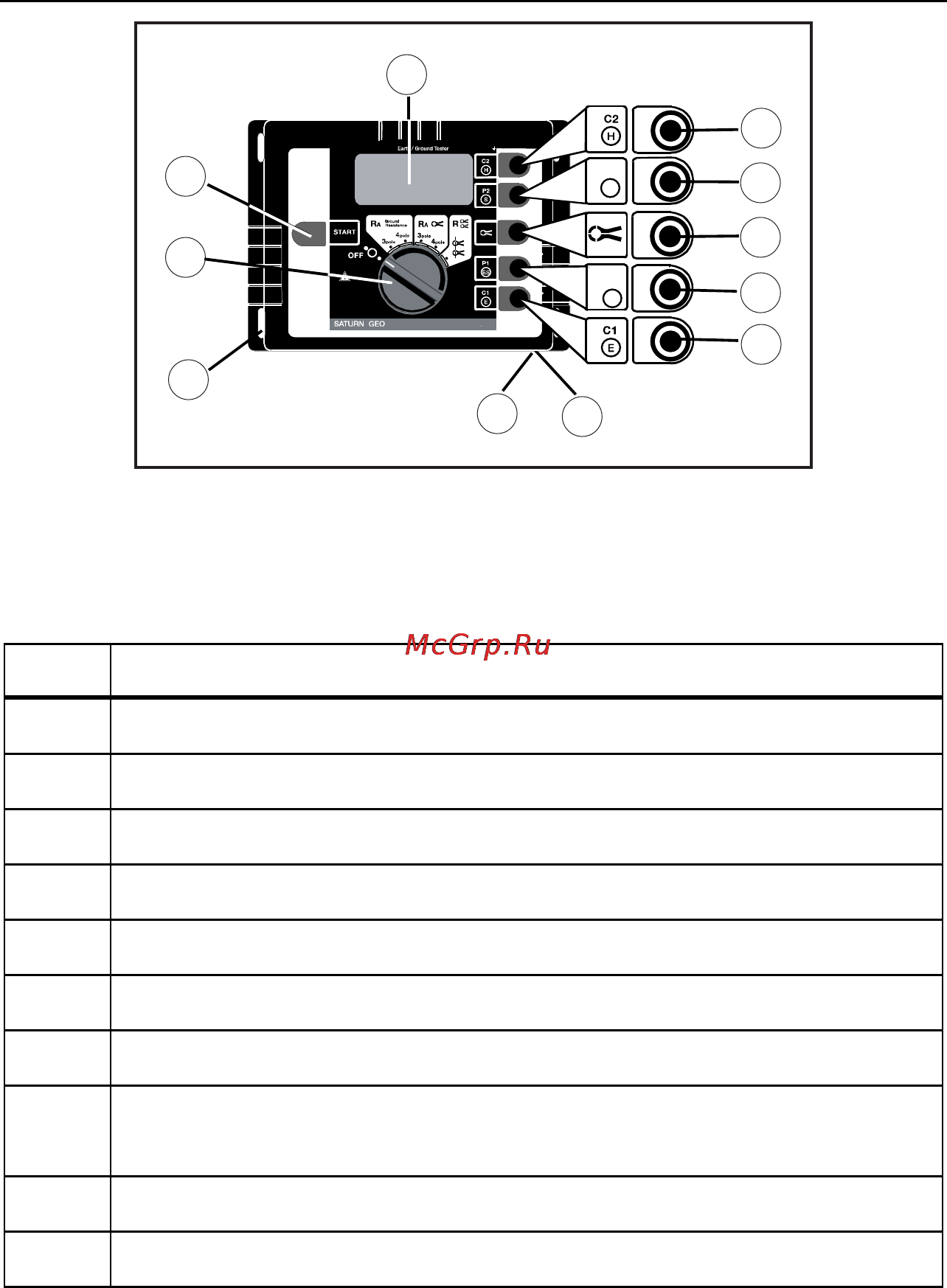

Figure 1. Features and Functions
Table 1. Features and Functions
Item Description
A Rotary switch for selection of measurement functions and ON/OFF.
B START button for starting the selected measurement function.
C Liquid crystal display (LCD).
D Connection “H” for auxiliary earth 4 mm ∅
E Connection “S” for probe 4 mm ∅
F Connection A for sensing current test clamp
G Connection “ES” for earth electrode probe 4 mm ∅
H
Connection “E” for the earth/ground electrode to be measured 4 mm
∅
I Battery compartment for 6 alcaline batteries (type AA, LR6) or NiCd
J batteries (bottom side of instrument)
