Руководство по эксплуатации Страница: 178

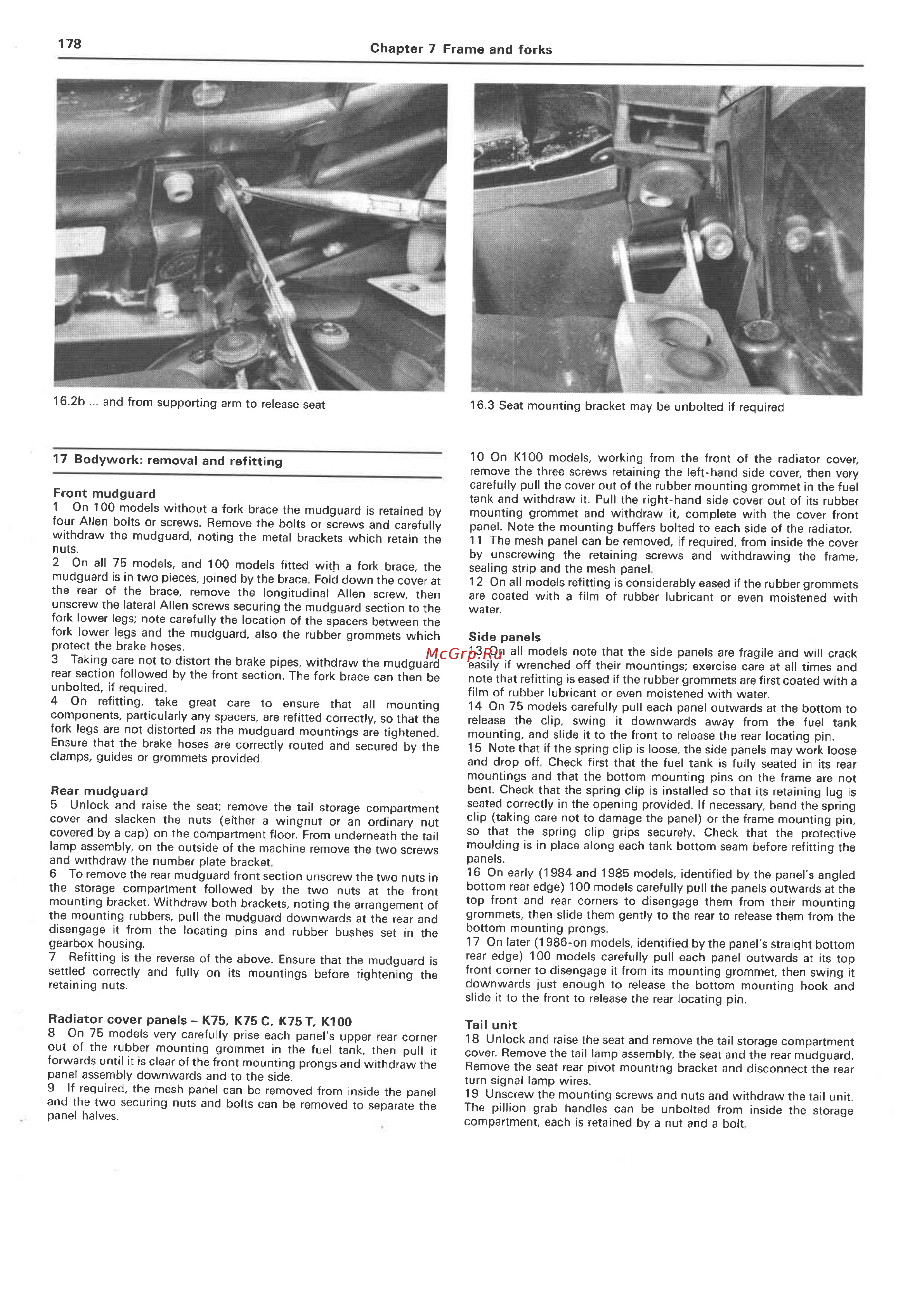

BMW K75 [178/236] Bodywork removal and refitting

Содержание

Похожие устройства

178 Chapter 7 Frame and forks 16 2b and from supporting arm to release seat 16 3 Seat mounting bracket may be unbolted if required 17 Bodywork removal and refitting 10 On K100 models working from the front of the radiator cover remove the three screws retaining the left hand side cover then very carefully pull the cover out of the rubber mounting grommet in the fuel tank and withdraw it Pull the right hand side cover out of its rubber mounting grommet and withdraw it complete with the cover front panel Note the mounting buffers bolted to each side of the radiator 11 The mesh panel can be removed if required from inside the cover by unscrewing the retaining screws and withdrawing the frame sealing strip and the mesh panel 12 On all models refitting is considerably eased if the rubber grommets are coated with a film of rubber lubricant or even moistened with water Front mudguard 1 On 100 models without a fork brace the mudguard is retained by four Allen bolts or screws Remove the bolts or screws and carefully withdraw the mudguard noting the metal brackets which retain the nuts 2 On all 75 models and 100 models fitted with a fork brace the mudguard is in two pieces joined by the brace Fold down the cover at the rear of the brace remove the longitudinal Allen screw then unscrew the lateral Allen screws securing the mudguard section to the fork lower legs note carefully the location of the spacers between the fork lower legs and the mudguard also the rubber grommets which protect the brake hoses 3 Taking care not to distort the brake pipes withdraw the mudguard rear section followed by the front section The fork brace can then be unbolted if required 4 On refitting take great care to ensure that all mounting components particularly any spacers are refitted correctly so that the fork legs are not distorted as the mudguard mountings are tightened Ensure that the brake hoses are correctly routed and secured by the clamps guides or grommets provided Rear mudguard 5 Unlock and raise the seat remove the tail storage compartment cover and slacken the nuts either a wingnut or an ordinary nut covered by a cap on the compartment floor From underneath the tail lamp assembly on the outside of the machine remove the two screws and withdraw the number plate bracket 6 To remove the rear mudguard front section unscrew the two nuts in the storage compartment followed by the two nuts at the front mounting bracket Withdraw both brackets noting the arrangement of the mounting rubbers pull the mudguard downwards at the rear and disengage it from the locating pins and rubber bushes set in the gearbox housing 7 Refitting is the reverse of the above Ensure that the mudguard is settled correctly and fully on its mountings before tightening the retaining nuts Radiator cover panels K75 K75 C K75T K100 8 On 75 models very carefully prise each panel s upper rear corner out of the rubber mounting grommet in the fuel tank then pull it forwards until it is clear of the front mounting prongs and withdraw the panel assembly downwards and to the side 9 If required the mesh panel can be removed from inside the panel and the two securing nuts and bolts can be removed to separate the panel halves Side panels 13 On all models note that the side panels are fragile and will crack easily if wrenched off their mountings exercise care at all times and note that refitting is eased if the rubber grommets are first coated with a film of rubber lubricant or even moistened with water 14 On 75 models carefully pull each panel outwards at the bottom to release the clip swing it downwards away from the fuel tank mounting and slide it to the front to release the rear locating pin 15 Note that if the spring clip is loose the side panels may work loose and drop off Check first that the fuel tank is fully seated in its rear mountings and that the bottom mounting pins on the frame are not bent Check that the spring clip is installed so that its retaining lug is seated correctly in the opening provided If necessary bend the spring clip taking care not to damage the panel or the frame mounting pin so that the spring clip grips securely Check that the protective moulding is in place along each tank bottom seam before refitting the panels 16 On early 1984 and 1985 models identified by the panel s angled bottom rear edge 100 models carefully pull the panels outwards at the top front and rear corners to disengage them from their mounting grommets then slide them gently to the rear to release them from the bottom mounting prongs 17 On later 1986 on models identified by the panel s straight bottom rear edge 100 models carefully pull each panel outwards at its top front corner to disengage it from its mounting grommet then swing it downwards just enough to release the bottom mounting hook and slide it to the front to release the rear locating pin Tail unit 18 Unlock and raise the seat and remove the tail storage compartment cover Remove the tail lamp assembly the seat and the rear mudguard Remove the seat rear pivot mounting bracket and disconnect the rear turn signal lamp wires 19 Unscrew the mounting screws and nuts and withdraw the tail unit The pillion grab handles can be unbolted from inside the storage compartment each is retained by a nut and a bolt
