Durkopp Adler 261-140342 / 160362 [11/64] High位

2.加油

Lubrication

1)把专用1 0#缝纫机润滑油加入到油盘①，加到HIGH

标记A的位置。

2)如果油面降到LOW标记B以下时，请再次把油加至

HI GH位置。

3)加油后运转缝纫机，润滑正常时应能看到油窗②

里油面跳转。

4)油跳动量的大小与油量的多少无关，因此不用担

心。

(注意)新缝纫机或较长时间没有使用的缝纫机，应

进行约10分钟每分3000针的磨合运转。

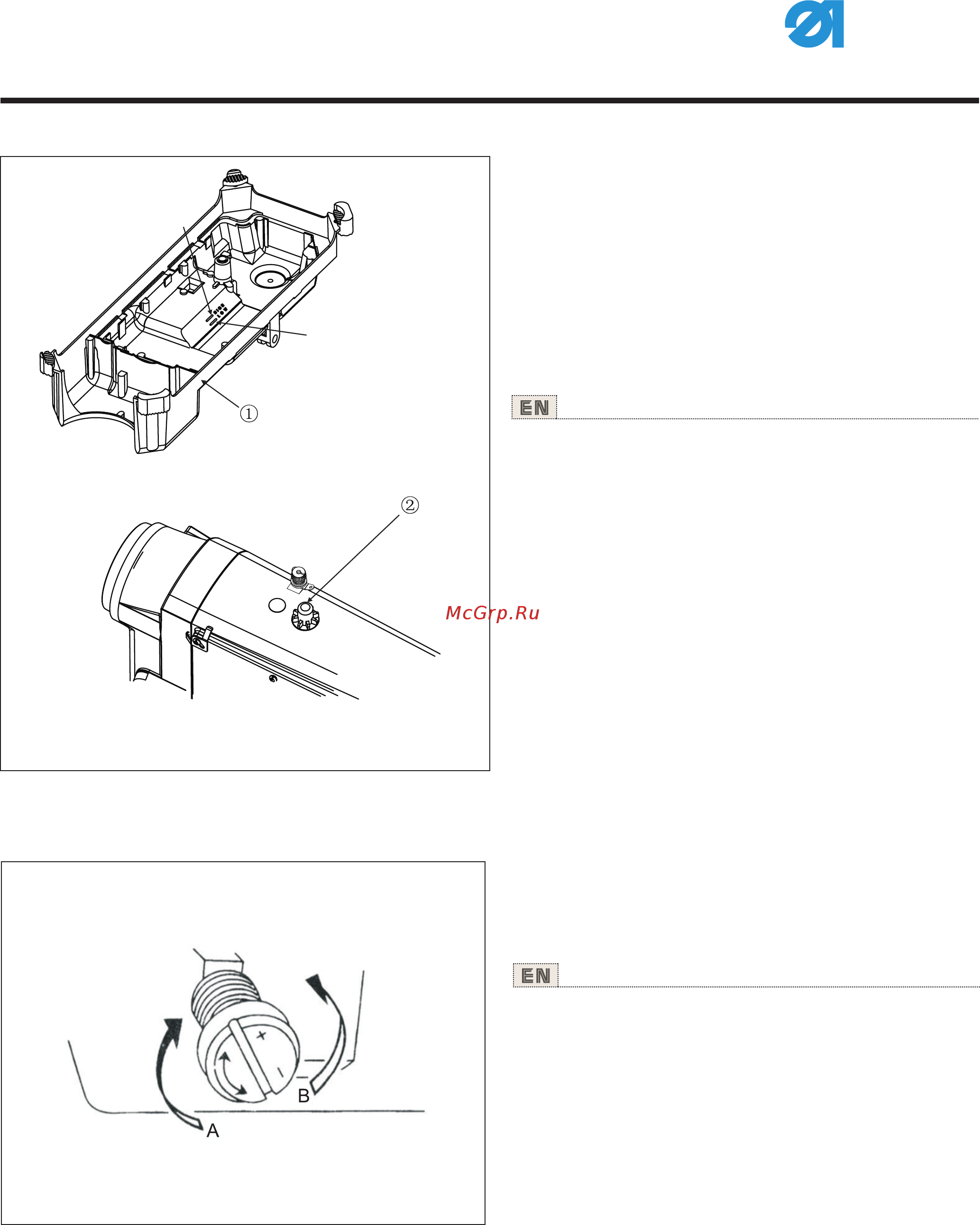

1) Fill oil pan ① with New Special Oil up to HIGH mark.

2) When the oil level lowers below LOW mark, refill the oil

pan with the specified oil.

3)When you operate the machine after lubrication, you will

see splashing oil through oil sight window ② if the

lubrication is adequate.

4) Note that the amount of the splashing oil is unrelated to

the amount of the lubricating oil.

(Caution) When you first operate your machine after setup

or after an extended period of disuse, run your machine at

3000 s.p.m. to 35000 s.p.m. for about 10 minutes for the

purpose of break-in.

使用说明书

Operating Instructions

(1).旋梭油量调整

1) 把下轴前段部的油量调节螺丝向+方向(A方向)，转动

油量增多，向-方向(B方向)转动油量变少。

2) 油量调节螺丝调节后，请进行30秒钟的空运转，以确

认油量。

1) Turning the oil amount adjustment screw attached on the

hook driving shaft front bushing in the + direction(in direction

A) will increase the amount of oil in the hook, or in the “-“

direction(in direction B) will decrease it.

2) After the amount of oil in the hook has been properly

adjusted with the oil amount adjustment screw, make the

sewing machine run idle for approximately 30 seconds to

check the amount of oil (oil splashes) in the hook.

Adjusting the amount of oil in the hook

3.油量的调节 Adjusting the amount of oil
