Ariens ST28 DELUXE TRACK [29/33] Ischarg

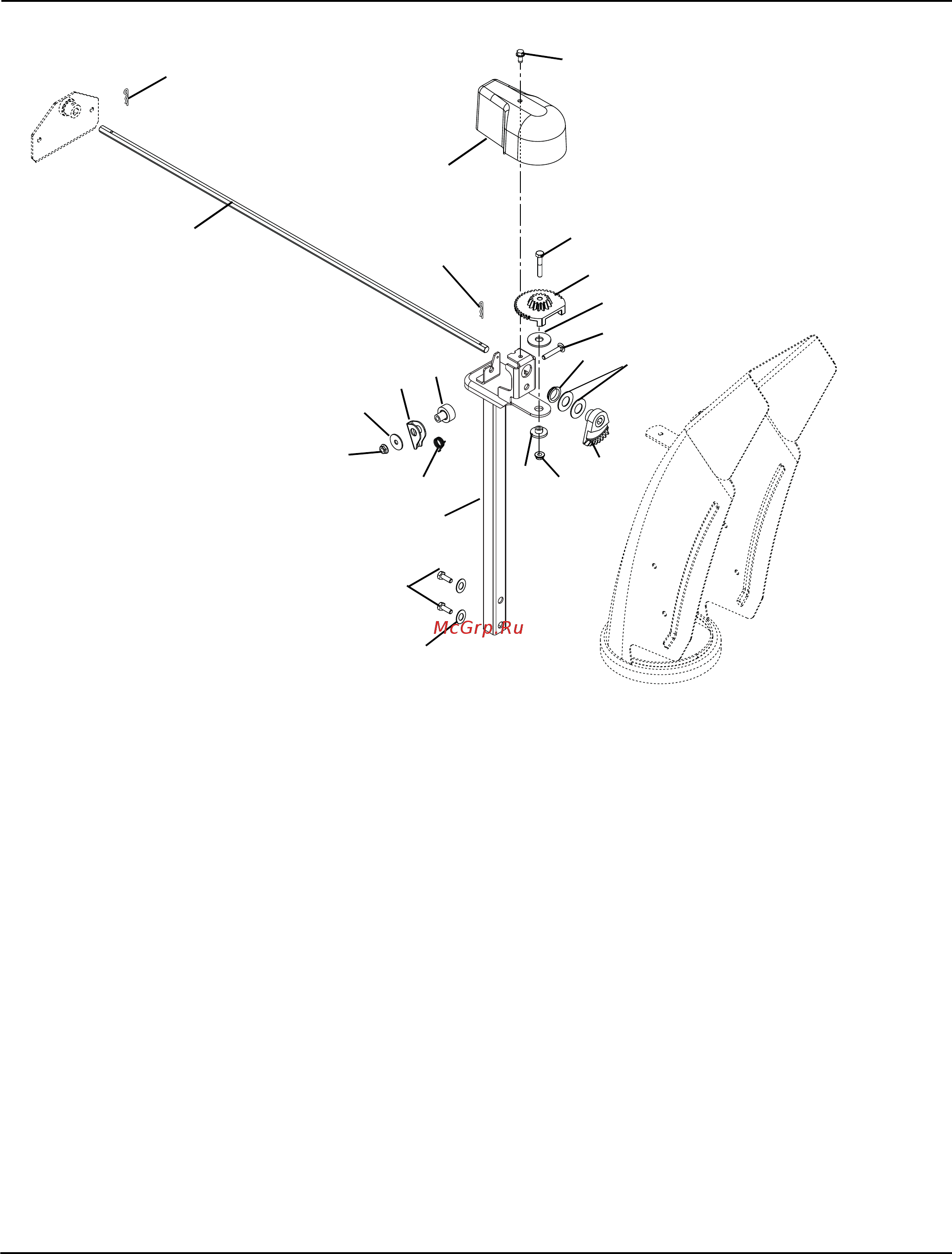

DISCHARGE CHUTE

Model 921017, 018

Item Part No. Qty. Description

1 00389200 1 Rod, Chute Rotation - Hex

2 00261700 1 Cover, Chute Gear

3 07400034 1 Screw, Tapping Hex Washer Head .25-20 x .50

4 05952500 1 Bolt, Hex .25-20 x 1.50 Grade 5

5 03898700 1 Gear, Chute

6 06222300 1 Bolt, Round Head Square Neck .25-20 x 1.50 Grade 5

7 06400904 1 Washer, Flat Nylon .515 x 1.375 x .093

8 05500027 1 Bushing, Polyliner .75 Snap-in

9 06441400 2 Washer, Flat Steel .754 x 1.125 x .062

10 00184300 1 Gear, Chute - Actuation

11 06543500 2 Nut, Locking Top Flange .25-20

12 05500920 1 Bushing, Flange

13 05958500 2 Bolt, Hex .38-16 x 1.75 Grade 5

14 06308800 2 Washer, Locking .38 x .094

15 06944800 1 Clip, Spring

16 06712900 1 Hairpin, # 7 .094 x 2.31

17 03897451 1 Pedestal, Chute - Quick Stick

18 08300014 1 Spring, Torsion

19 06426600 1 Washer, Flat Steel .281 x 1.00 x .063

20 00180900 1 Arm, Locking

21 05500024 1 Bushing, Lock Arm
