GB - 14
Discharge Chute
Discharge chute rotates 205°.
ALWAYS position discharge chute in safe
direction and angle, away from operator and
bystanders, before starting engine.
Discharge Chute Crank
IMPORTANT: If chute does not stay in set
position, adjust as directed in SERVICE AND
ADJUSTMENTS on page 19, or repair before
operation.
Rotate the chute with the discharge chute
crank handle.
IMPORTANT: DO NOT force frozen chute
controls. If frozen, take to warm place until
controls are free.
Axle Lock Pin
(Figure 9)
Use the axle lock pin to lock or unlock the
right or left wheel. Lock both wheels to
increase traction; unlock one wheel to allow
for easier turning of the unit.
NOTE: Unit will not drive with both wheels
unlocked.
Scraper Blade
The scraper blade allows better contact with
the surface being cleared. It also prevents
damage to the housing from wear.
IMPORTANT: DO NOT allow scraper blade to
wear too far or auger/impeller housing will
become damaged.
Skid Shoes
The skid shoes control the distance between
the scraper blade and the ground. Adjust skid
shoes equally to keep blade level with the
ground. Refer to Pre-Start on page 15 for
recommended settings.
FILLING FUEL TANK
GASOLINE
Fuel Recommendations
Use unleaded gasoline with a pump octane
rating of 86 or higher. These engines operate
best on unleaded gasoline.
• Gasoline with up to 10% ethanol
(gasohol) or up to 10% MTBE (methyl
tertiary butyl ether) is acceptable.
• Use of any gasoline other than those
approved above will void the engine
warranty. If the pumps are not marked
for the content of alcohol or ehters,
check ethanol and MTBE levels with
the fuel supplier.
Adding a Fuel Stabilizer to Extend
Fuel Storage Life
NOTE: Fuel stabilizer is recommended for
long term storage.
1. Turn the fuel valve off while engine is
running and allow the engine to run until
it stops. Turn engine OFF when it begins
surging to avoid engine damage.
2. Add fuel stabilizer, following the
manufacturer’s instructions.

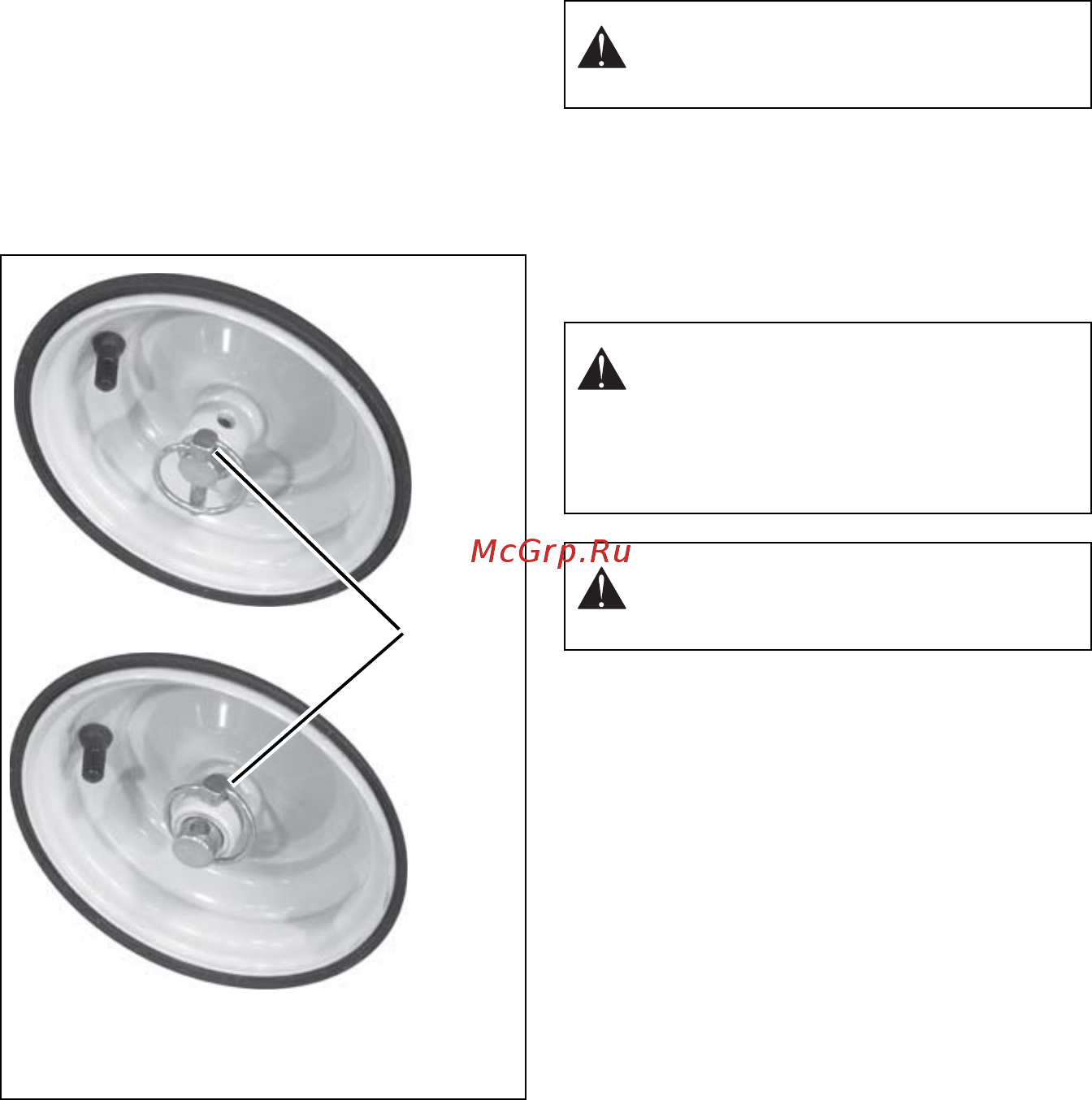

Figure 9
Wheel Unlocked
Wheel Locked
Axle Lock
Pin
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
CAUTION: Do NOT use stale or
contaminated gasoline or an
oil/gasoline mixture. Avoid getting dirt
or water in the fuel tank. Use only
proper fuel containers that are
properly marked.
CAUTION: DO NOT use E85
blended fuels. This engine is not
E20/E30/E85 compatible.
