DSR 9500A FTA, CI, EM VIA, VIA CI
GB-6
DIGITAL SATELLITE RECEIVER
DSR 9500A FTA, CI, EM VIA, VIA CI
GB
GB-7
DESCRIPTION
DESCRIPTION
1. AC MAINS This is to plug in the AC mains power cord.
The input AC voltage range is 100V to 240V, 50Hz/60Hz supply.
2. LNB This port is to connect the coaxial cable from LNB of your dish.
The IF input is provided through this port and the input frequency
range is 950-2150 MHz. Also the voltage switching 13V and
18V is passed through this port.
3. LOOP To enable the connection of an Analog receiver,
The receiver is provided with this ‘
LOOP
’ port.
4. RS 232 DATA PORT This is used to connect your receiver to a computer for reading
and loading data information. This is used to the external modem
for future purposes only, too.
5. S-VHS This is used to connect STB to your TV by using S-VHS cable.
6. SPDIF
Output for connection to a digital amplifier.
7. TV SCART
This is used to connect to your TV.
8. VCR SCART
This is used to connect to your VCR.
9. 0/12V This is used to connect to an external LNB switch.
10. VIDEO, AUDIO R/L These RCA connectors are used to connect any external
video and audio.
11. ANT.IN This is used to connect your local RF channels to
your TV through Loop.
12. TV This is used to connect to your TV via RF cable.

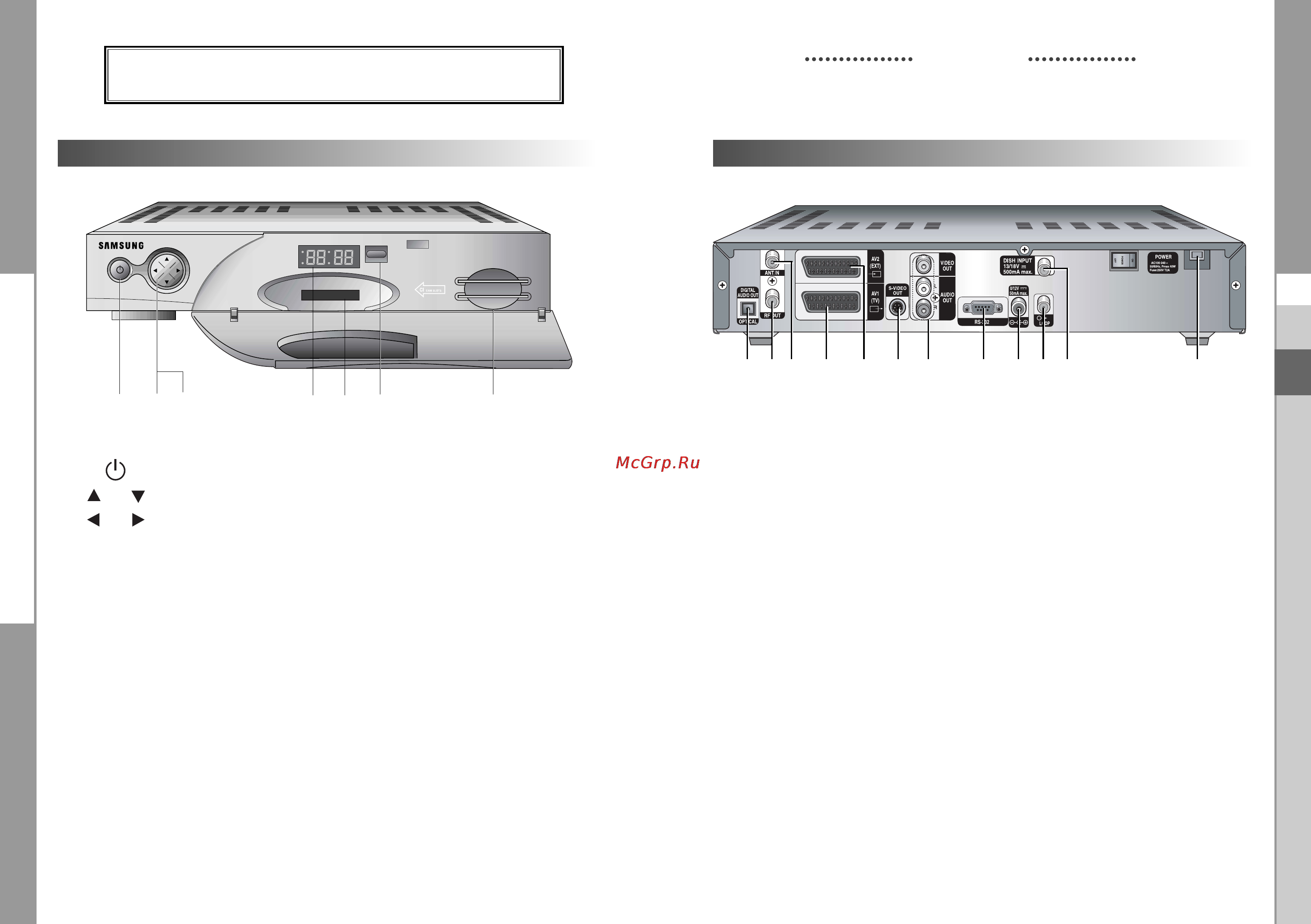

Rear Panel
Front Panel
1.
This key is used to turn the receiver on and off (Standby).
2. ,
These keys are used to change the channels.
3. ,
These keys are used to increase and decrease the volume level
manually.
4. 7
Segment Display This LED display will show the current channel number.
While the receiver is in Standby mode, the display will
show the current time.
5. CAM Slot
Slot for Common Interface.
(For models DSR 9500A CI, DSR 9500A VIA CI)
6. Infrar
ed Sensor This is to receive the IR commands from the Remote
Control Unit.
7. Card Slot
Slot for Viaccess smartcard.
(For models DSR 9500A EM VIA, DSR 9500A VIA CI)
123 645 7
6811 5 10 4 9 3 2
1
12 7
DSR 9500A_GB 12/8/03 1:03 PM Page 6
