Fluke 355 [21/26] Measuring resistance 355 only

Clamp Meter

Using the Meter

Measuring Resistance (355 only)

XW Warning

To avoid possible electric shock or personal

injury, when measuring resistance in a

circuit, make sure the power to the circuit is

turned off and all capacitors are discharged.

To measure resistance:

1. Turn the rotary function switch to e.

2. Remove power from the circuit being tested.

3. Connect the black test lead to the COM terminal and

the red test lead to the V terminal.

4. Measure the resistance by touching the probes to the

desired test points of the circuit.

5. View the reading on the display. See Figure 8.

XW Warning

To avoid electrical shock or personal injury,

be aware that dangerous voltages may be

present at the input terminals and may not be

displayed

AC+DC

OFF

AC+DC

COM

600 V CAT

1000 V CAT

HOLD

RANGE

ZERO

INRUSH

MIN MAX

FILTER

Auto

Range

355

AC/DC CLAMP METER

2000 A

600 V CAT

TRUE RMS

fbq08.eps

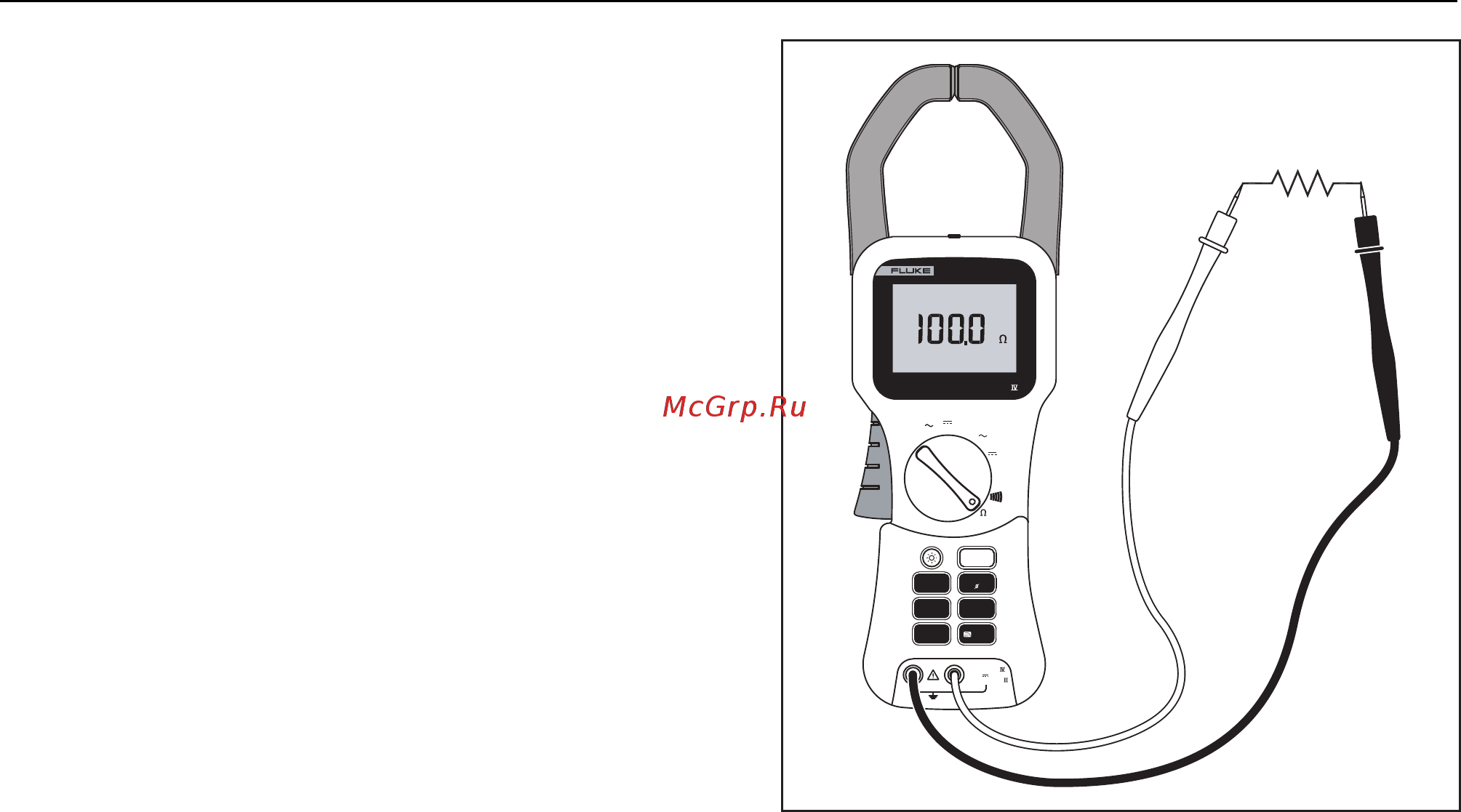

Figure 8. Measuring Resistance
