Yamaha NS-P51 Black [6/32] Connecting the speakers

4 En

Caution: Make sure the power cables for your other AV components are disconnected from the AC wall outlets

before making any connections.

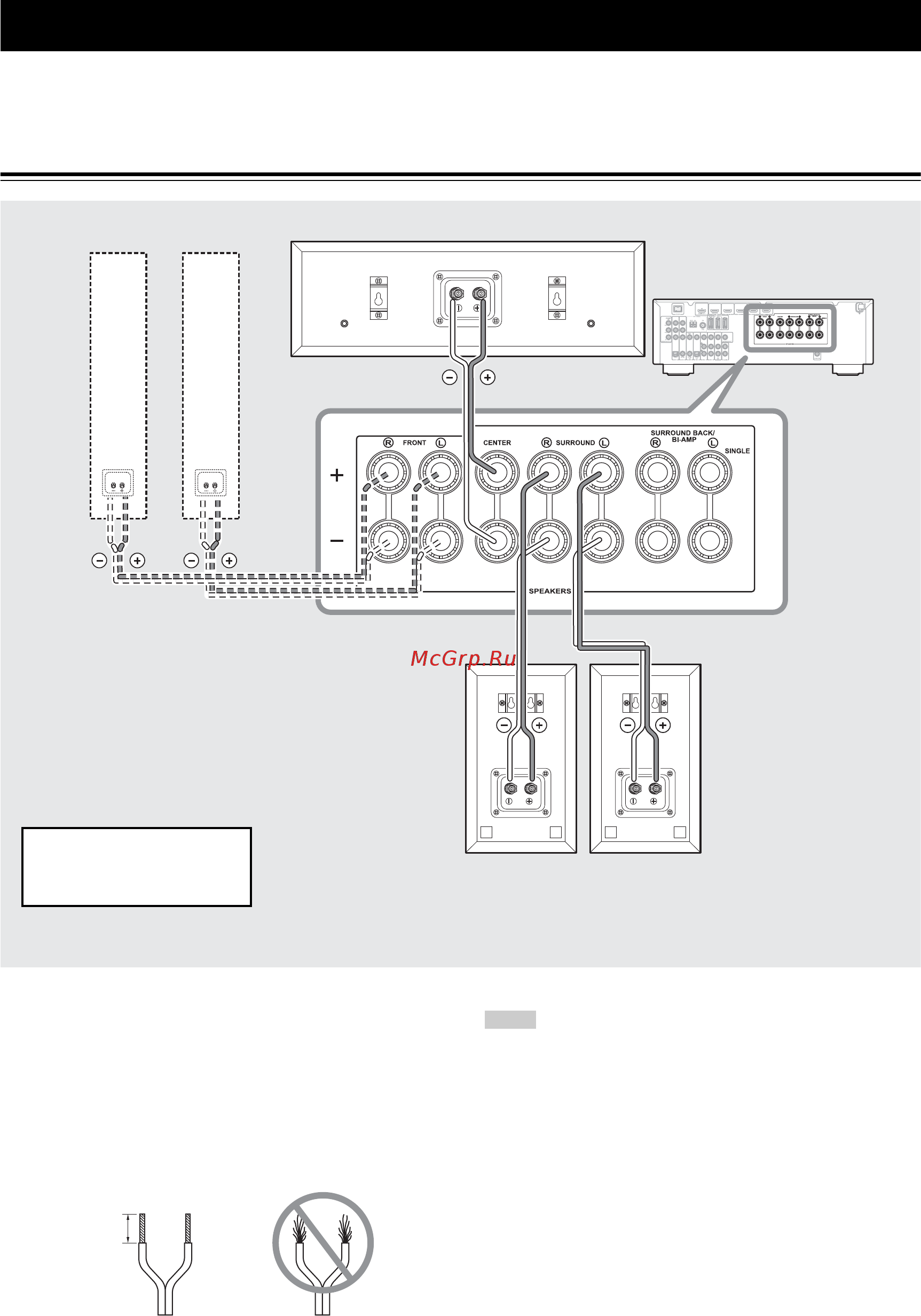

Connection diagram

■ Preparing the speaker cables

Once you’ve positioned the speakers, you’ll need to

prepare the speaker cables for connecting the

speakers.

1 Remove about 15 mm (5/8") of insulation from

the end of each speaker cable.

2 Twist the bare wires tightly.

• Do not bundle or roll up excess cable.

• Twist the bare wires tightly so the individual strands

are not splayed.

• Be careful not to injure yourself while preparing the

speaker cables.

Connecting the speakers

Center speaker

Amplifier

Front speakers

Note: The exact layout of

the speaker terminals

depends on your amplifier.

Surround speakers

Right Left

Good No Good

15 mm (5/8")

Note
