USER MANUAL ENGLISH ENGLISH USER MANUAL
Table top cooker & built - in cooker Table top cooker & built - in cooker
SECTION 2. INSTALLATION PREPARATIONS OF THE BUILT
-
IN COOKER INSTALLATION PREPARATIONS OF THE BUILT
-
IN GLASS COOKER
Figure 1
Figure 1
Figure 4
Figure 4
Figure 5
Figure 5
Figure 6
Figure 6
Figure 2
Figure 2
Figure 3
Figure 3

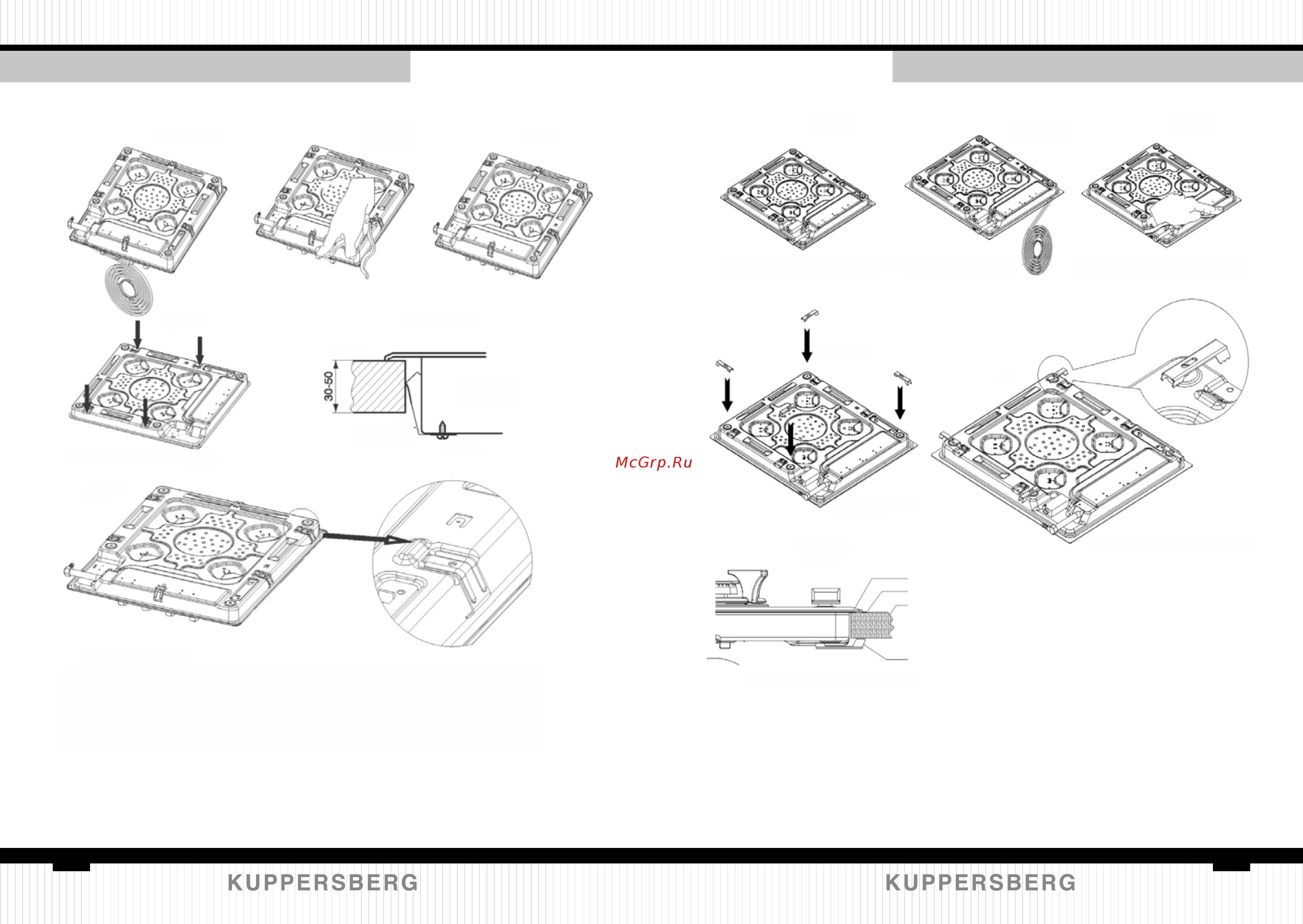

INSTALLATION OF COOKER
The cooker has a seal to prevent the liquids from owing from the gaps into the cabinet.
For xing this seal, attach it as shown in the gures above. Turn upside down the cooker and
remove the protective band of the rubber seal; both ends of it should meet perfectly. Install
the installation sheets by help of screw as shown in the gure 5. And then place the cooker
into the clearance of the worktop.
Worktop
Cooker
installation sheet
Fixing points for the installation sheet
screw
Put your cooker upside down in the
styrofoam taken from the package and
apply the silicone.
Installation foot
connection holes
Apply the silicone on
the glass surface.
Apply the supplied silicone around
the cooker as shown in the gure.
Glass
Silicone seal
Tray
Connection apparatus
The installed appearance of the
cooker should be as shown in the
gure.
PIace the installation
feet as shown in the
gure above.
INSTALLATION OF THE COOKER
The cooker has a seal to prevent the liquids from owing from the gaps into the cabinet.
For xing this seal, attach it as shown in the gures ahove. Turn upside down the cooker and
remove the protective band of the rubber seal; both ends of it should meet perfectly. Install
the installation sheets by help of screw as shown in the gure 5.
And then place the cooker into the clearance of the worktop.
