English

• Insert the Wall Plugs 11 into the holes.

• Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.

• Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B

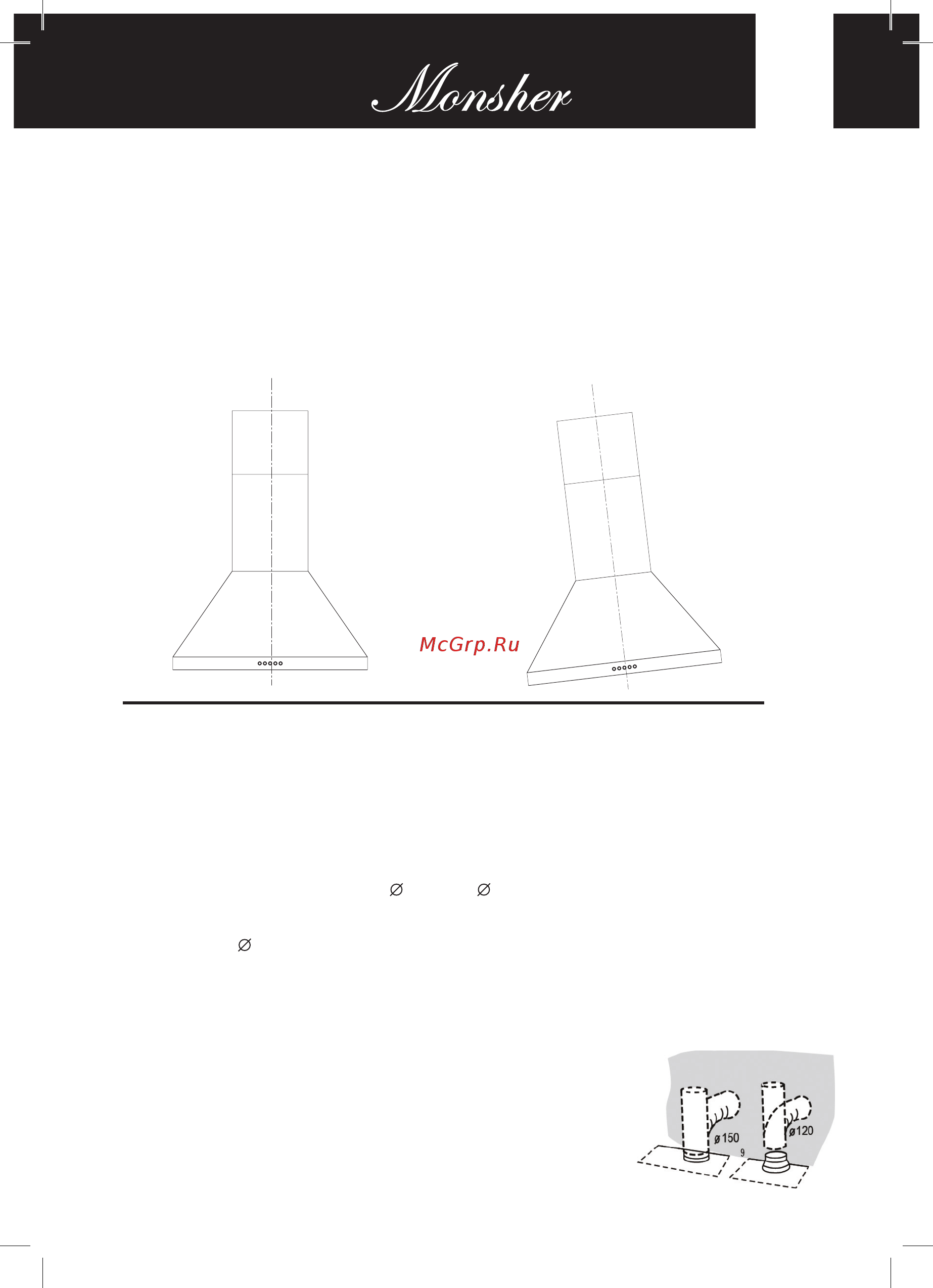

Hook the hood body

• Hook the hood body to the hood fixing bracket 20.

• Level the hood body itself.

• Remove the filter from the inside of the hood body, fix the screws 10 to Wall

Plugs 11 at the points (3)

Right Wrong

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

• When installing the ducted version, connect the hood to the chimney using

either a flexible or rigid pipe 1150 or 120 mm, the choice of which is left to

the installer.

• If to install a 120 mm air exhaust connection, insert the reducer flange 3 on the

hood body outlet.

• Fix the pipe 4 in position using sufficient pipe clamps (not supplied).

• Remove possible charcoal filters.
