TECHNICAL PASSPORT ENGLISH
Washing Dryer Machines
Hydraulic connections

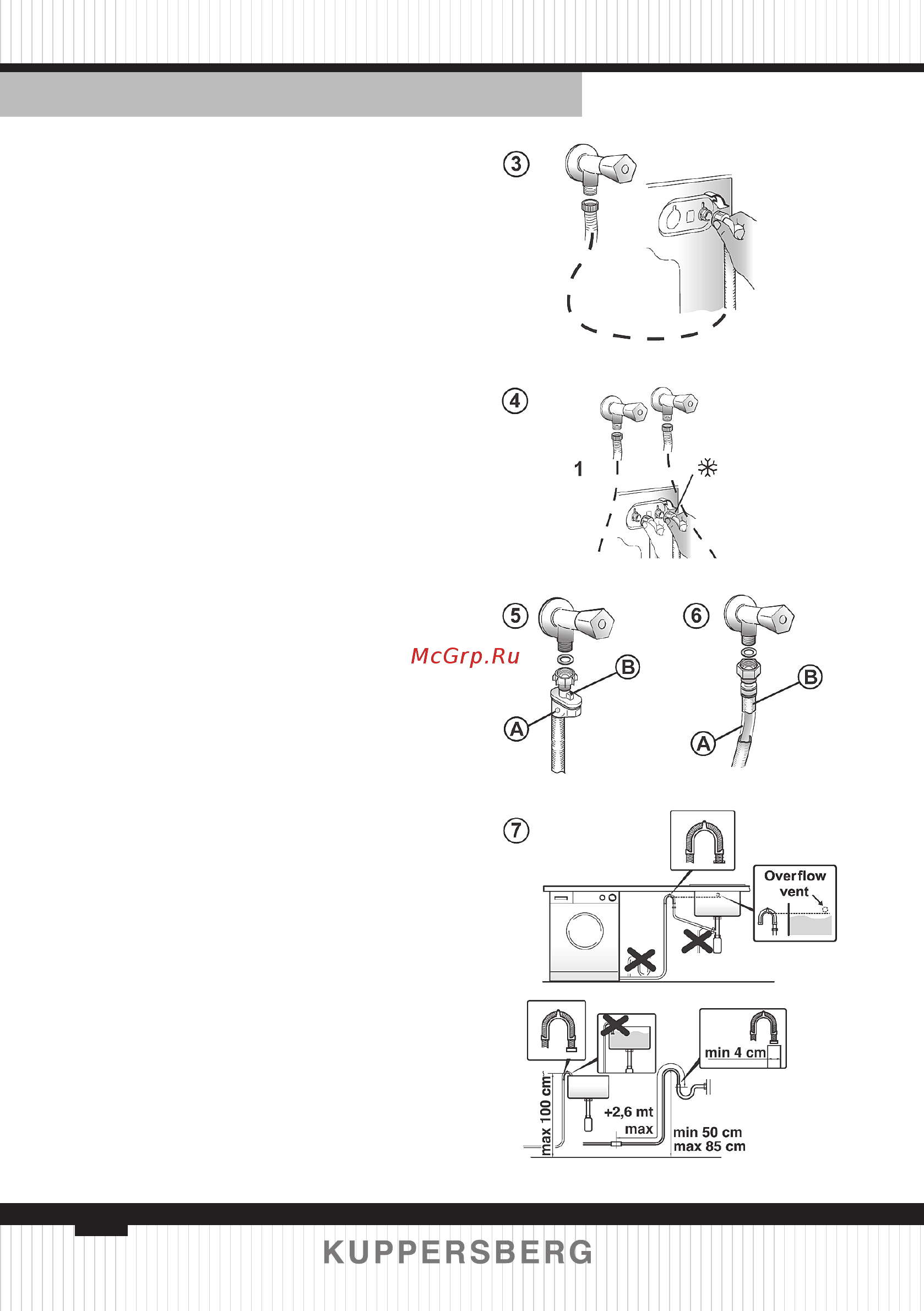

Connect the water hose to the
water supply tap (fi g. 3) only using the hose
supplied with the appliance (do not reuse
old hose-sets).
SOME MODELS may include one or
more of the following features:
HOT&COLD (fi g. 4):
water mains connection settings with
hot and cold water for higher energy
savings. Connect the grey tube to the cold
water tap % and the red one to the hot
water tap. The machine can be connected to
the cold water tap only: in this case, some
programs may start a few minutes later.
AQUASTOP (fi g. 5):
a device located on the supply tube that
stops water fl ow if the tube deteriorates;
in this case, a red mark will appear in the
window “A” and the tube must be replaced.
To unscrew the nut, press the one-way lock
device «B».
AQUAPROTECT SUPPLY TUBE WITH
GUARD (fi g. 6):
Should water leak from the primary
internal tube «A», the transparent
containment sheath «B» will contain water
to permit the washing cycle to complete. At
the end of the cycle, contact the Customer
Service Centre to replace the supply tube.
Setting
The washing machine should be
installed in its fi nal position such that the
water fi ll hose is not kinked or trapped.
The corrugated drain hose should be
inserted into suitable drain pipe of
between 50 cm and 85 cm height above
the fl oor using the curved drain hose
support. If an under sink connection is
used the drain hose must be routed above
the sink overfi ll opening to prevent back
siphoning. Care must be taken to avoid
kinking or trapping the drain hose (fi g. 7).
