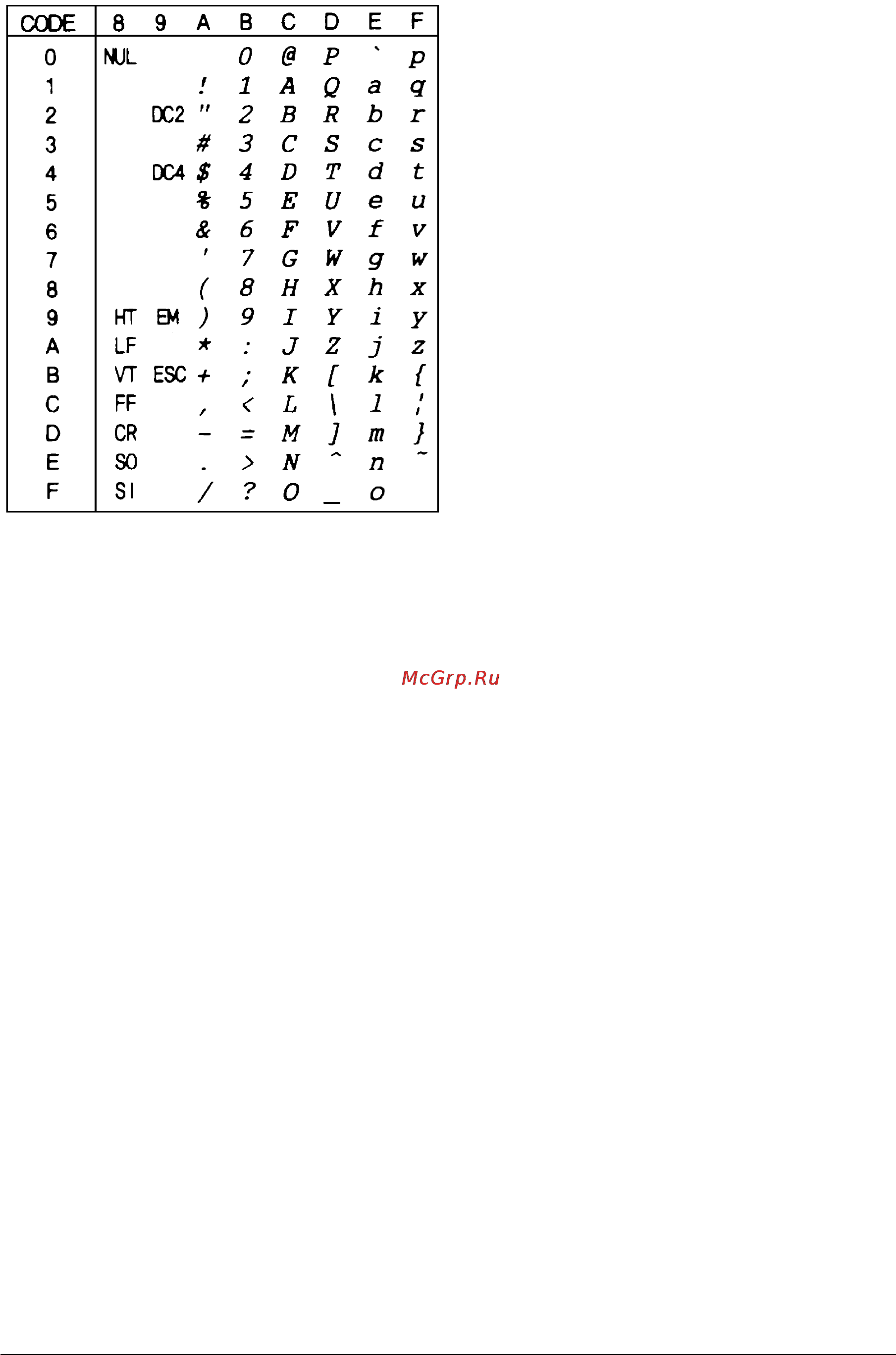

Epson Stylus Color 200 [120/133] Italic

Italic

No characters are available for

hex code 15 in the italic character

table

B-6

Commands and Character Tables
