Installing the color ink cartridge

Follow these steps to install the color ink cartridge:

1. Make sure the printer is turned on.

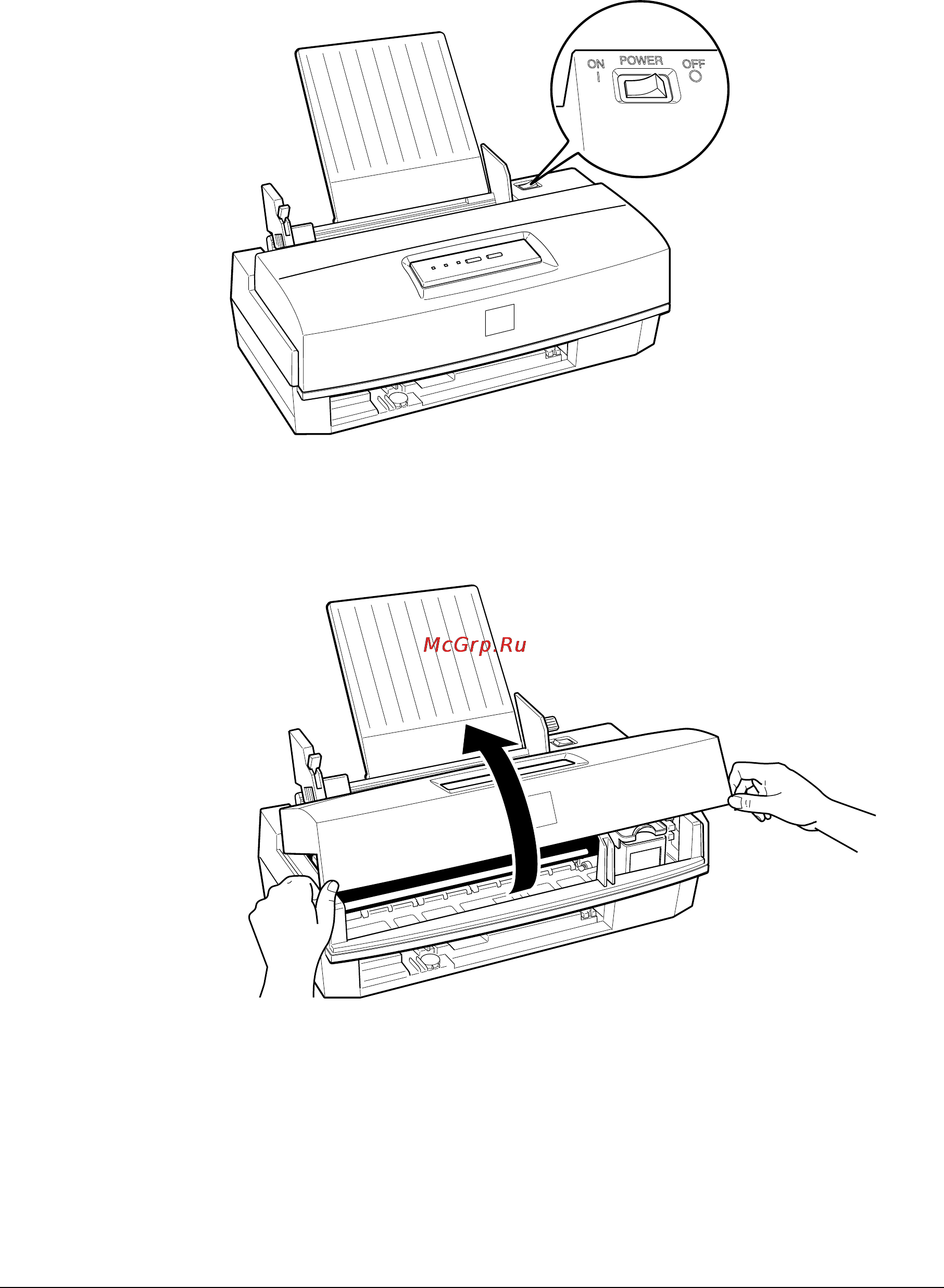

2. Raise the printer cover by lifting the edges, as shown below.

Setting Up the Printer

1-7
