For instructions on setting the lever for thick paper (or other

special media), see Chapter 3.

Loading Paper

This section explains how to load up to 100 sheets of plain

bond paper in the sheet feeder. (For instructions on loading

coated or glossy paper, envelopes, or transparencies, see

Chapter 3. For paper specifications, see Appendix A.)

Always load plain paper with the printable surface facing up.

The printable surface is marked with an arrow on most paper

packaging.

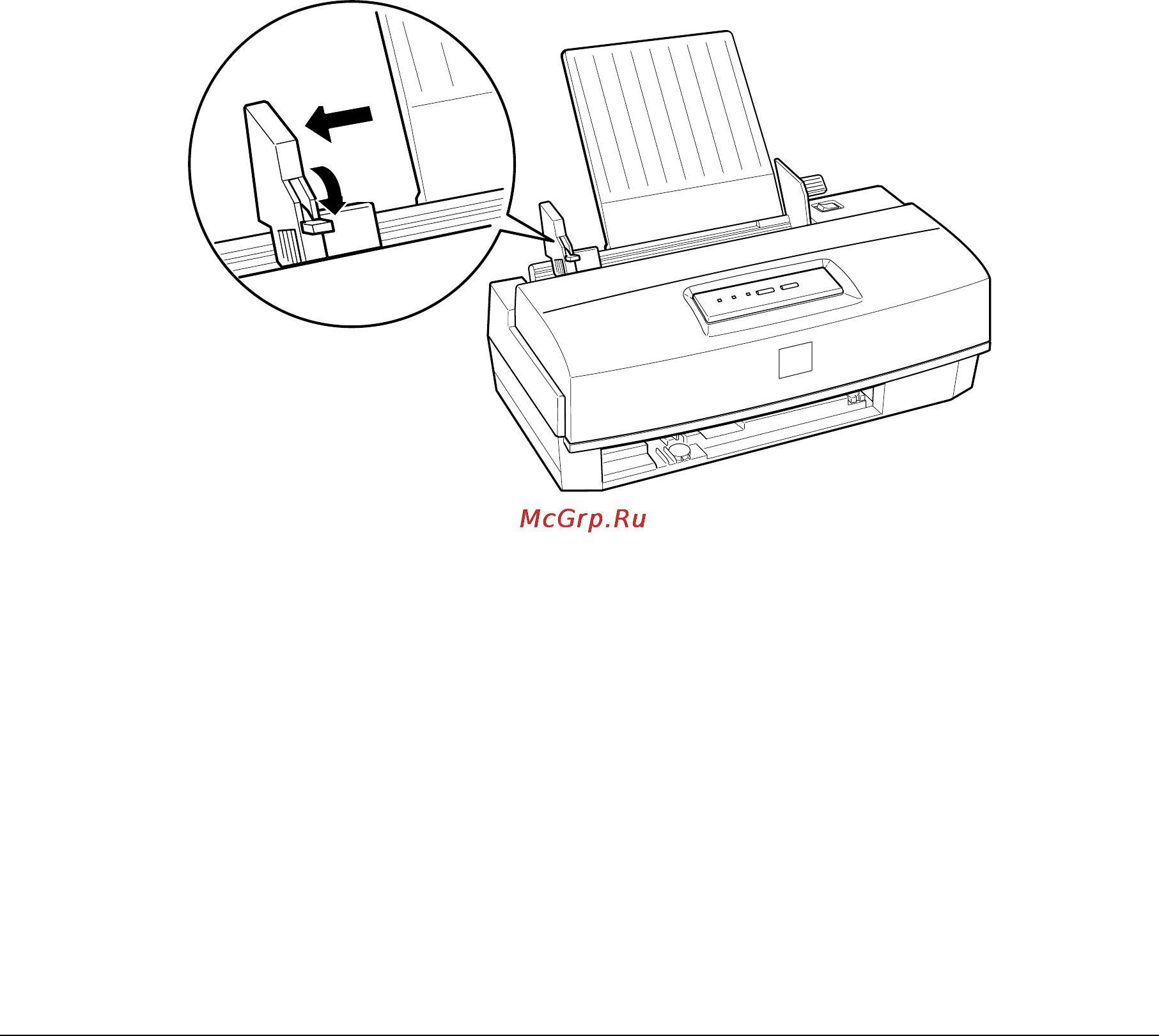

1. Push down the left edge guide lock lever; then slide the left

edge guide to the left as far as it will go.

Setting Up the Printer

1-15
