(The print head unit returns to the home position if you do

not proceed to step 4 within 60 seconds.)

Caution:

Never move the print head by hand; always use the

Load/Eject

button to move it.

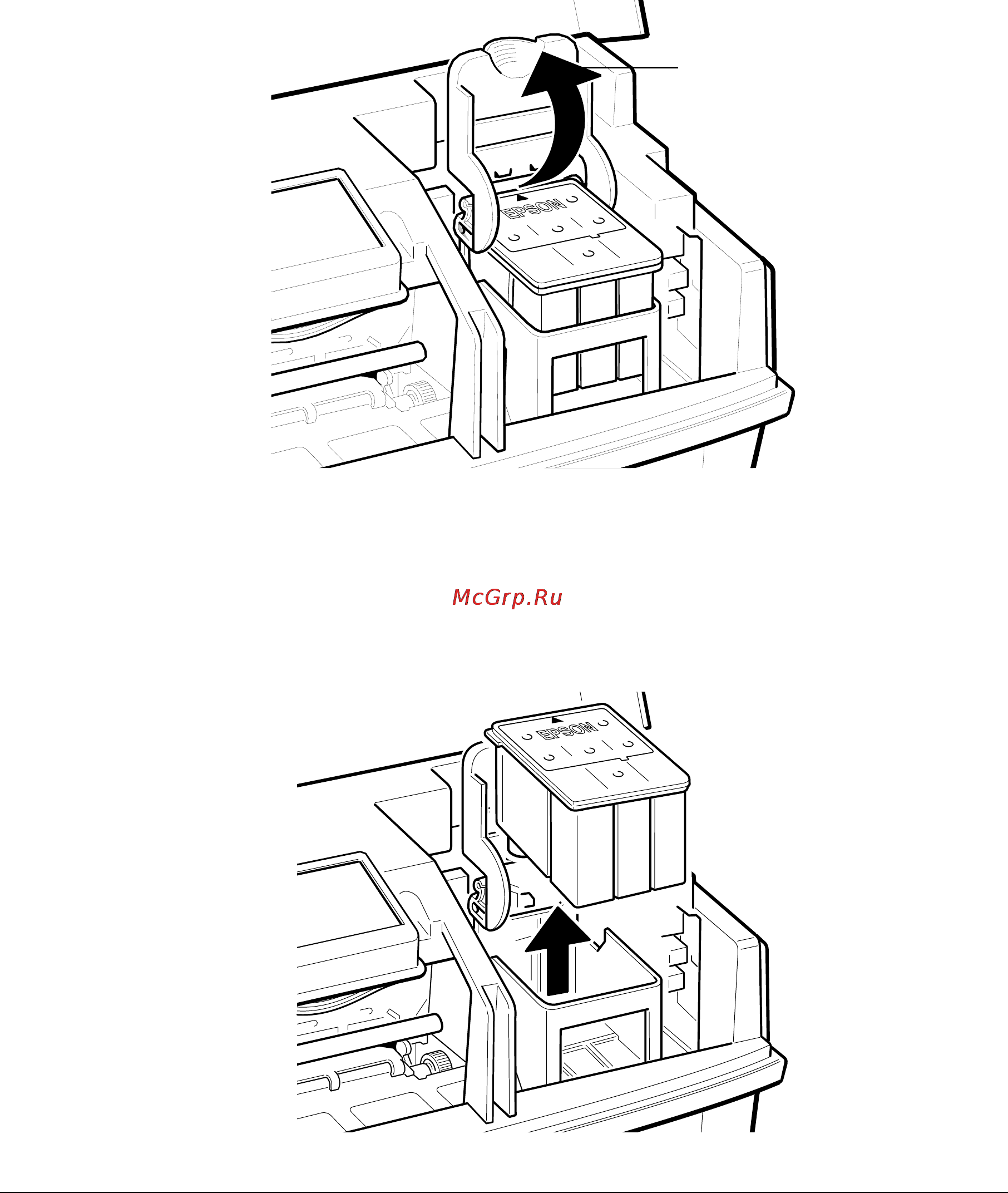

4. Raise the ink cartridge clamp to open it. The cartridge rises

partially out of the printer.

5. Lift the cartridge out of the printer and dispose of it carefully

so any excess ink does not spill out. Do not take the used

cartridge apart or try to refill it.

ink cartridge clamp

5-8

Maintenance
