Display
L
C
C

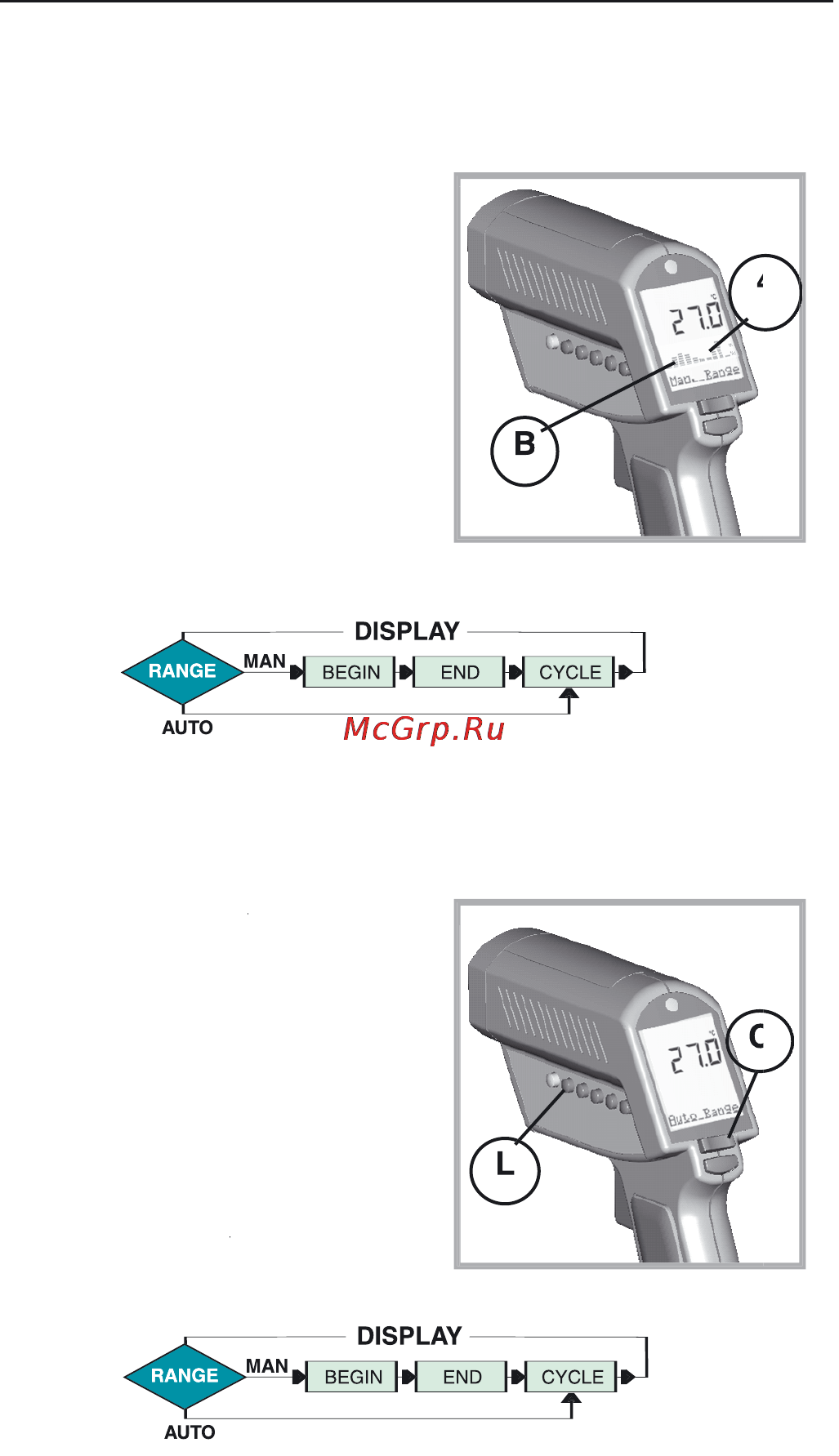

The graphic display (4)
shows the temperature as
a picture. The last ten
measurements are shown
(B). It is possible to choose
between Auto Range and
Manual Range. In manual
range the user defines the
beginning and ending
temperature points of the
graph.
B
4
4
Press DISPLA
Y
Press DISPLAYPress DISPLA
(L) once.
Use the Up and Down
keys (C) to toggle between
ranges.
Auto Range is
automatically defined by
the measured maximum
and minimum value.
Manual Range (Man
Range) is user defined
(see DISPLA
Y, BEGIN
(see DISPLAY, BEGIN (see DISPLA
section).
G
RAPHIC DISPLAY
AUTO OR MAN RANGE
