Содержание
- Gpf13de chassis 1
- Model no 1
- Plasma television 1
- Tx p42u20b tx p42u20e tx pr42u20 1
- Table of contents 2
- General guidelines 3
- Safety precautions 3
- Touch current check 3
- Prevention of electrostatic discharge esd to electrostatically sensitive es devices 4
- Warning 4
- About lead free solder pbf 5
- Pcb layout 6
- Service navigation 6
- Applicable signals 7
- Component y pb pr hdmi mark applicable input signal for component y pb pr and hdmi 7
- Note signals other than above may not be displayed properly the above signals are reformatted for optimal viewing on your display pc signal is magnified or compressed for display so that it may not be possible to show fine detail with sufficient clarity 7
- Pc from hdmi terminal applicable input signal for pc is basically compatible to hdmi standard timing 7
- Specifications 8
- Eeprom ic8950 for spare parts has the seed of key for each 2 the final key data will be generated by peaks ic ic8001 when self check was done and are stored in both peaks ic ic8001 and eeprom ic8950 three key are not generated for all models the necessary key are only generated and stored depend on the feature of models 10
- General information 10
- Model and keys 10
- Replacement of ics 10
- Specification of key for ci plus dtcp ip and one to one 10
- Technical descriptions 10
- When peaks ic ic8001 is replaced eeprom ic8950 should be also replaced with new one the same time when eeprom ic8950 is replaced peaks ic ic8001 is not necessary to be replaced the same time after the replacement of ic self check should be done to generate the final key data how to self check while pressing volume button on the main unit press menu button on the remote control for more than 3 seconds tv will be forced to the factory shipment setting after this self check 10
- How to enter into service mode 11
- Key command 11
- Service mode 11
- Contents of adjustment mode 12
- How to exit 12
- Display of sos history 13
- How to access 13
- Option mirror 13
- Power on time on off 13
- Service tool mode 13
- Hotel mode 14
- Purpose restrict a function for hotels 2 access command to the hotel mode setup menu in order to display the hotel mode setup menu please enter the following command within 2 second tv vol down remote av 3 times 14
- Then the hotel mode setup menu is displayed 14
- To exit the hotel mode setup menu disconnect ac power cord from wall outlet 4 explain the hotel mode setup menu 14
- Data copy by sd card 15
- Preparation 15
- Purpose 15
- Data copy from tv set to sd card 16
- Data copy from to sd card to tv set 17
- Check of the iic bus lines 18
- Check point 18
- How to access 18
- Screen display 18
- Self check indication and forced to factory shipment setting 18
- Self check indication only 18
- Troubleshooting guide 18
- Power led blinking timing chart 19
- No power 20

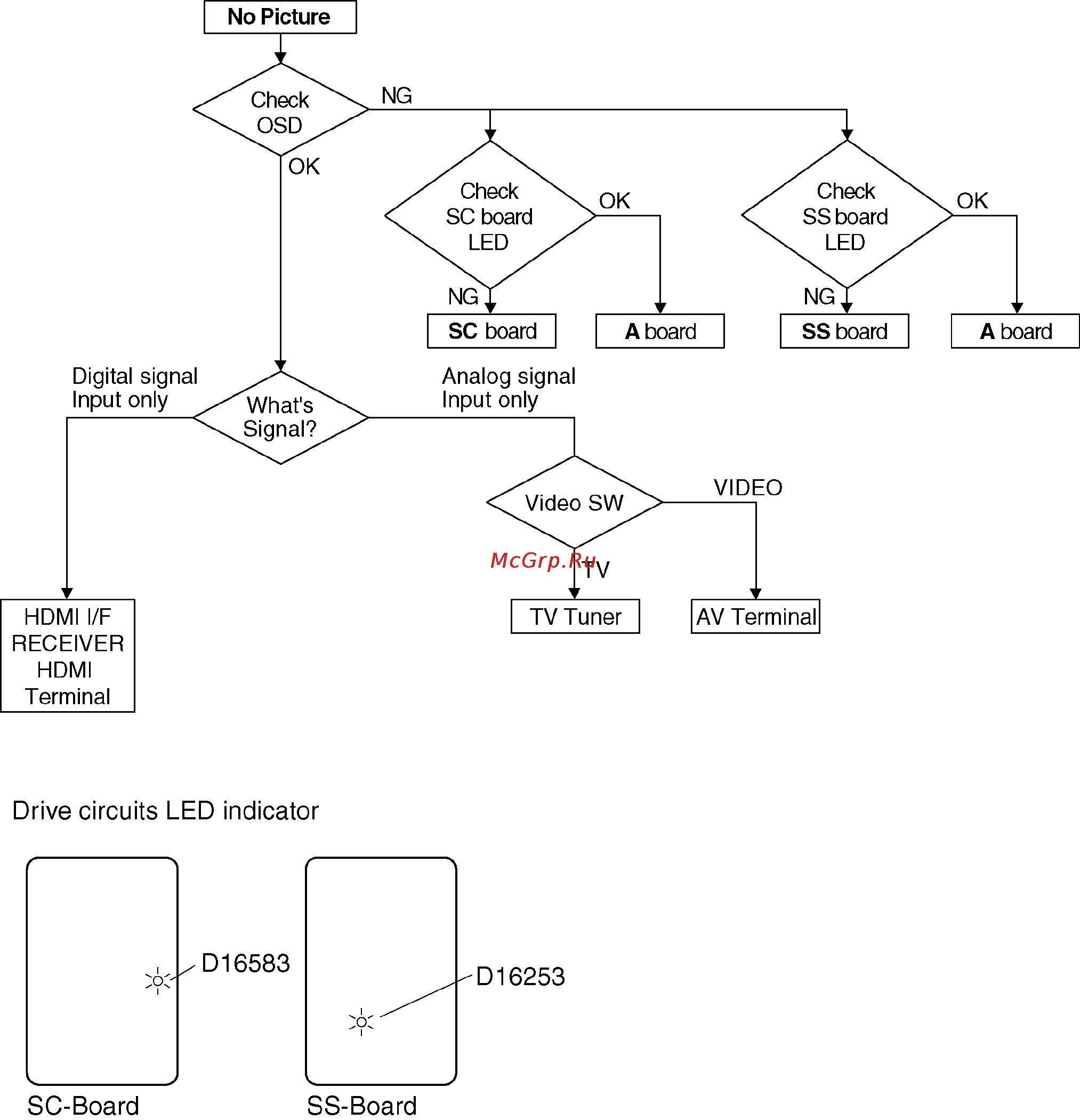

- No picture 21
- Local screen failure 22
- Sc jig 23
- Service fixture tools 23
- Disassembly and assembly instructions 24
- Remove the ac inlet 24
- Remove the p board 24
- Remove the rear cover 24
- Remove the side terminal cover and the side shield metal 24
- Remove the a board 25
- Remove the sm board 25
- Remove the speakers 25
- Remove the tuner unit 25
- Remove the hanger metals and the stand brackets 26
- Remove the sc board 26
- Remove the ss board 26
- Remove the ss2 board 26
- Remove the c1 board 27
- Remove the c2 board 27
- Remove the s board 27
- Remove the glass holders 28
- Remove the k board 28
- Remove the plasma panel sec tion from the cabinet assy glass 28
- Remove the plasma panel section from the cabinet assy glass 28
- Replace the plasma panel 28
- Adjustment 29
- Measurements and adjustments 29
- Vsus selection 29
- Sub contrast adjustment 30
- White balance adjustment 32
- Block diagram 33
- C a t s sensor 33
- Connector 33
- Data driver left 33
- Data driver right 33
- Digital signal processor 33
- Main block diagram 33
- Peaks sld 33
- Power led 33
- Power supply 33
- Power switch 33
- Remote receiver 33
- Scan drive sm 33
- Scan out 33
- Sustain 33
- Sustain drive 33
- Analog 34
- Ant in 34
- Audio amp 34
- Audio analog 34
- Audio i f 34
- Av i f 34
- Block 1 4 diagram 34
- Ci asic 34
- Ci ts cont 34
- Digital signal processor a 34
- Eeprom 34
- Hdmi i f receiver 34
- Hdmi in 1 34
- Hdmi in 2 34
- Ic1000 34
- Ic1100 34
- Ic2301 34
- Ic2870 34
- Ic2950 34
- Ic2952 34
- Ic2953 34
- Ic3000 34
- Ic3001 34
- Ic5401 34
- Ic5600 34
- Ic5601 34
- Ic5603 34
- Ic5604 34
- Ic8001 34
- Ic8300 34
- Ic8302 34
- Ic8400 34
- Ic8401 34
- Ic8402 34
- Ic8921 34
- Ic8950 34
- Jk3100b 34
- Jk3107a headphone 34
- Jk3302 34
- Jk4700 34
- Jk4701 34
- Jk8850 34
- Jk8940 34
- Mpu genx 34
- Nand flash 34
- Out i f 34
- Peaks sld 34
- Sd card 34
- Sub1 v 34
- Sub3 v 34
- Sub5 v 34
- Temp sensor 34
- Tu2901a 34
- X8001 x8000 34
- Analog asic 35
- Block 2 4 diagram 35
- Buffer 35
- C a t s sensor 35
- Cn0102 35
- Digital signal processor 35
- Discharge control 35
- Ic5000 35
- Ic9300 35
- Ic9304 35
- Ic9400 02 35
- Ic9800 35
- Ic9801 35
- Ic9803 35
- K remote receiver power led 35
- Key switch 35
- Plasma ai cpg with ss h v sync control sub filed processor 35
- Power_det 35
- Sc20 a20 35
- Block 3 4 diagram 36
- Ic903 ic901 36
- P power supply 36
- S power switch 36
- Block 4 4 diagram 37
- Connector sustain 37
- Data driver right c1 c2 data driver left 37
- Ic14601 03 37
- Ic14604 06 37
- Ic14801 03 37
- Ic14804 06 37
- Ic14901 02 04 37
- Ic16131 37
- Ic16151 37
- Ic16241 37
- Ic16251 37
- Ic16304 37
- Ic16312 37
- Ic16471 37
- Ic16490 91 37
- Ic16501 37
- Ic16521 37
- Ic16561 62 37
- Ic16563 37
- Ic16581 37
- Ic16661 37
- Ic16691 37
- Ic16692 37
- Ic16724 37
- Ic16771 37
- Ic16773 37
- Ic16784 85 37
- Ic16786 87 37
- Ic16792 93 37
- Ic16920 37
- Ic17101 37
- Ic17201 37
- Ic17202 37
- Pc16191 37
- Pc16301 37
- Scan drive sc 37
- Scan out sm 37
- Ss sustain drive 37
- Caution statement 39
- Wiring 1 39
- Wiring connection diagram 39
- Wiring 2 40
- Schematic diagram 41
- Schematic diagram note 41
- P board 1 4 schematic diagram 42
- 18 12 17 10 15 16 14 11 43
- P board 2 4 schematic diagram 43
- P board lsep1287behb 2 4 43
- 8 2 7 1 44
- P board 3 4 schematic diagram 44
- P board lsep1287behb 3 4 44
- 18 12 17 10 15 16 14 11 45
- P board 4 4 schematic diagram 45
- P board lsep1287behb 4 4 45
- A board 1 19 46
- A board 1 19 schematic diagram 46
- A board 2 19 47
- A board 2 19 schematic diagram 47
- Peaks sld 47
- A board 3 19 48
- A board 3 19 schematic diagram 48
- Peaks sld 48
- 30 33 29 36 32 35 28 31 49
- A board 4 19 49
- A board 4 19 schematic diagram 49
- 39 42 37 45 38 44 50
- A board 5 19 schematic diagram 50
- Ci slot sd card flash memory a board 5 19 50
- 49 52 51 50 51
- A board 6 19 51
- A board 6 19 schematic diagram 51
- Stb_mpu 51
- 59 61 58 52
- A board 7 19 52
- A board 7 19 schematic diagram 52
- 65 71 72 66 68 64 70 67 53
- A board 8 19 53
- A board 8 19 schematic diagram 53
- Audio amp 53
- R2256 10k 53
- A board 9 19 54
- A board 9 19 schematic diagram 54
- Tuner terminal 54
- A board 10 19 55
- A board 10 19 schematic diagram 55
- Video audio i o 55
- A board 11 19 56
- A board 11 19 schematic diagram 56
- Au1 2vcc 56
- Au_gnd 56
- Avsw_r014pin_s2det2 56
- Avsw_r020pin_s2det1 56
- Avsw_r051pin_r3out 56
- Avsw_r052pin_l3out 56
- Avsw_r053pin_r2out 56
- Avsw_r054pin_l2out 56
- Avsw_r055pin_r1out 56
- Avsw_r056pin_l1out 56
- Avsw_r062pin_l3in 56
- Avsw_r063pin_r3in 56
- Avsw_r064pin_l4in 56
- Avsw_r065pin_r4in 56
- Avsw_r070pin_l7in 56
- Avsw_r071pin_r7in 56
- Cvbsin7 56
- E_av1_slow 56
- E_av2_slow 56
- Fbin1 o1 56
- Fbin2 o2 56
- L10in l1out 56
- R10in r1out 56
- Rtate_out 56
- T_det10 fbout 56
- T_det5 5 cvbsin4 6 t_det4 7 cvbsin3 8 bg 9 yin3 10 s2_det3 11 r2 cin3 12 gnd 13 g2 yin2 14 s2_det2 15 b2 cin2 16 t_det3 17 cvbsin1 18 t_det2 19 g1 yin1 20 s2_det1 21 b1 cin1 22 t_det1 23 56
- 103 100 104 105 108 57
- A board 12 19 57
- A board 12 19 schematic diagram 57
- Tuner analog asic 57
- 111 114 112 110 109 58
- A board 13 19 58
- A board 13 19 schematic diagram 58
- Ar_stb_scl02 58
- Ar_stb_sda02 58
- D9805 b0jcpg000030 d9804 b0jcpg000030 58
- D_xrst 58
- Dc dc converter 58
- Dispen 58
- Drvmute 58
- Drvrst 58
- Internalp d 58
- Osd_vin 58
- P3v_scl02 58
- P3v_sda02 58
- P_on off 58
- Panel_main_on 58
- Pdp_drvrst 58
- Ra_e msb 58
- Ra_o msb 58
- Rclk_e 58
- Rclk_o 58
- Re_e lsb 58
- Re_o lsb 58
- Sc_uhz 58
- Sos4_ps 58
- Sos6_sc1 58
- Sos7_sc2 58
- Sos8_ss 58
- Sos_dcc 58
- Tclk1n 58
- Tclk1p 58
- Tclk2n 58
- Tclk2p 58
- To sc board sc20 58
- Tp9101 58
- Tp9102 58
- Tp9103 58
- Tp9104 58
- Tp9201 58
- Tp9202 58
- Xrst_sys 58
- 118 120 59
- 121 126 123 125 59
- A board 14 19 59
- A board 14 19 schematic diagram 59
- D clrd1 59
- D led1 59
- D oded1 59
- D pcd1 59
- D pcd2 59
- Dd1_1n 59
- Dd1_1p 59
- Dd1_2n 59
- Dd1_2p 59
- Dd2_1n 59
- Dd2_1p 59
- Dd2_2n 59
- Dd2_2p 59
- Dd3_1n 59
- Dd3_1p 59
- Dd3_2n 59
- Dd3_2p 59
- Dd4_1n 59
- Dd4_1p 59
- Dd4_2n 59
- Dd4_2p 59
- Dd5_1n 59
- Dd5_1p 59
- Dd5_2n 59
- Dd5_2p 59
- Dd6_1n 59
- Dd6_1p 59
- Dd6_2n 59
- Dd6_2p 59
- Dd7_1n 59
- Dd7_1p 59
- Dd7_2n 59
- Dd7_2p 59
- Dd8_1n 59
- Dd8_1p 59
- Dd8_2n 59
- Dd8_2p 59
- Drvclk1 59
- Drvclk1n 59
- Drvclk1p 59
- Drvclk2 59
- Drvclk2n 59
- Drvclk2p 59
- Drvclk3 59
- Drvclk3n 59
- Drvclk3p 59
- Drvclk4 59
- Drvclk4n 59
- Drvclk4p 59
- Drvclk5 59
- Drvclk5n 59
- Drvclk5p 59
- Key_scan 59
- Tp9115 59
- Tp9116 59
- Tp9117 59
- Tp9118 59
- Tp9119 59
- Tp9120 59
- Tp9121 59
- Tp9122 59
- Tp9123 59
- Tp9124 59
- Tp9125 59
- Tp9126 59
- Tp9127 59
- Tp9128 59
- Tp9129 59
- Tp9130 59
- Tp9131 59
- Tp9132 59
- Tp9133 59
- Tp9134 59
- Tp9135 59
- Tp9136 59
- Tp9137 59
- Tp9138 59
- Tp9139 59
- Tp9140 59
- Tp9141 59
- Tp9142 59
- Tp9143 59
- Tp9144 59
- Tp9145 59
- Tp9146 59
- Tp9147 59
- Tp9148 59
- Tp9149 59
- Tp9150 59
- Tp9151 59
- Tp9152 59
- Tp9153 59
- Tp9154 59
- Tp9155 59
- Tp9156 59
- Tp9193 59
- Tp9194 59
- Tp9195 59
- Tp9197 59
- Tp9900 59
- Tp9901 59
- Tp9902 59
- Tp9903 59
- Tp9904 59
- X9300 h0j200500076 59
- 129 132 60
- 133 127 131 134 60
- A board 15 19 60
- A board 15 19 schematic diagram 60
- D clrd2 60
- D led2 60
- D oded2 60
- D pcd3 60
- D pcd4 60
- Dd10_1 60
- Dd10_1n 60
- Dd10_1p 60
- Dd10_2 60
- Dd10_2n 60
- Dd10_2p 60
- Dd11_1 60
- Dd11_1n 60
- Dd11_1p 60
- Dd11_2 60
- Dd11_2n 60
- Dd11_2p 60
- Dd12_1 60
- Dd12_1n 60
- Dd12_1p 60
- Dd12_2 60
- Dd12_2n 60
- Dd12_2p 60
- Dd13_1 60
- Dd13_1n 60
- Dd13_1p 60
- Dd13_2 60
- Dd13_2n 60
- Dd13_2p 60
- Dd14_1 60
- Dd14_1n 60
- Dd14_1p 60
- Dd14_2 60
- Dd14_2n 60
- Dd14_2p 60
- Dd15_1 60
- Dd15_1n 60
- Dd15_1p 60
- Dd15_2 60
- Dd15_2n 60
- Dd15_2p 60
- Dd9_1n 60
- Dd9_1p 60
- Dd9_2n 60
- Dd9_2p 60
- Drvclk6 60
- Drvclk6n 60
- Drvclk6p 60
- Drvclk7 60
- Drvclk7n 60
- Drvclk7p 60
- Drvclk8 60
- Drvclk8n 60
- Drvclk8p 60
- Drvclk9 60
- Drvclk9n 60
- Drvclk9p 60
- Drvrst 60
- Drvsos8 60
- Sos8_ss 60
- Tp9157 60
- Tp9158 60
- Tp9159 60
- Tp9160 60
- Tp9161 60
- Tp9162 60
- Tp9163 60
- Tp9164 60
- Tp9165 60
- Tp9166 60
- Tp9167 60
- Tp9168 60
- Tp9169 60
- Tp9170 60
- Tp9171 60
- Tp9172 60
- Tp9173 60
- Tp9174 60
- Tp9175 60
- Tp9176 60
- Tp9177 60
- Tp9178 60
- Tp9179 60
- Tp9180 60
- Tp9181 60
- Tp9182 60
- Tp9183 60
- Tp9184 60
- Tp9185 60
- Tp9186 60
- Tp9187 60
- Tp9188 60
- Tp9189 60
- Tp9190 60
- Tp9191 60
- Tp9192 60
- Tp9198 60
- Tp9199 60
- Tp9205 60
- Tp9206 60
- Tp9905 60
- Tp9906 60
- Tp9907 60
- Tp9908 60
- Tp9909 60
- Tp9910 60
- Tp9911 60
- Tp9912 60
- Tp9913 60
- Tp9914 60
- Usl uml2_c 60
- 141 136 144 137 138 140 139 143 61
- A board 16 19 schematic diagram 61
- Peaks avc power a board 16 19 61
- 145 148 150 152 153 146 147 151 62
- A board 17 19 k board and s board schematic diagram 62
- Connector a board 17 19 62
- K board txn k1luue 62
- S board tnpa4858ab 62
- Sw5150 k0h1ba000445 62
- Sw5151 k0h1ba000445 62
- Sw5152 k0h1ba000445 62
- Sw5153 k0h1ba000445 62
- Sw5154 k0h1ba000445 62
- Tp2505 62
- 160 157 159 156 161 158 154 162 63
- A board 18 19 63
- A board 18 19 schematic diagram 63
- Peaks common 63
- 169 168 164 170 171 163 166 167 64
- A board 19 19 64
- A board 19 19 schematic diagram 64
- Dvb t c demodulator 64
- C1 board 1 2 schematic diagram 65
- C1 board tnpa5094 1 2 65
- 15 18 16 10 12 13 17 11 66
- C1 board 2 2 schematic diagram 66
- C1 board tnpa5094 2 2 66
- C2 board 1 2 schematic diagram 67
- C2 board tnpa5095 1 2 67
- 13 17 14 15 12 11 10 16 68
- C2 board 2 2 schematic diagram 68
- C2 board tnpa5095 2 2 68
- Sc board 1 4 schematic diagram 69
- Sc board txnsc11dek 1 4 69
- 13 18 12 11 14 17 10 16 70
- Sc board 2 4 schematic diagram 70
- Sc board txnsc11dek 2 4 70
- 22 21 23 24 25 26 20 19 71
- Sc board 3 4 schematic diagram 71
- Sc board txnsc11dek 3 4 71
- 33 30 31 32 36 28 35 29 72
- Aa_sos6 72
- Cathode 72
- Output 72
- R16826 10k 72
- Reference 72
- Sc board 4 4 schematic diagram 72
- Sc board txnsc11dek 4 4 72
- Sc46 sc41 sc42 72
- Vscn_f 72
- 1 3 2 8 73
- A ss board txnss11dek 1 2 73
- Aa_sos8 73
- Ss board 1 2 schematic diagram 73
- 17 15 10 18 11 12 16 14 74
- Ss board 2 2 and ss2 board schematic diagram 74
- Ss board txnss11dek 2 2 74
- Ss2 board 74
- Tnpa4802 74
- P board 75
- P board foil side lsep1287behb 75
- Printed circuit board 75
- P board component side 76
- P board foil side 76
- Parts location 76
- Test point 76
- Transistor 76
- Volume 76
- P board component side lsep1287behb 77
- 1 3 1 1 3 78
- 1 3 1 3 1 78
- A b c d e f g h i 78
- C10 c11 78
- Crno 5 78
- K board component side txn k1luue 78
- K board foil side txn k1luue 78
- K s and ss2 board 78
- O r d e r n o 78
- Order no 78
- R16 r19 78
- S board component side tnpa4858ab 78
- S board foil side tnpa4858ab 78
- S e e r e v e r s e f o r o r d e r n o 78
- See reverse for order no 78
- See reverse for orderno 78
- Ss2 board component side tnpa4802 78
- Ss2 board foil side tnpa4802 78
- Ss2mm2 ss2mm1 78
- Sw2500 78
- Tnpa4858 78
- Tnpa5143 78
- A b c d e f g h i 79
- A board 79
- A board foil side a p42u20b a p42u20e a pr42u20 79
- A21 a20 79
- Aftout 79
- Audioin 79
- Audioout 79
- B1 b2 a2 a1 79
- B21 b20 79
- Bactiveantenna 79
- Btmonitor 79
- Ic2951 79
- Ic2952 79
- Ic5000 79
- Ic5401 79
- Ic5600 79
- Ic5601 79
- Ic8300 79
- Ic8400 79
- Ic8921 79
- Ic8950 79
- Ic9802 79
- Ifdout1 79
- Ifdout2 ifmonitor 79
- Ifmonitor 79
- Ifmonitor ifdout2 ifdout1 79
- Jk3100 79
- Jk3302 79
- Q2903 q2904 79
- Rfagcmonitor 79
- Sifout 79
- Tu2901 79
- Videoout 79
- A b c d e f g h i 80
- A board component side a p42u20b a p42u20e a pr42u20 80
- C2071 c2072 80
- C2330 c2331 80
- C2332 c2333 80
- C3153 c3154 80
- Cn0101 80
- Cn0102 80
- Cn8700 80
- Cn8702 80
- D3131 c3155 80
- Fl8800 80
- Fl9901 80
- Fl9902 80
- Ic1000 80
- Ic1100 80
- Ic2301 80
- Ic2870 80
- Ic5604 80
- Ic8360 80
- Ic8361 80
- Ic8362 80
- Ic8401 80
- Ic9300 80
- Jk3100 80
- Jk3100b jk3100c 80
- Js3101 80
- Js3102 80
- Js3103 80
- Js3112 80
- R1504 vj8360 80
- R4023 r4024 80
- R8381 r8382 80
- R8385 r8386 80
- R8481 ic9801 80
- Td0900 80
- Td8405 80
- Td8406 80
- Td8407 80
- Td8413 80
- Td8414 80
- Td8415 80
- Td8416 80
- Td8702 80
- Td8705 80
- Td8707 80
- Td8800 80
- Td8801 80
- Td9016 80
- Td9026 80
- Td9055 80
- Td9057 80
- Td9098 80
- Td9118 80
- Td9119 80
- Td9120 80
- Td9121 80
- Td9131 80
- Td9134 80
- Td9135 80
- Td9136 td9137 80
- Td9309 80
- Td9325 80
- Td9336 80
- Td9337 80
- Td9339 80
- Td9340 80
- Td9352 80
- Td9385 80
- Td9386 80
- Td9389 80
- Td9390 80
- Td9395 80
- Td9396 80
- Td9397 80
- Td9398 80
- Td9901 80
- Td9902 80
- Td9903 80
- Td9904 80
- Td9905 80
- Vj8515 80
- Vj9900 80
- Vj9901 80
- Za1000 80
- Za1001 80
- A b c d e f g h i 81
- C1 board 81
- C1 board component side tnpa5094 81
- C1 board foil side tnpa5094 81
- O r d e r n o 81
- S e e r e v e r s e f o r o r d e r n o 81
- A b c d e f g h i 82
- C2 board 82
- C2 board component side tnpa5095 82
- C2 board foil side tnpa5095 82
- O r d e r n o 82
- S e e r e v e r s e f o r o r d e r n o 82
- 1 crno 6 1 tnpa5105 83
- A b c d e f g h i 83
- P 1 p t p 2 83
- S 2 s 1 83
- S e e r e v e r s e f o r o r d e r n o 83
- Sc board 83
- Sc board foil side txnsc11dek 83
- A b c d e f g h i 84
- Discharge 84
- O r d e r n o 84
- P 1 p t 84
- S 2 s 1 84
- Sc board component side txnsc11dek 84
- Tnpa5105 84
- Tpvscn 84
- 1 3 1 1 3 85
- 1 3 1 1 3 1 13 1 1 3 1 1 3 85
- 13 1 1 3 1 1 3 1 13 1 13 1 1 3 1 1 3 1 13 1 13 1 1 3 1 1 3 85
- Crno 6 85
- Ss board 85
- Ss board foil side txnss11dek 85
- Ss tnpa5106 85
- Ss53 ss55 ss56 ss61 ss63 ss64 85
- 13 1 13 1 13 86
- 13 13 1 86
- 13 13 1 1 13 13 1 86
- 13 13 1 13 1 86
- A b c d e f g h i 86
- C104 c105 86
- C201 c202 c203 86
- C317 c318 86
- Crno 6 86
- D316 d317 86
- Discharge 86
- Ic304 r280 86
- O r d e r n o 86
- R031 r032 r033 86
- R135 r136 86
- R161 r162 86
- Ss board component side txnss11dek 86
- Tnpa5106 1 86
- Tpvsus 86
- Exploded view 1 87
- Exploded view and mechanical replacement parts list 87
- Exploded view and replacement parts list 87
- Exploded view 2 88
- Packing 1 89
- Packing 2 90
- Mechanical replacement parts list 91
- Part no part name description q ty remarks 92
- Ref no 92
- Safety 92
- Part no part name description q ty remarks 93
- Ref no 93
- Safety 93
- Part no part name description q ty remarks 94
- Ref no 94
- Safety 94
- Electrical replacement parts list 95
- Replacement parts list notes 95
- Electrical replacement parts list 96
Похожие устройства
- Samsung MAX-X55 Инструкция по эксплуатации
- Bosch GSA 36 V-LI 0.601.645.R00 Инструкция по эксплуатации
- Synology Disk Station DS111 Инструкция по эксплуатации
- Alesis DM5PRO KIT С ТАРЕЛКАМИ SURGE Инструкция по эксплуатации
- Bosch Home Professional WAY 28540 OE Инструкция по эксплуатации
- Panasonic TX-PR42GT20 Инструкция по эксплуатации
- Samsung MAX-T55G Инструкция по эксплуатации
- AEG BMS 18C411944 Инструкция по эксплуатации
- Synology Disk Station DS110j Инструкция по эксплуатации
- Panasonic CQ-C5153W Инструкция по эксплуатации
- Alto PS5HA Инструкция по эксплуатации
- Samsung MAX-T55 Инструкция по эксплуатации
- Panasonic TX-PR42G20 Инструкция по эксплуатации
- Panasonic CY-VHD9401N Инструкция по эксплуатации
- AEG 411410 BUS 18 NiCd Инструкция по эксплуатации
- Samsung GALAXY Nexus Инструкция по эксплуатации
- Samsung MAX-T35 Инструкция по эксплуатации
- Alto PS5LA Инструкция по эксплуатации
- Hitachi RВ14DL HTC-RB14DL Инструкция по эксплуатации
- Panasonic CY-TUN133W Инструкция по эксплуатации
Скачать
Случайные обсуждения
Ответы 0
Неисправный светодиодный телевизор panasonic гаснет через 5 секунд ремонт своими руками
2 года назад
