Fluke 707 ex [12/24] Using the spancheck function

707Ex

Users Manual

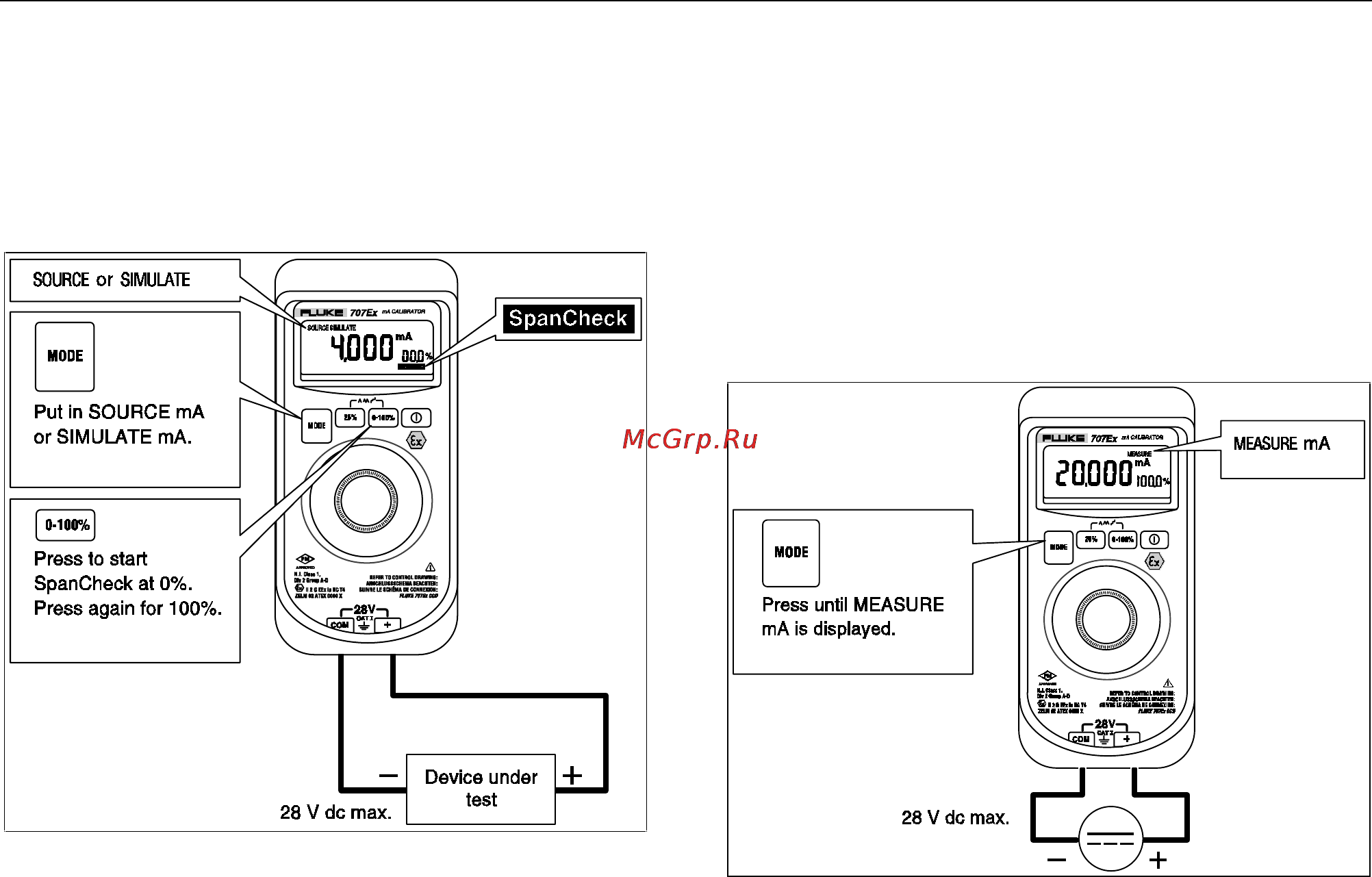

Using the SpanCheck Function

When in source mode the SpanCheck™ function checks

the zero and span points of a transmitter in either

SOURCE or SIMULATE mode.

To select SpanCheck, press C.

To exit, press any pushbutton or turn the knob.

AQV02F.EPS

Measuring dc mA

W Caution

To prevent damage to the unit under test,

ensure that the Calibrator is in the correct

mode before connecting the test leads.

To measure dc mA:

1. Press

to step to MEASURE mode.

MEASURE mA is displayed.

2. Touch the test probes to the circuit across the load or

power source as shown below. Connect the COM

probe first.

AQV03F.EPS
