Replacing the Battery

Warning

To avoid false readings, which could lead to

electric shock or injury, replace the battery as

soon as M (low battery indicator) appears on

the display.

Do not remove or install the battery within the

Ex-hazardous area.

Use only a single 9 V alkaline battery, properly

installed, to power the Calibrator. See the table

on next page for a list of approved batteries.

To replace the battery:

1. Remove the test probes from the input signal.

2. Press D to turn the Calibrator OFF.

3. Remove the test leads from the input terminals.

4. Remove the red holster.

5. Lift off the battery door on the back of the Calibrator

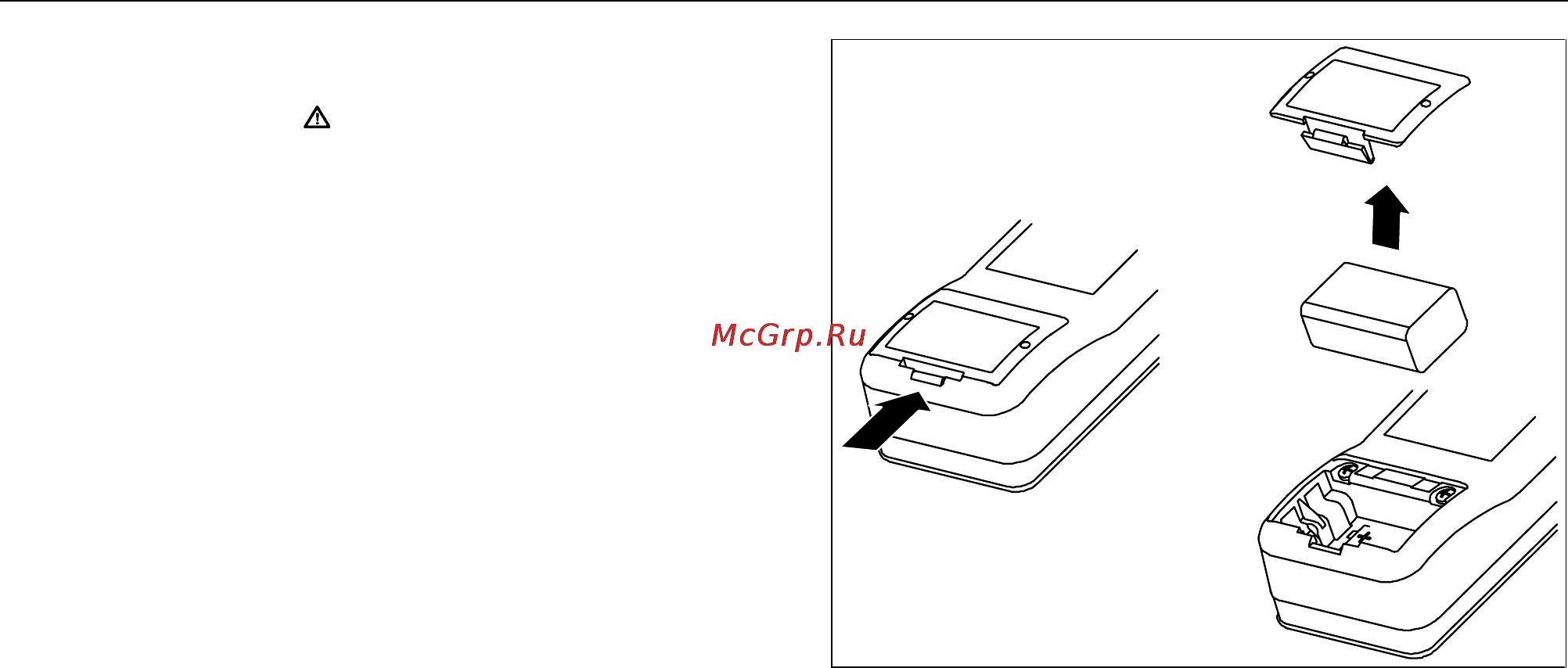

as shown.

6. Remove the battery.

7. Insert the replacement battery and install the battery

door. Make sure it is securely in place.

8. Return the Calibrator to its red holster.

AQV07F.EPS
