CONTENTS
Keep the remote controller where its
signals can reach the receiver of the
indoor unit. (a distance of 8m is allowed).
When you select the timer operation, the
remote controller automatically transmits
a signal to the indoor unit at the specified
time.
If you keep the remote controller in a
position that hinders proper signal
transmission, a time lag of up to 15
minutes may occur.

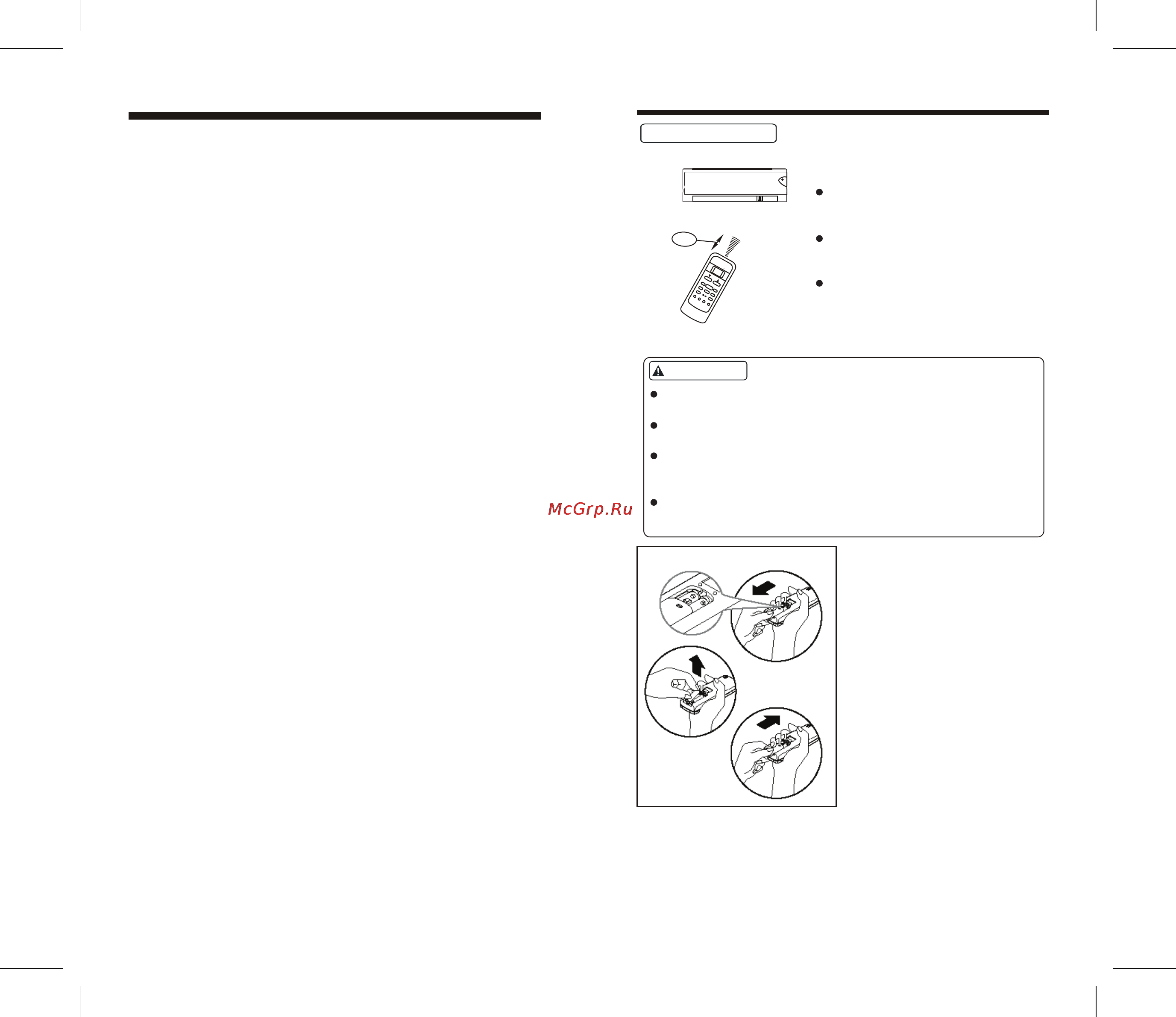

Location of the remote controller.
8m
CAUTIONS
The air conditioner will not operate if curtains, doors or other
materials block the signals from the remote controller to the indoor
unit.
Prevent any liquid from falling into the remote controller. Do not
expose the remote controller to direct sunlight or heat.
If the infrared signal receiver on the indoor unit is exposed to direct
sunlight, the air conditioner may not function properly. Use curtains
to p
revent the sunlight from falling on the receiver.
If other electrical appliances react to the remote controller. either
move these appliances or consult your local dealer.
The remote controller uses two
alkaline dry batteries (R03/LR03X2)
(1) Slide the cover of the battery
compartment off according to the
arrow direction, then replace the
old batteries with new ones.
(2) Insert the new batteries making
sure that the(+) and (-) of battery
are installed correctly.
(3) Reattach the cover by sliding it
back into position.
NOTE: Do not use old batteries or
different type batteries or rechargeable
batteries, otherwise it may cause the
remote controller malfunction.
Replacing batteries
.
Handling the remote controller
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/
OFF
PLASMA
TIMER OFF
AIR
DIRECTION
RE
SET
L
OCK
SET TEMPERATURE()
SENSOR
L
ED
DISPLAY
TURBO
VENT
1
Кондиционер не сможет работать, если передаче сигнала от пульта ДУ
к внутреннему блоку мешают шторы, двери или другие препятствия.
Не допускайте попадания любой жидкости внутрь пульта ДУ. Берегите
пульт ДУ от воздействия прямого солнечного света или тепла.
Возможна неисправность кондиционера, если на инфракрасный
приемник сигнала на внутреннем блоке попадет прямой солнечный
свет. Чтобы этого не допустить, закройте шторы.
Если на сигналы пульта ДУ реагируют другие электроприборы, то
передвиньте их или обратитесь к продавцу.
СОДЕРЖАНИЕ
Уход за пультом ДУ3..........................................................1
Технические характеристики ДУ......................................2
Функции ДУ..........................................................................2
Кнопки пульта ДУ................................................................2
Индикаторы на экране...................................................... 5
Автоматический режим.....................................................6
Режимы COOL/HEAT/HEALTH...........................................7
Режим осушения.................................................................7
Работа с таймером.............................................................8
Экономичный режим....................................................... 11
Кнопки Reset и Lock........................................................ 12
Кнопка AIR DIRECTION.................................................... 12
Осторожно.........................................................................13
Рабочее положение пульта ДУ
Держать пульт ДУ так, чтобы его
сигнал попал на приемник внутреннего
блока (на расстоянии до 8 метров).
Если включен таймер, то пульт ДУ
автоматически передаст сигнал на
внутренний блок в заданное время.
Если что-то мешает нормальной
передаче сигнала, возможна задержка
с включением до 15 минут.
ОСТОРОЖНООСТОРОЖНО
УХОД ЗА ПУЛЬТОМ ДУ
Смена батарей
В пульте ДУ используются две сухие
щелочные батареи (R03/LR03X2).
(1) Снять крышку отделения для
батарей, сдвинув ее по стрелке,
затем заменить старые батареи
новыми.
(2) Вставить новые батареи в
соответствии с указателями
(+) и (-).
(3) Задвинуть крышку на место.
ПРИМЕЧАНИЕ: Не устанавливайте
старые батареи, батареи разных
видов или заряжаемые батареи –
это может привести к неисправности
пульта.
Содержание
- Пульт дистанционного управления 1
- Air direction button function 2
- Automatic operation 2
- Cautions 2
- Contents 2
- Cooling heating fan only operation 2
- Drying operation 2
- Features of remote controller 2
- Handling the remote controller 2
- Indicators on remote controller 2
- Reset and lock buttons function 2
- Sleep button function 2
- Specifications 2
- Timer operation 2
- Автоматический режим 2
- Индикаторы на экране 5 2
- Кнопка air direction 12 2
- Кнопки reset и lock 12 2
- Кнопки пульта ду 2
- Осторожно 3 2
- Работа с таймером 2
- Режим осушения 2
- Режимы cool heat health 2
- Смена батарей 2
- Содержание 2
- Технические характеристики ду 2
- Уход за пультом ду3 2
- Функции ду 2
- Экономичный режим 11 2
- 5 c 60 c 3
- After setting the timer off there will be a one half second delay before the remote controller transmits the signal to the air conditioner 3
- Environment temperature range 3
- If the same time is set for both start and stopping settings the stopping time will automatically increase 0 hr the set time displays less than 10hr or one hour the set time displays 10hr or more to change the timer on off time just press the corresponding timer button and reset the time 3
- Indoor setting temperature range 17 c 30 c 3
- Introduction of function buttons on the remote controller 3
- Lcd liquid crystal display of functions 3
- Lowest voltage of cpu emitting signal 3
- M when using 3 voltage it gets 11m 3
- On off button push this button to start operation push the button again to stop operation 3
- Operating mode cool heat dry fan only and auto 3
- Performance features 3
- Push the button again to set the time you want to stop the operation timer off 3
- Push the button and the remote controller will show the last set time for the stopping operation and the signal hr will be shown on the timer display area you are now ready to reset the time of the stop operation 3
- Push the button the remote controller will show the last set time for start operation and the signal hr will be shown on the timer display area you are now ready to readjust the to start the operation 3 push the button again to set the time you want to start the operation 3 push the button the remote controller will show the last set time for stop operation and the signal hr will be shown on the timer display area you are now ready to reset the time to stop operation 3 push the button again to set the time you want to stop the operation 3 after setting the timer there will be a one half second delay before the remote controller transmits the signal to the air conditioner 3
- R71a e 3
- Rated voltage 3
- Reaching distance 3
- Remote controller specification 3
- Set the starting stopping time 3
- The setting time is relative time that is the time set is based on the delay of the current time 3
- Timer off 3
- Timer off off timer 3
- Timer on on timer 3
- Timer on timer on 3
- Timer setting function in 24 hours 3
- To set the stopping time 3
- Кнопки пульта ду 3
- М при напряжении 3 в 11 м 3
- Технические характеристики ду 3
- Функции ду 3
- On off button push this button to start operation push the button again to stop operation 4
- Remote controller specification 4
- And 28 c 3 fan speed button fan speed press to select auto low med and high 4 on off button press the on off button to start the air conditioner the operation indicator on the display panel of the indoor unit illuminates the operating mode is selected in accordance with the room temperature and operation starts after approximately 3 minutes if you select health mode the unit will start immediately 5
- Auto operation 5
- Comfortable temperature is between 21 c 5
- Ensure unit is plugged and power is available 1 mode select button mode press to select cool heat reverse cycle models only or health mode 2 temperature button temp set the desired temperature the most 5
- Ensure unit is plugged and power is available the operation indicator on the display panel of the indoor unit starts flashing 1 mode select button mode press to select dry 2 temperature button temp push the temp button to set the desired temperature 3 on off button press the on off button to start the air conditioner no fan speed indicator displays the indoor fan speed will be automatically selected low 5
- On off button push this button again to stop the air conditioner 5
- On off button push this button to start operation push the button again to stop operation 5
- Performance features 5
- Remote controller specification 5
- Auto on operation the timer on feature is useful when you want the unit to turn on automatically before say when you return home the air conditioner will automatically start operating at the set time 6
- Example 6
- Note the fan speed cannot be adjusted when the unit is in auto and dry mode 6
- On off button push this button again to stop the air conditioner 6
- On off button push this button to start operation push the button again to stop operation 6
- Press the timer on button the remote controller shows timer on the last auto on setting time and the signal h will be shown on the lcd display area now it is ready to reset the auto on time to start the operation 2 push the timer on button again to set desired auto on time each time you press the button the time increases by half an hour between 0 and 10 hours and by one hour between 10 and 24 hours 3 after setting the timer on there will be a one half second delay before the remote controller transmits the signal to the air conditioner then after approximately another 2 seconds the signal h will disappear and the set temperature will re appear on the lcd display window 6
- Remote controller specification 6
- Timer on 6
- To set the auto off time 1 press the timer off button the remote controller shows timer off the last auto off setting time and the signal h will be shown on the lcd display area now it is ready to reset the auto off time to start the operation 2 push the timer off button again to set desired auto off time each time you press the button the time increases by half an hour between 0 and 10 hours and by one hour between 10 and 24 hours 3 after setting the timer off there will be a one half second delay before the remote controller transmits the signal to the air conditioner then after approximately another 2 seconds the signal h will disappear and the set temperature will re appear on the lcd display window 6
- To start the air conditioner in 6 hours 1 press the timer on button the last setting of starting operation time and the signal h will show on the display area 2 press the timer on button to display 6 0h on the timer on display of the remote controller 3 wait for 0 second and the timer on indicator stops flashing and this function is activated the digital display area will show the tempera ture again 6
- When you select the timer operation the remote controller automatically transmits the timer signal to the indoor unit for the specified time therefore keep the remote controller in a location where it can transmit the signal to the indoor unit properly the effective operation time set by the remote controller for the timer function is limited to the following settings 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 and 24 6
- Sleep button function 7
- Осторожно 7
- Экономичный режим 7
- Air direction button function 8
- Cautions 8
- Reset and lock buttons function 8
- Кнопка air direction 8
- Кнопки reset и lock 8
- Осторожно 8
