Alpicair ADI/ADO-35HPR1B [4/8] Remote controller specification
![Alpicair ADI/ADO-35HPR1B [4/8] Remote controller specification](/views2/1054165/page4/bg4.png)
TIMER OFF Button: Press this button to activate the Auto-off time
setting. Each press will increase the time setting in 30 minutes
increments if the setting time is lower than 10 hours. When the
setting time reaches 10h, each press will increase the time setting
1 hour in increments. To cancel the Auto-off time setting, just press
the button until the time setting is 0.0.
LED DISPLAY Button: Press this button to clear the display on
the indoor unit, press it again to light the display .
LOCK Button: Press this recessed button to lock all current
settings, and the remote controller will not accept any operation
except that of the LOCK. Use the LOCK mode when you want to
prevent settings from being changed accidentally. Press the LOCK
button again to cancel the LOCK function. A lock symbol will appear
on the remote controller display when the lock function is activated.
TURBO Button: Push this button to activate the Turbo function in
which the air conditioner will go into powerful heating (in HEAT
mode) or cooling (in COOL mode) operation. Push again to cancel
the Turbo function.
Note: The unit system will automatically revert back to the
previous settings after continue operating under powerful
cooling mode for about half an hour.
13
16
14
15

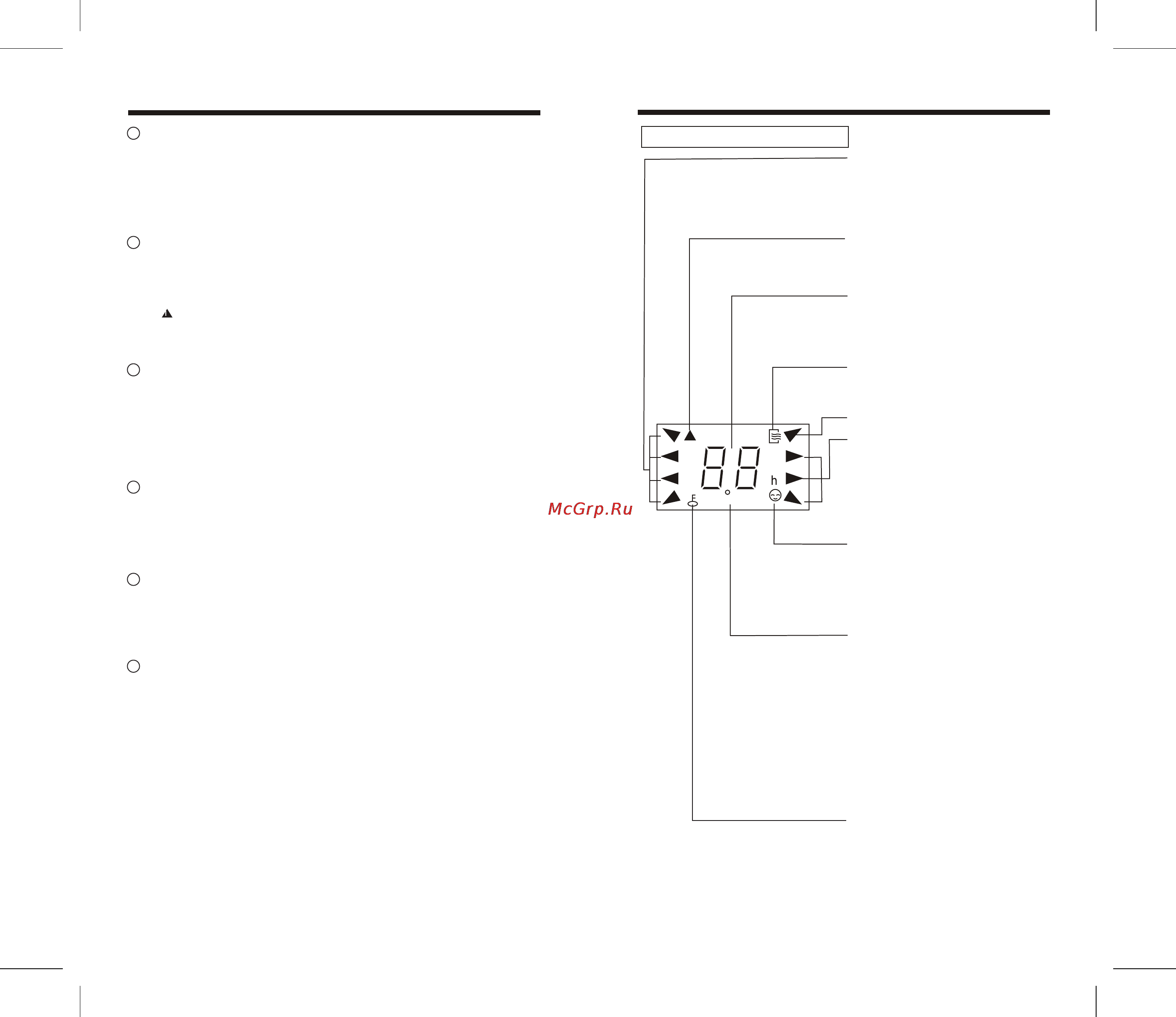

Indicators on Display Panel
TIMER ON OFF
SET TEMPERATURE
Transmission Indicator
Temp./Timer display
Fan speed display
Mode display
ON/OFF display
This transmission indicator will light
when remote controller transmits
signals to the indoor unit.
Displays the current selected mode.
Including AUTO, COOL, DRY, HEAT
(reverse cycle models only) and
HEALTH.
o
The temperature setting (from 17 C
o
to 30 C) or timer setting (0~24h) will
be displayed. If HEALTH mode is
selected, there will be no display.
This indicator will be displayed when
the unit is operating.
Displays the selected fan speed:
AUTO, HIGH, MED and LOW.
Nothing displays when the fan speed
is selected in AUTO speed. When
AUTO or DRY Mode is selected, there
will be no signals displayed.
This display area shows the settings
of the TIMER. That is, if only the
Auto-on time function is set, it will
display TIMER ON. If only the Auto-off
time function is set, it will display
TIMER OFF. If both functions are
set, it will display TIMER ON OFF
which indicates you have chosen both
the Auto-on time and Auto-off time.
LOCK display is displayed when
pushing the LOCK button. Push the
LOCK button to clear display.
4
5
Mode display(HEALTH mode)
FOLLOW ME display
When pressing FOLLOW ME button
in COOL or HEAT mode, the remote
sensing function is activated and this
indicator displays.
TIMER display
LOCK Indicator
11
TIMER ON Button: Press this button to activate the Auto-on time
setting. Each press will increase the time setting in 30 minutes
increments if the setting time is lower than 10 hours. When the
setting time reaches 10h, each press will increase the time setting
1 hour in increments. To cancel the Auto-on time setting, just
press the button until the time setting is 0.0.
NOTE: While the unit is running under SLEEP mode, it would
be cancelled if any other buttons are pressed.
SLEEP Button: Press this button to activate the Energy-Saving
mode. Press again to stop the function. This function is available
on COOL, HEAT or AUTO mode only and maintain the most
comfortable temperature for you.
12
11
12
13
14
15
16
Кнопка TIMER ON: Эта кнопка включает режим автоматического
включения по таймеру. Пока настраиваемое время меньше 10 часов,
с каждым нажатием кнопки настройка таймера будет увеличиваться
на 30 минут. Когда настраиваемое время дойдет до 10 часов, с
каждым нажатием кнопки настройка таймера будет увеличиваться на
1 час. Чтобы выключить режим автоматического включения, нужно
установить время включения 0.0.
Кнопка SLEEP: Кнопка переключения в экономичный режим
работы. Повторное нажатие выключает эту функцию. Функция
SLEEP используется только в режимах COOL, HEAT и AUTO для
поддержания наиболее комфортной для вас температуры.
ПРИМЕЧАНИЕ: Когда система работает в экономичном
режиме, нажатие любой другой кнопки выводит ее из этого
режима.
Кнопка TIMER OFF: Включает режим автоматического выключения
по таймеру. Пока настраиваемое время меньше 10 часов, с каждым
нажатием кнопки настройка таймера будет увеличиваться на 30
минут. Когда настраиваемое время дойдет до 10 часов, с каждым
нажатием кнопки настройка таймера будет увеличиваться на 1
час. Чтобы выключить режим автоматического выключения, нужно
установить время включения 0.0.
Кнопка LOCK: При нажатии углубленной кнопки LOCK фиксируются
все текущие настройки, и пульт ДУ не реагирует на любые команды,
кроме нажатия кнопки LOCK. Этот режим удобен для защиты от
случайного изменения настроек. Повторное нажатие кнопки LOCK
выключает «замок». Когда включен «замок», на экране пульта ДУ
появляется соответствующий индикатор.
Кнопка TURBO: Увеличивает мощность нагрева (в режиме HEAT)
или охлаждения (в режиме COOL). Повторное нажатие выключает
режим TURBO.
Примечание: Режим TURBO автоматически выключается
через полчаса непрерывной работы.
Кнопка LED DISPLAY: Выключает цифровой экран кондиционера.
Повторное нажатие включает цифровой экран.
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
Индикаторы на экране
Индикатор режима
Показывает текущий режим работы:
AUTO, COOL, DRY, HEAT (только
у моделей с обратным циклом) и
HEALTH.
Индикатор передачи
Этот индикатор загорается, когда
пульт ДУ передает сигналы на
внутренний блок.
Температура / Таймер
Показывает заданную температуру
(от 17 °C до 30 °C) или настройки
таймера (0~24 часа). В режиме
HEALTH экран не включается.
Индикатор ВКЛ/ВЫКЛ
Индикатор появляется при
включении кондиционера.
Индикатор режима HEALTH
Индикатор скорости вентилятора
Показывает выбранную скорость
вентилятора: AUTO, HIGH, MED и LOW.
Если установлена скорость AUTO,
индикатор не горит. Индикатор не горит
в режимах работы AUTO и DRY.
Индикатор FOLLOW ME
При нажатии кнопки FOLLOW ME в
режиме COOL или HEAT включается
датчик температуры и появляется этот
индикатор.
Экран таймера
В этой области показаны настройки
таймера. То есть, если включена
только функция включения по
таймеру, горит индикатор TIMER
ON. Если включена только функция
выключения по таймеру, горит
индикатор TIMER OFF. Если включены
обе функции, горит индикатор TIMER
ON OFF, показывая, что установлены
и время включения, и время
выключения.
Индикатор «замок»
Символ «замок» появляется при
нажатии кнопки LOCK. Повторное
нажатие кнопки LOCK очищает экран.
Содержание
- Пульт дистанционного управления 1
- Air direction button function 2
- Automatic operation 2
- Cautions 2
- Contents 2
- Cooling heating fan only operation 2
- Drying operation 2
- Features of remote controller 2
- Handling the remote controller 2
- Indicators on remote controller 2
- Reset and lock buttons function 2
- Sleep button function 2
- Specifications 2
- Timer operation 2
- Автоматический режим 2
- Индикаторы на экране 5 2
- Кнопка air direction 12 2
- Кнопки reset и lock 12 2
- Кнопки пульта ду 2
- Осторожно 3 2
- Работа с таймером 2
- Режим осушения 2
- Режимы cool heat health 2
- Смена батарей 2
- Содержание 2
- Технические характеристики ду 2
- Уход за пультом ду3 2
- Функции ду 2
- Экономичный режим 11 2
- 5 c 60 c 3
- After setting the timer off there will be a one half second delay before the remote controller transmits the signal to the air conditioner 3
- Environment temperature range 3
- If the same time is set for both start and stopping settings the stopping time will automatically increase 0 hr the set time displays less than 10hr or one hour the set time displays 10hr or more to change the timer on off time just press the corresponding timer button and reset the time 3
- Indoor setting temperature range 17 c 30 c 3
- Introduction of function buttons on the remote controller 3
- Lcd liquid crystal display of functions 3
- Lowest voltage of cpu emitting signal 3
- M when using 3 voltage it gets 11m 3
- On off button push this button to start operation push the button again to stop operation 3
- Operating mode cool heat dry fan only and auto 3
- Performance features 3
- Push the button again to set the time you want to stop the operation timer off 3
- Push the button and the remote controller will show the last set time for the stopping operation and the signal hr will be shown on the timer display area you are now ready to reset the time of the stop operation 3
- Push the button the remote controller will show the last set time for start operation and the signal hr will be shown on the timer display area you are now ready to readjust the to start the operation 3 push the button again to set the time you want to start the operation 3 push the button the remote controller will show the last set time for stop operation and the signal hr will be shown on the timer display area you are now ready to reset the time to stop operation 3 push the button again to set the time you want to stop the operation 3 after setting the timer there will be a one half second delay before the remote controller transmits the signal to the air conditioner 3
- R71a e 3
- Rated voltage 3
- Reaching distance 3
- Remote controller specification 3
- Set the starting stopping time 3
- The setting time is relative time that is the time set is based on the delay of the current time 3
- Timer off 3
- Timer off off timer 3
- Timer on on timer 3
- Timer on timer on 3
- Timer setting function in 24 hours 3
- To set the stopping time 3
- Кнопки пульта ду 3
- М при напряжении 3 в 11 м 3
- Технические характеристики ду 3
- Функции ду 3
- On off button push this button to start operation push the button again to stop operation 4
- Remote controller specification 4
- And 28 c 3 fan speed button fan speed press to select auto low med and high 4 on off button press the on off button to start the air conditioner the operation indicator on the display panel of the indoor unit illuminates the operating mode is selected in accordance with the room temperature and operation starts after approximately 3 minutes if you select health mode the unit will start immediately 5
- Auto operation 5
- Comfortable temperature is between 21 c 5
- Ensure unit is plugged and power is available 1 mode select button mode press to select cool heat reverse cycle models only or health mode 2 temperature button temp set the desired temperature the most 5
- Ensure unit is plugged and power is available the operation indicator on the display panel of the indoor unit starts flashing 1 mode select button mode press to select dry 2 temperature button temp push the temp button to set the desired temperature 3 on off button press the on off button to start the air conditioner no fan speed indicator displays the indoor fan speed will be automatically selected low 5
- On off button push this button again to stop the air conditioner 5
- On off button push this button to start operation push the button again to stop operation 5
- Performance features 5
- Remote controller specification 5
- Auto on operation the timer on feature is useful when you want the unit to turn on automatically before say when you return home the air conditioner will automatically start operating at the set time 6
- Example 6
- Note the fan speed cannot be adjusted when the unit is in auto and dry mode 6
- On off button push this button again to stop the air conditioner 6
- On off button push this button to start operation push the button again to stop operation 6
- Press the timer on button the remote controller shows timer on the last auto on setting time and the signal h will be shown on the lcd display area now it is ready to reset the auto on time to start the operation 2 push the timer on button again to set desired auto on time each time you press the button the time increases by half an hour between 0 and 10 hours and by one hour between 10 and 24 hours 3 after setting the timer on there will be a one half second delay before the remote controller transmits the signal to the air conditioner then after approximately another 2 seconds the signal h will disappear and the set temperature will re appear on the lcd display window 6
- Remote controller specification 6
- Timer on 6
- To set the auto off time 1 press the timer off button the remote controller shows timer off the last auto off setting time and the signal h will be shown on the lcd display area now it is ready to reset the auto off time to start the operation 2 push the timer off button again to set desired auto off time each time you press the button the time increases by half an hour between 0 and 10 hours and by one hour between 10 and 24 hours 3 after setting the timer off there will be a one half second delay before the remote controller transmits the signal to the air conditioner then after approximately another 2 seconds the signal h will disappear and the set temperature will re appear on the lcd display window 6
- To start the air conditioner in 6 hours 1 press the timer on button the last setting of starting operation time and the signal h will show on the display area 2 press the timer on button to display 6 0h on the timer on display of the remote controller 3 wait for 0 second and the timer on indicator stops flashing and this function is activated the digital display area will show the tempera ture again 6
- When you select the timer operation the remote controller automatically transmits the timer signal to the indoor unit for the specified time therefore keep the remote controller in a location where it can transmit the signal to the indoor unit properly the effective operation time set by the remote controller for the timer function is limited to the following settings 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 and 24 6
- Sleep button function 7
- Осторожно 7
- Экономичный режим 7
- Air direction button function 8
- Cautions 8
- Reset and lock buttons function 8
- Кнопка air direction 8
- Кнопки reset и lock 8
- Осторожно 8
Похожие устройства
- Epson Perfection 1270 Инструкция по эксплуатации
- Jamo S608 HCS 3 Black Ash Инструкция по эксплуатации
- Alpicair ADI/ADO-26HPR1B Инструкция по эксплуатации
- Mirage OMD-5-HB-1 Black Gloss Инструкция по эксплуатации
- Bork VC SMN 6403 GY Инструкция по эксплуатации
- Epson Perfection 1650 Инструкция по эксплуатации
- Attitude Bravo 30 Инструкция по эксплуатации
- Thomas Power Pack 1616 Инструкция по эксплуатации
- Epson Perfection 1660 Инструкция по эксплуатации
- Mirage OMD-15-HB-1 Black Gloss Инструкция по эксплуатации
- Arcam P90/3 Инструкция по эксплуатации
- Epson Perfection 1670 Инструкция по эксплуатации
- Mirage OMD-28-HB-1 Black Gloss Инструкция по эксплуатации
- Zanussi FLS 1083 Инструкция по эксплуатации
- Epson Perfection 2400 Инструкция по эксплуатации
- Mirage OMD-C1-HB-1 Black Gloss Инструкция по эксплуатации
- Attitude Alpha Sub 100 Инструкция по эксплуатации
- BBK DL385SI Инструкция по эксплуатации
- Epson Perfection 2480 Инструкция по эксплуатации
- Attitude Bravo Sub 100 Инструкция по эксплуатации
