In DRY mode, due to the temperature difference between the setting temperature
and the actual indoor temperature, the unit will automatically operate in COOL or
HEALTH mode.

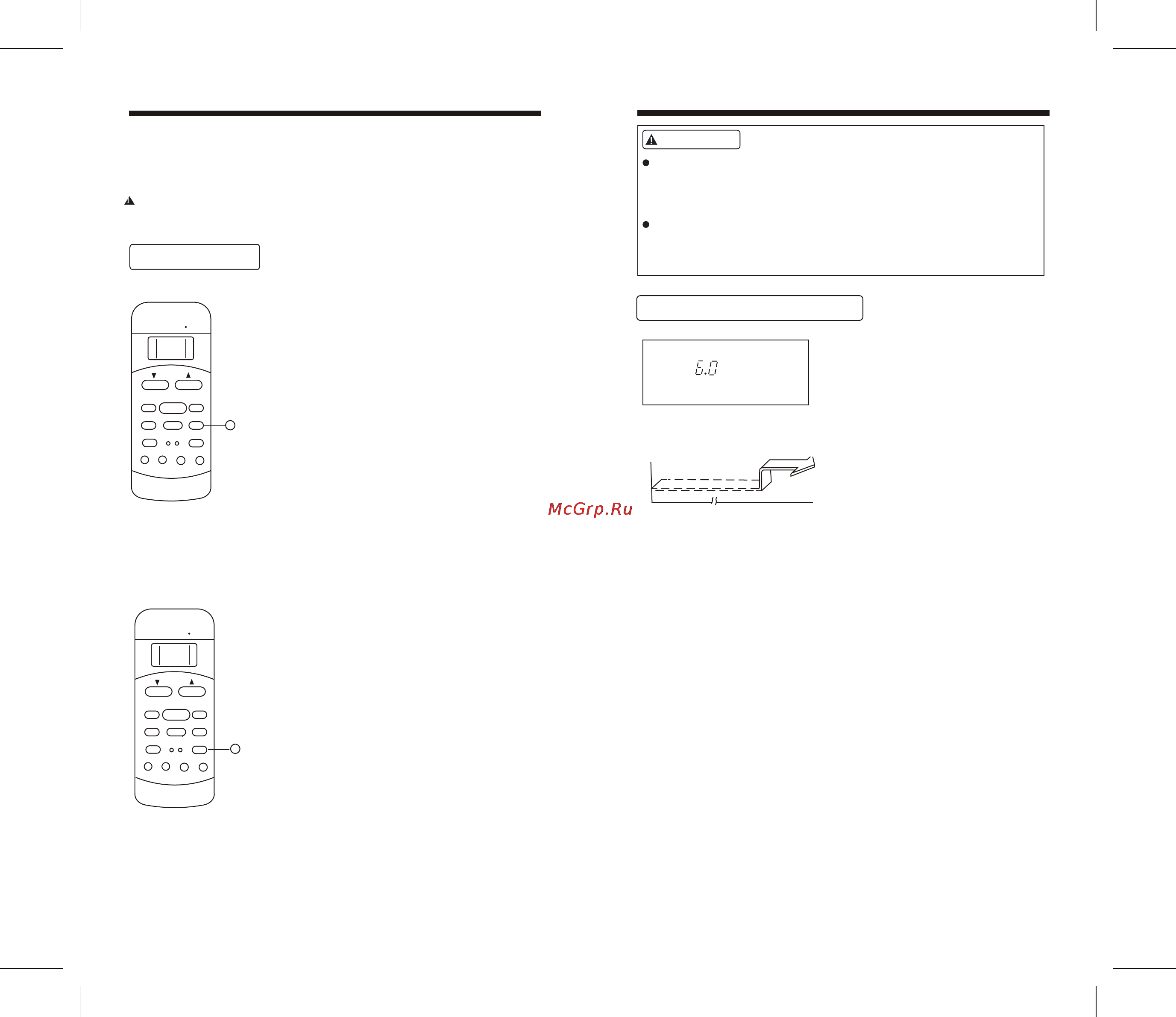

Timer operation
To press the TIMER ON button can set the auto-on
time of the unit. To press the TIMER OFF button
can set the auto-off time of the unit.
1. Press the TIMER ON button. The remote
controller shows TIMER ON, the last Auto-on
setting time and the signal "h" will be shown on
the LCD display area. Now it is ready to
reset the Auto-on time to START the operation.
2. Push the TIMER ON button again to set desired
Auto-on time. Each time you press the button,
the time increases by half an hour between 0
and 10 hours and by one hour between 10 and
24 hours.
3. After setting the TIMER ON ,there will be a one-
half second delay before the remote controller
transmits the signal to the air conditioner. Then,
after approximately another 2 seconds, the
signal "h" will disappear and the set temperature
will re-appear on the LCD display window.
To set the Auto-on time.
To set the Auto-off time.
1. Press the TIMER OFF button. The remote
controller shows TIMER OFF, the last Auto-off
setting time and the signal "h" will be shown on
the LCD display area. Now it is ready to
reset the Auto-off time to START the operation.
2. Push the TIMER OFF button again to set desired
Auto-off time. Each time you press the button,
the time increases by half an hour between 0
and 10 hours and by one hour between 10 and
24 hours.
3. After setting the TIMER OFF ,there will be a one-
half second delay before the remote controller
transmits the signal to the air conditioner. Then,
after approximately another 2 seconds, the
signal "h" will disappear and the set temperature
will re-appear on the LCD display window.
When you select the timer operation, the remote controller automatically
transmits the timer signal to the indoor unit for the specified time.
Therefore, keep the remote controller in a location where it can transmit
the signal to the indoor unit properly.
The effective operation time set by the remote controller for the timer
function is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0,
3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13,
14, 15,16,17, 18, 19, 20, 21, 22, 23 and 24.
CAUTION
!
Example of timer setting
TIMER ON
Start
Off
6 hours later
(Auto-on Operation)
The TIMER ON feature is useful
when you want the unit to turn on
automatically before say when you
return home. The air conditioner will
automatically start operating at the
set time.
To start the air conditioner in 6 hours.
1. Press the TIMER ON button, the
last setting of starting operation
time and the signal "h" will show
on the display area.
2. Press the TIMER ON button to display
"6:0h" on the TIMER ON display of
the remote controller.
3. Wait for 0.5 second and the TIMER
ON indicator stops flashing and this
function is activated. The digital
display area will show the tempera-
ture again.
TIMER ON
Example:
h
Set
ON/OFF button
Push this button again to stop the air conditioner.
Stop
Note: The fan speed cannot be adjusted when the unit is in AUTO and
DRY mode.
8
9
1
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME
LED
DISPLAY
CLEAN
AIR
TURBO
1
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME
LED
DISPLAY
CLEAN
AIR
TURBO
Выключение
Кнопка включения (ON/OFF)
Выключить кондиционер кнопкой ON/OFF.
Примечание: Скорость вентилятора не регулируется в режимах AUTO
и DRY.
В режиме DRY кондиционер автоматически переключается в режимы COOL или
HEALTH и DRY, определяя разницу между фактической температурой
в помещении и температурой, установленной на
пульте ДУ.
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOT E:
: Indicates optional
but ton.
M odels RG51M2/(C)E:
wit hout 14 and 15
but tons.
Mod els RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
Работа с таймером
Время включения по таймеру устанавливается
нажатием кнопки TIMER ON. Время выключения
по таймеру устанавливается нажатием кнопки
TIMER OFF.
Настройка времени включения по таймеру
1. Нажать кнопку TIMER ON. На экране пульта
ДУ появится TIMER ON, последнее
настроенное время включения по таймеру
и символ “h”. Теперь можно установить время
включения по таймеру.
2. Нажать кнопку TIMER ON еще раз и установить
время включения. В диапазоне от 0 до 10 часов
с каждым нажатием кнопки время
увеличивается на 30 минут, а в диапазоне от 10
до 24 часов – на 1 час.
3. После настройки времени включения по
таймеру наступит пауза 0,5 секунды, а затем
пульт ДУ передаст сигнал на кондиционер.
После этого, примерно через 2 секунды,
исчезнет буква h, и в цифровой области экрана
вновь появится установленная температура.
Настройка времени выключения по таймеру
1. Нажать кнопку TIMER OFF. На экране пульта
ДУ появится TIMER OFF, последнее
настроенное время выключения по таймеру
и символ “h”. Теперь можно установить время
выключения по таймеру.
2. Нажать кнопку TIMER OFF еще раз и
установить время выключения. В диапазоне от
0 до 10 часов с каждым нажатием кнопки время
увеличивается на 30 минут, а в диапазоне от 10
до 24 часов – на 1 час.
3. После настройки времени выключения по
таймеру наступит пауза 0,5 секунды, а затем
пульт ДУ передаст сигнал на кондиционер.
После этого, примерно через 2 секунды,
исчезнет буква h, и в цифровой области экрана
вновь появится установленная температура.
ОСТОРОЖНО
ОСТОРОЖНО
Если включен таймер, то пульт ДУ автоматически передаст сигнал
на внутренний блок в заданное время. Поэтому нужно держать
пульт в таком месте, чтобы его сигнал беспрепятственно дошел до
внутреннего блока.
Возможны следующие варианты настройки таймера: 0,5, 1,0, 1,5, 2,0,
2,5, 3,0, 3,5, 4,0, 4,5, 5,0, 5,5, 6,0, 6,5, 7,0, 7,5, 8,0, 8,5, 9,0, 9,5, 10, 11,
12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 и 24 часов.
Настройка таймера: пример
Через 6 часов
Настроено
Выключено
Включить
Настройка таймера: пример
TIMER ON
(Автоматическое включение)
Функция включения по таймеру полезна,
если вы, например, хотите, чтобы
кондиционер автоматически включился
к вашему возвращению домой.
Кондиционер автоматически включится в
заданное время.
Пример:
Включить кондиционер в 6 часов.
1. Нажать кнопку TIMER ON: на экране
появится последнее настроенное
время включения по таймеру и символ
“h”.
2. Кнопкой TIMER ON установить на
экране пульта ДУ время «6:0h».
3. Подождать 0,5 секунды, индикатор
TIMER ON перестанет мигать, и
функция будет включена. На
экране снова появится заданная
температура.
Содержание
- Пульт дистанционного управления 1
- Air direction button function 2
- Automatic operation 2
- Cautions 2
- Contents 2
- Cooling heating fan only operation 2
- Drying operation 2
- Features of remote controller 2
- Handling the remote controller 2
- Indicators on remote controller 2
- Reset and lock buttons function 2
- Sleep button function 2
- Specifications 2
- Timer operation 2
- Автоматический режим 2
- Индикаторы на экране 5 2
- Кнопка air direction 12 2
- Кнопки reset и lock 12 2
- Кнопки пульта ду 2
- Осторожно 3 2
- Работа с таймером 2
- Режим осушения 2
- Режимы cool heat health 2
- Смена батарей 2
- Содержание 2
- Технические характеристики ду 2
- Уход за пультом ду3 2
- Функции ду 2
- Экономичный режим 11 2
- 5 c 60 c 3
- After setting the timer off there will be a one half second delay before the remote controller transmits the signal to the air conditioner 3
- Environment temperature range 3
- If the same time is set for both start and stopping settings the stopping time will automatically increase 0 hr the set time displays less than 10hr or one hour the set time displays 10hr or more to change the timer on off time just press the corresponding timer button and reset the time 3
- Indoor setting temperature range 17 c 30 c 3
- Introduction of function buttons on the remote controller 3
- Lcd liquid crystal display of functions 3
- Lowest voltage of cpu emitting signal 3
- M when using 3 voltage it gets 11m 3
- On off button push this button to start operation push the button again to stop operation 3
- Operating mode cool heat dry fan only and auto 3
- Performance features 3
- Push the button again to set the time you want to stop the operation timer off 3
- Push the button and the remote controller will show the last set time for the stopping operation and the signal hr will be shown on the timer display area you are now ready to reset the time of the stop operation 3
- Push the button the remote controller will show the last set time for start operation and the signal hr will be shown on the timer display area you are now ready to readjust the to start the operation 3 push the button again to set the time you want to start the operation 3 push the button the remote controller will show the last set time for stop operation and the signal hr will be shown on the timer display area you are now ready to reset the time to stop operation 3 push the button again to set the time you want to stop the operation 3 after setting the timer there will be a one half second delay before the remote controller transmits the signal to the air conditioner 3
- R71a e 3
- Rated voltage 3
- Reaching distance 3
- Remote controller specification 3
- Set the starting stopping time 3
- The setting time is relative time that is the time set is based on the delay of the current time 3
- Timer off 3
- Timer off off timer 3
- Timer on on timer 3
- Timer on timer on 3
- Timer setting function in 24 hours 3
- To set the stopping time 3
- Кнопки пульта ду 3
- М при напряжении 3 в 11 м 3
- Технические характеристики ду 3
- Функции ду 3
- On off button push this button to start operation push the button again to stop operation 4
- Remote controller specification 4
- And 28 c 3 fan speed button fan speed press to select auto low med and high 4 on off button press the on off button to start the air conditioner the operation indicator on the display panel of the indoor unit illuminates the operating mode is selected in accordance with the room temperature and operation starts after approximately 3 minutes if you select health mode the unit will start immediately 5
- Auto operation 5
- Comfortable temperature is between 21 c 5
- Ensure unit is plugged and power is available 1 mode select button mode press to select cool heat reverse cycle models only or health mode 2 temperature button temp set the desired temperature the most 5
- Ensure unit is plugged and power is available the operation indicator on the display panel of the indoor unit starts flashing 1 mode select button mode press to select dry 2 temperature button temp push the temp button to set the desired temperature 3 on off button press the on off button to start the air conditioner no fan speed indicator displays the indoor fan speed will be automatically selected low 5
- On off button push this button again to stop the air conditioner 5
- On off button push this button to start operation push the button again to stop operation 5
- Performance features 5
- Remote controller specification 5
- Auto on operation the timer on feature is useful when you want the unit to turn on automatically before say when you return home the air conditioner will automatically start operating at the set time 6
- Example 6
- Note the fan speed cannot be adjusted when the unit is in auto and dry mode 6
- On off button push this button again to stop the air conditioner 6
- On off button push this button to start operation push the button again to stop operation 6
- Press the timer on button the remote controller shows timer on the last auto on setting time and the signal h will be shown on the lcd display area now it is ready to reset the auto on time to start the operation 2 push the timer on button again to set desired auto on time each time you press the button the time increases by half an hour between 0 and 10 hours and by one hour between 10 and 24 hours 3 after setting the timer on there will be a one half second delay before the remote controller transmits the signal to the air conditioner then after approximately another 2 seconds the signal h will disappear and the set temperature will re appear on the lcd display window 6
- Remote controller specification 6
- Timer on 6
- To set the auto off time 1 press the timer off button the remote controller shows timer off the last auto off setting time and the signal h will be shown on the lcd display area now it is ready to reset the auto off time to start the operation 2 push the timer off button again to set desired auto off time each time you press the button the time increases by half an hour between 0 and 10 hours and by one hour between 10 and 24 hours 3 after setting the timer off there will be a one half second delay before the remote controller transmits the signal to the air conditioner then after approximately another 2 seconds the signal h will disappear and the set temperature will re appear on the lcd display window 6
- To start the air conditioner in 6 hours 1 press the timer on button the last setting of starting operation time and the signal h will show on the display area 2 press the timer on button to display 6 0h on the timer on display of the remote controller 3 wait for 0 second and the timer on indicator stops flashing and this function is activated the digital display area will show the tempera ture again 6
- When you select the timer operation the remote controller automatically transmits the timer signal to the indoor unit for the specified time therefore keep the remote controller in a location where it can transmit the signal to the indoor unit properly the effective operation time set by the remote controller for the timer function is limited to the following settings 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 and 24 6
- Sleep button function 7
- Осторожно 7
- Экономичный режим 7
- Air direction button function 8
- Cautions 8
- Reset and lock buttons function 8
- Кнопка air direction 8
- Кнопки reset и lock 8
- Осторожно 8
Похожие устройства
- Epson Perfection 1270 Инструкция по эксплуатации
- Jamo S608 HCS 3 Black Ash Инструкция по эксплуатации
- Alpicair ADI/ADO-26HPR1B Инструкция по эксплуатации
- Mirage OMD-5-HB-1 Black Gloss Инструкция по эксплуатации
- Bork VC SMN 6403 GY Инструкция по эксплуатации
- Epson Perfection 1650 Инструкция по эксплуатации
- Attitude Bravo 30 Инструкция по эксплуатации
- Thomas Power Pack 1616 Инструкция по эксплуатации
- Epson Perfection 1660 Инструкция по эксплуатации
- Mirage OMD-15-HB-1 Black Gloss Инструкция по эксплуатации
- Arcam P90/3 Инструкция по эксплуатации
- Epson Perfection 1670 Инструкция по эксплуатации
- Mirage OMD-28-HB-1 Black Gloss Инструкция по эксплуатации
- Zanussi FLS 1083 Инструкция по эксплуатации
- Epson Perfection 2400 Инструкция по эксплуатации
- Mirage OMD-C1-HB-1 Black Gloss Инструкция по эксплуатации
- Attitude Alpha Sub 100 Инструкция по эксплуатации
- BBK DL385SI Инструкция по эксплуатации
- Epson Perfection 2480 Инструкция по эксплуатации
- Attitude Bravo Sub 100 Инструкция по эксплуатации
