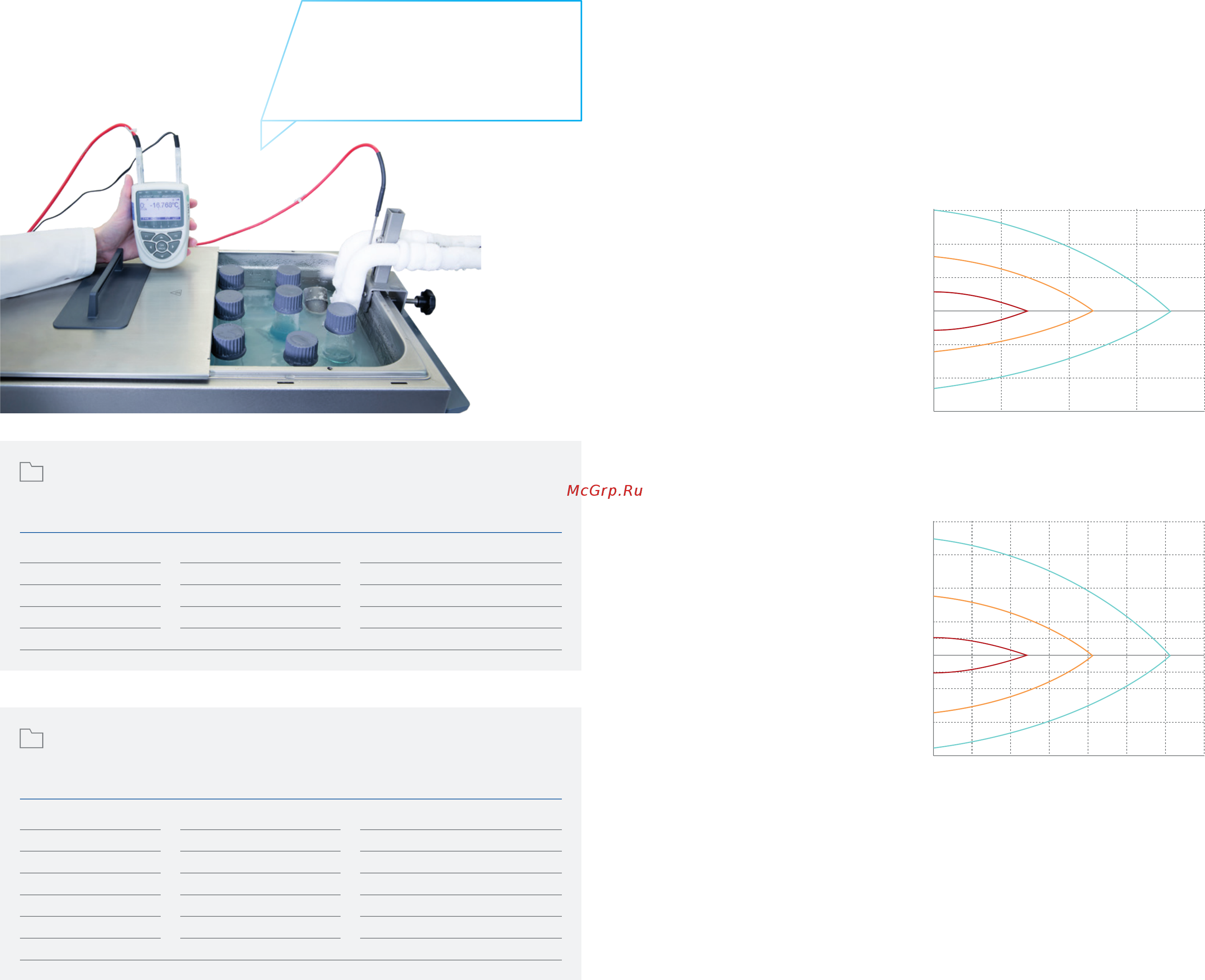

Pump curve: RC 2 basic & control
Measurement in accordance with DIN 12876-2 with
water at + 20 °C, closed pump circuit
Pump curve: RC 5 basic & control
Measurement in accordance with DIN 12876-2 with
water at + 20 °C, closed pump circuit
IKA RECIRCULATING CHILLERS CAN ALSO
COOL OPEN BATHS WITHOUT PROBLEMS
DOWN TO LOW TEMPERATURES DUE TO
A POWERFUL PRESSURE/SUCTION PUMP.
THE EXAMPLE SHOWS A BATH THAT HAS
BEEN COOLED TO - 17 °C WITH THE RC 2.
TECHNICAL DATA
/// RC 2 basic, Ident. No. 0004171000 | RC 2 control, Ident. No. 0004173000
RC 5 basic, Ident. No. 0004181000 | RC 5 control, Ident. No. 0004183000
COOLING POWER
/// RC 2 basic, Ident. No. 0004171000 | RC 2 control, Ident. No. 0004173000
RC 5 basic, Ident. No. 0004181000 | RC 5 control, Ident. No. 0004183000
RC 2 basic | control RC 5 basic | control
Cooling power (at + 20 °C) 400 W 1,400 W
Working temperature range
- 20 °C to RT | - 30 °C to RT - 30 °C to RT
Max. flow rate (at 0 bar)
18 l/min 31 l/min
Pump power (pressure)
0.3 bar 0.61 bar
Pump power (suction)
0.2 bar 0.45 bar
Temperature RC 2 basic | control RC 5 basic | control
+ 40 °C – 1,700 W
+ 20 °C 400 W 1,400 W
+ 10 °C 370 W 1,100 W
0 °C 320 W 950 W
- 10 °C 240 W 600 W
- 20 °C 130 W 350 W
- 30 °C – 200 W
Flow rate [l/min]
Pressure/suction [bar]
0.5
0.7
0.3
0.1
- 0.1
- 0.3
- 0.5
0 5 10
2015 25
30 35
0
2,000 rpm
4,600 rpm3,200 rpm
Flow rate [l/min]
Pressure/suction [bar]
0.3
0.2
0.1
- 0.1
- 0.2
- 0.3
0 5
10 15 20
0
3,200 rpm
2,000 rpm
1,000 rpm
46
47
Temperature control productsTemperature control products
