Ebara CDA 2.00T [3/4] Dual impeller centrifugal electric pumps

Your Life, our Quality. Worldwide. Commercial

The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.

CDA

DUAL IMPELLER CENTRIFUGAL ELECTRIC PUMPS

in cast iron

S

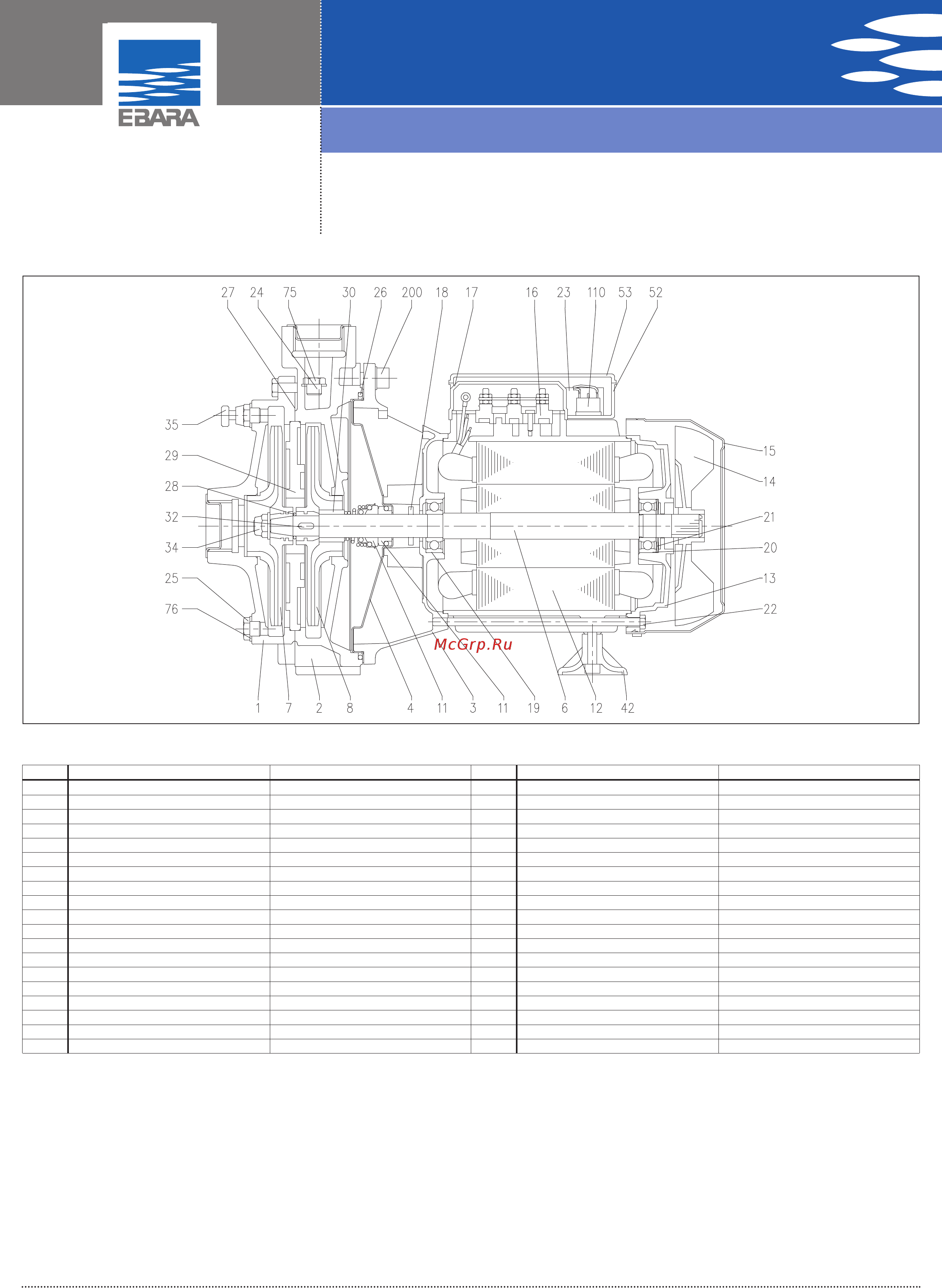

ECTIONAL VIEW

MATERIALS TABLE

Ref. Name Material Ref. Name Material

8 Impeller [6] 29 Intermediate disc Cast iron

11 Mechanical sealing Carbon/Ceramic/NBR 30 Seal spacer Brass

12 Motor case - 32 Key AISI 316

13 Motor cover Aluminium 34 Impeller nut [7] AISI 304

14 Fan PP 35 Bleed valve Brass

15 Fan cover Galvanised Fe P04 42 Foot PP

16 Terminal box - 52 Capacitor-holder box [2] ABS

17 Terminal box cover [1] Aluminium 53 Capacitor-holder box cover [8] ABS

18 Spray protector ring NBR 75 Washer Aluminium

19 Bearing (pump side) - 76 Washer Aluminium

[4]= AISI 304 for CDA 0.75 - 1.00, cast iron integrated Motor support for the rest of the range

[5]= AISI 303 (part in contact with the liquid) for CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00, AISI 304 (part in contact with the liquid) for the rest of the range

[6]= PPE+PS reinforced with fibreglass for CDA 0.75 - 1.00, brass for the rest of the range

[7]= Versione with impeller brass only

[8]= With gasket in NBR only for CDA 0.75 - 1.00 single phase models

[9]= Version CDA 1.50 - 2.00 single phase only
