7
ENGLISH

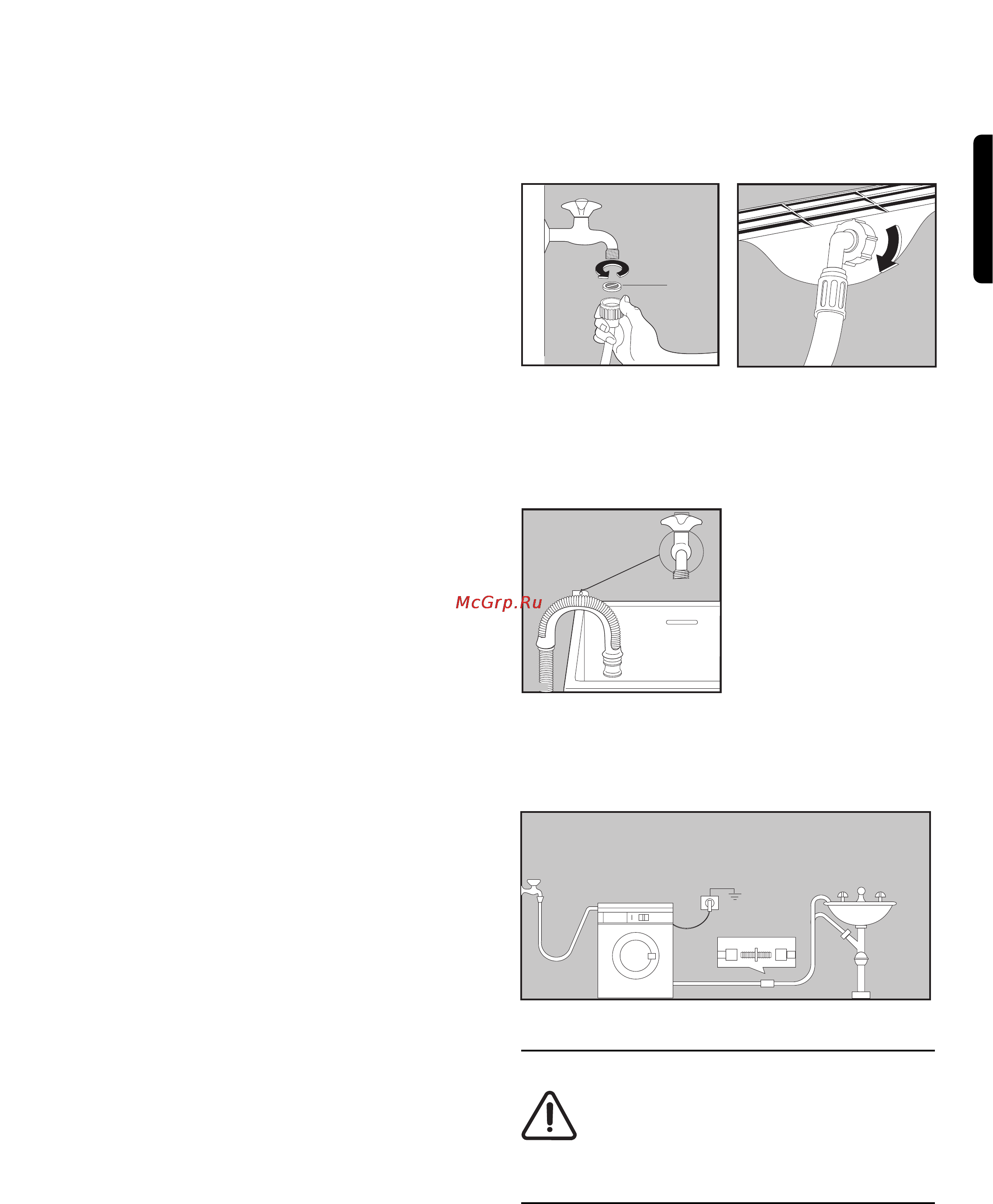

Water inlet
Connect the water inlet hose to a tap with a 3/4"
thread after having inserted the small filter “A”
supplied with the machine.
The other end of the inlet hose which connects
to the machine can be turned in any direction.
Simply loosen the fitting, rotate the hose and
retighten the fitting, making sure there are no
water leaks.
The inlet hose must not be lengthened. If it is
too short and you do not wish to move the tap,
you will have to purchase a new, longer hose
specially designed for this type of use.
Water drainage
The end of the drain hose can be positioned in
three ways:
Hooked over the edge of a sink using the
plastic hose guide supplied with the
machine. In this case, make sure the end
cannot come unhooked when the machine is
emptying.
This could be done by tying it to the tap with a
piece of string or attaching it to the wall.
In a sink drain pipe branch. This branch must
be above the trap so that the bend is at least
60 cm above the ground.
Directly into a drain pipe at a height of not
less than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain
pipe must be larger than the outside diameter of
the drain hose.
The drain hose must not be kinked. Run it along
the floor; only the part near the drainage point
must be raised.
Electrical connection
This machine is designed to operate on a
220-230 V, single-phase, 50 Hz supply.
Check that your domestic electrical installation
can take the maximum load required (1.75 kW),
also taking into account any other appliances in
use.
Connect the machine to an earthed socket,
in accordance with current wiring regulations.
A
P0003
P0022
P0023
P0021
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the above
safety precaution.
In the event of replacing the electric
cable, please contact our nearest
Service Centre.
