284-0877-01
CC-2011E 7
English

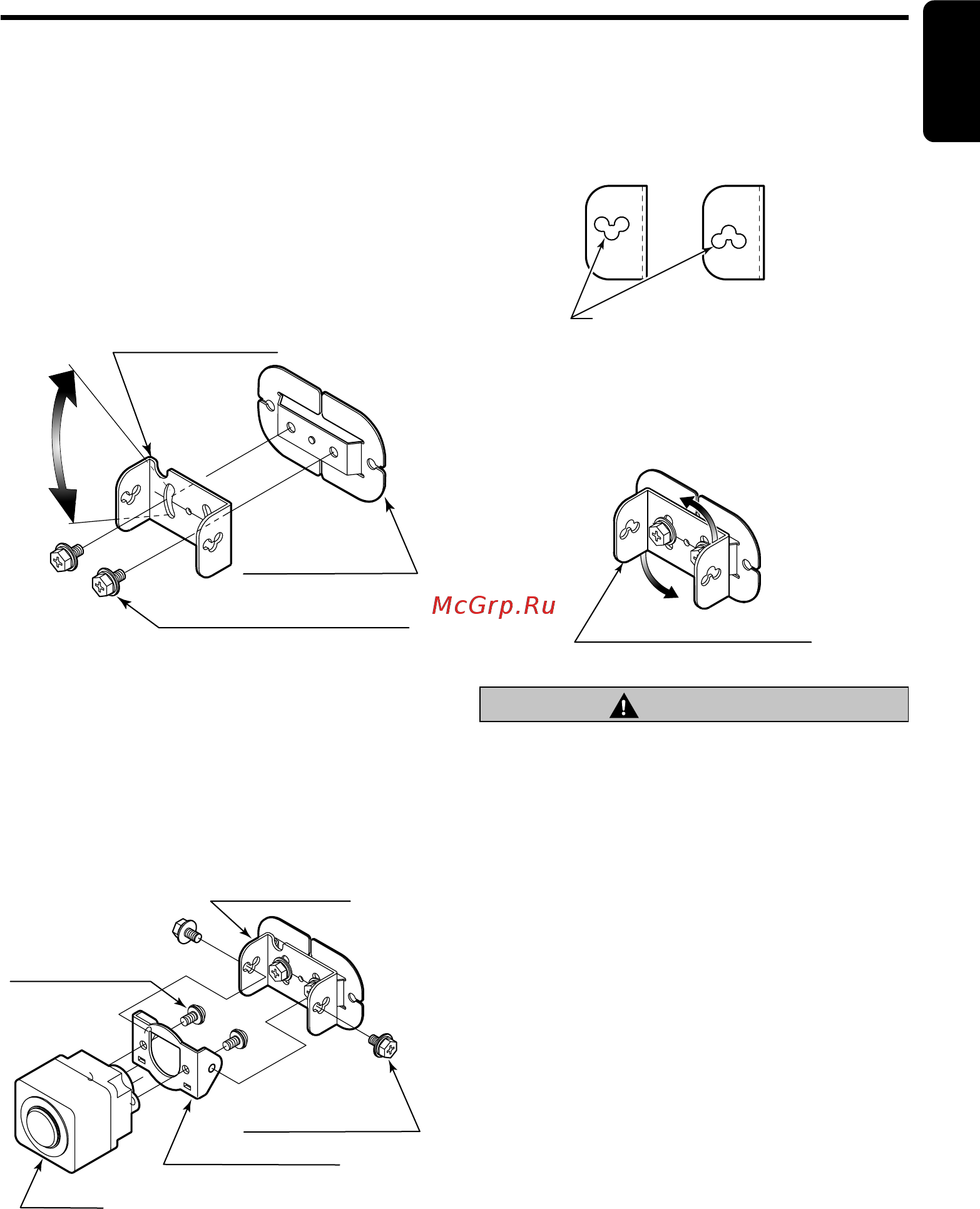

Installing/Wiring the camera
2. Install mounting bracket A
Using the supplied 2 installation screws (hex
head M3 x 6), fasten bracket A to bracket B.
• While tightening the screws, adjust the angle
of the bracket A to produce the optimum
camera angle.
To mount the camera at a level angle, mount
bracket A’s engraved leveling line (——) even
with the center of the installation screws when
tightening.
Mounting bracket A
Mounting bracket B
Installation screws (hex head)
Angle adjustment direction
3. Attach mounting bracket C to
camera
Using the two pan head installation screws
(M3 x 6), attach the camera to mounting bracket
C, using the two hex head installation screws
(M3 x 6) as shown, attach the camera and
bracket C assembly to mounting bracket A.
Mounting bracket A
Installation screws
(hex head)
Mounting bracket C
Camera
Installation screws
(pan head)
• Adjust the camera angle as desired when
tightening the screws for mounting bracket C.
The camera’s position can be adjusted by
selecting from among the three sets of holes
on the sides of mounting bracket A.
or
Use one of the three holes.
In addition, the mounting bracket A
can be inverted (mounted upside
down) if needed to provide additional
range of camera installation.
Invert mounting bracket A
• When adjusting the camera position, do
not allow the camera cable to be
excessively stretched or loose.
• Periodically check the tightness of the
installation screws and retighten if
necessary.
CAUTION
